Removing headrest

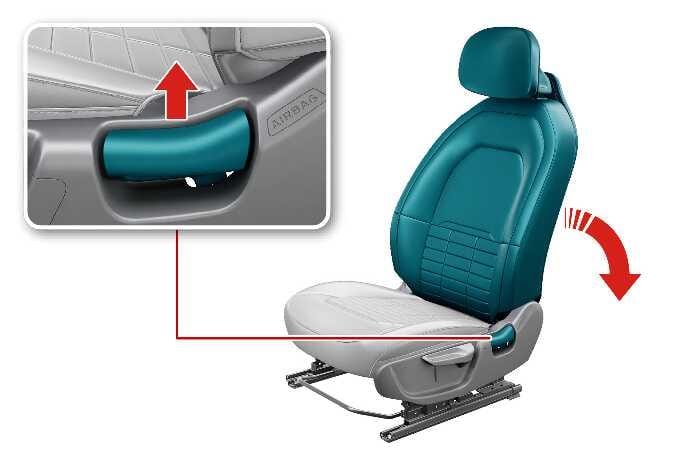

Figure 1. Type A
N_SP327_B06_026_1

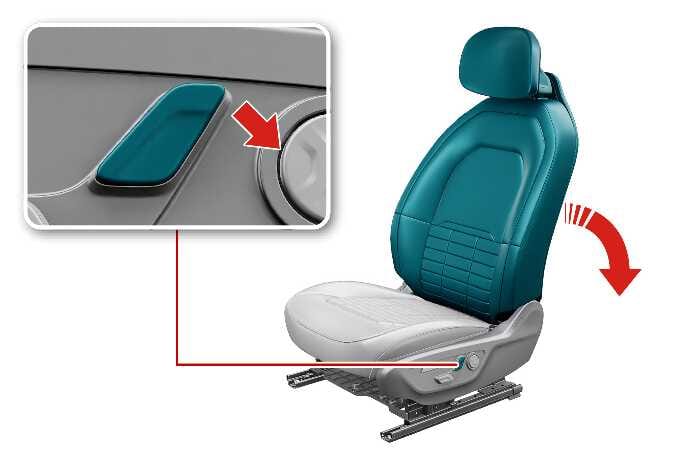

Figure 2. Type B
N_SP327_B06_027_1

To remove the headrest:

  1. Recline the seatback with the recline lever or switch.
  2. Push and hold the release button (1). Raise headrest as far as it can go.
    N_SP327_C06_013_E
  3. Insert a short, flat object (such as a small flat-head screwdriver) into the opening on the inside base of the left post (2) and pull the headrest upward.
    WARNING

    Removing headrest

    NEVER allow anyone to ride in a seat with the headrest removed or reversed. Headrests can provide critical neck and head support in a crash.
