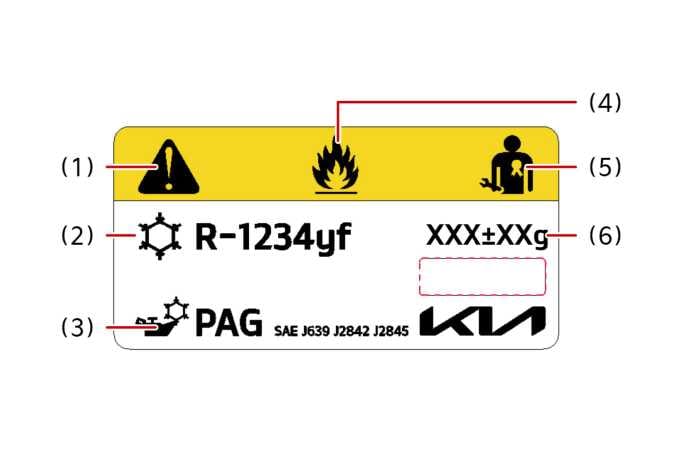

Air conditioning (A/C) refrigerant label

N_SP327_C08_014

The A/C refrigerant label in the vehicle may differ from the illustration.

Each symbol and specification on the A/C refrigerant label is represented below:

  1. Caution

  2. Classification of refrigerant

  3. Classification of compressor lubricant

  4. Flammable refrigerant

  5. Requires a registered technician to service the A/C system

  6. Amount of refrigerant

Figure 1. Type A
N_SP327_C08_013_1
Figure 2. Type B
N_SP327_D03_004_1_A

Refer to Refrigerant label for more information on the location of the air conditioning refrigerant label.
