Detecting sensor(s)

Figure 1. Front view
N_SP327_C10_001

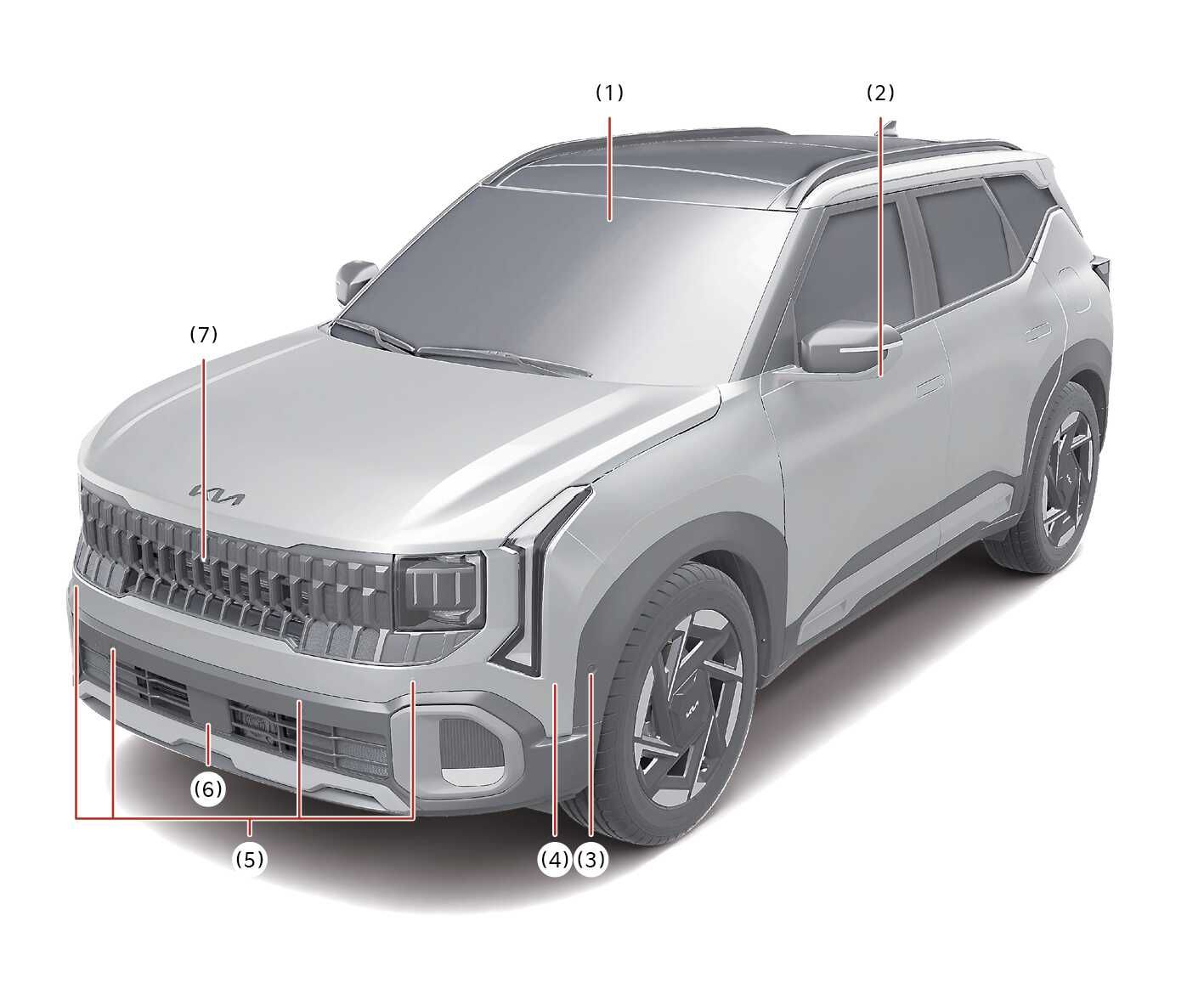

Figure 2. Front view (X-Line): (if equipped)
N_SP327_C10_002

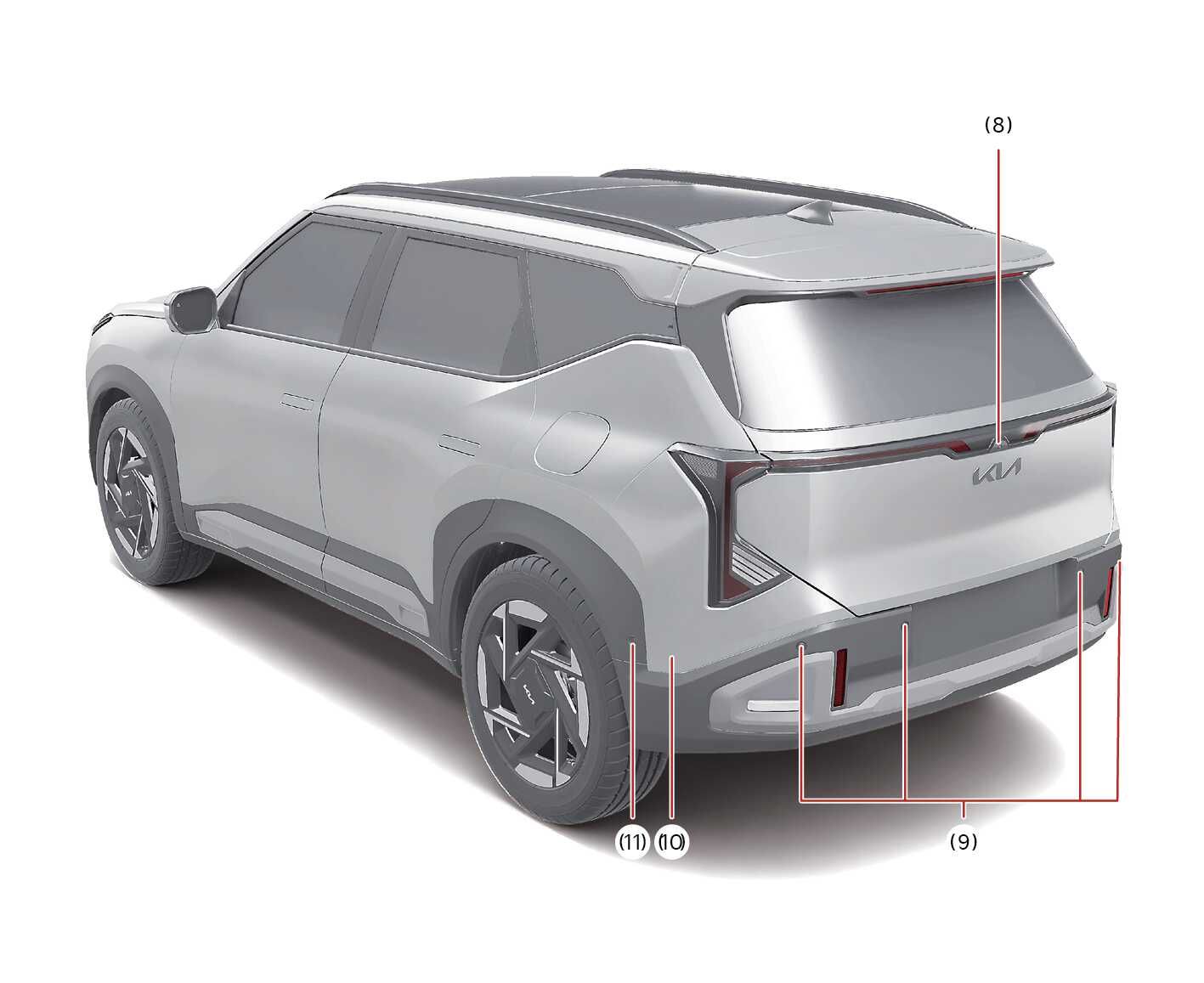

Figure 3. Rear view
N_SP327_C10_003

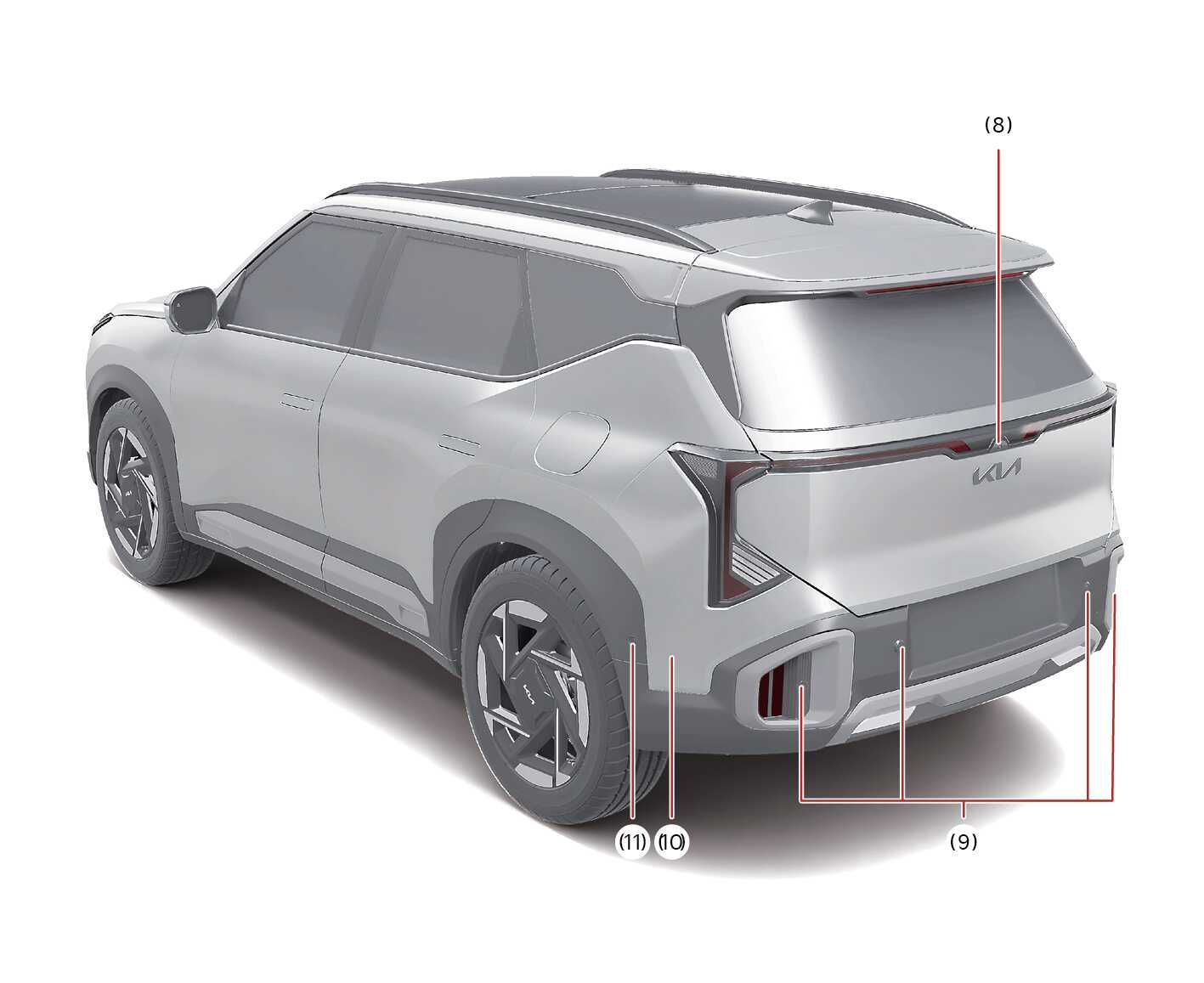

Figure 4. Rear view (X-Line): (if equipped)
N_SP327_C10_004

Refer to the picture above for the detailed location of the detecting sensors.

: if equipped

No

Sensor

Function

(1)

Front view camera

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Lane Keeping Assist (LKA)

  • Driver Attention Warning (DAW)

  • Smart Cruise Control (SCC)

  • Lane Following Assist (LFA)

  • Highway Driving Assist (HDA)*

  • High Beam Assist (HBA)

(2)

Wide-side view camera*

  • Blind-Spot View Monitor (BVM)*

  • Surround View Monitor (SVM)*

(3)

Front side ultrasonic sensors*

  • Parking Distance Warning (PDW)*

(4)

Front corner radar*

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(5)

Front ultrasonic sensors

  • Parking Distance Warning (PDW)*

(6)

Front radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Smart Cruise Control (SCC)

  • Highway Driving Assist (HDA)*

(7)

Wide-front view camera*

  • Surround View Monitor (SVM)*

(8)

Wide-rearview camera

  • Rear View Monitor (RVM)*

  • Surround View Monitor (SVM)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(9)

Rear ultrasonic sensors

  • Parking Distance Warning (PDW)*

  • Reverse Parking Collision-Avoidance Assist (PCA)*

(10)

Rear corner radar

  • Forward Collision-Avoidance Assist (FCA) (Sensor Fusion)

  • Blind-Spot Collision-Avoidance Assist (BCA)*

  • Safe Exit Warning (SEW)*

  • Highway Driving Assist (HDA)*

  • Rear Cross-Traffic Collision-Avoidance Assist (RCCA)*

(11)

Rear side ultrasonic sensors*

  • Parking Distance Warning (PDW)*
