Display and control

The Highway Driving Assist operation status is visible in the Driving Assist view on the instrument cluster. For more information, refer to LCD display.

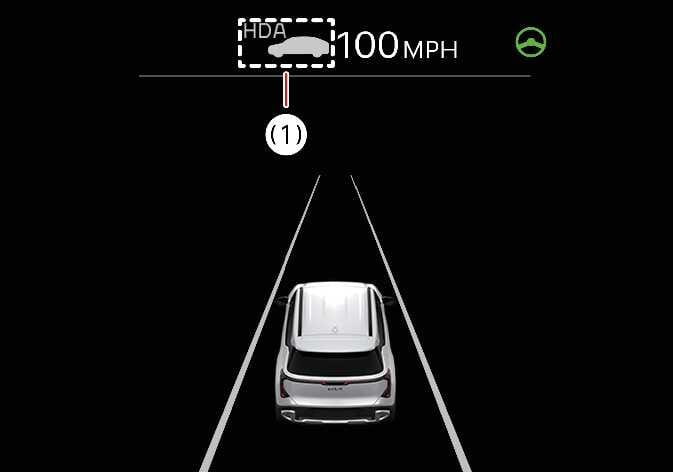

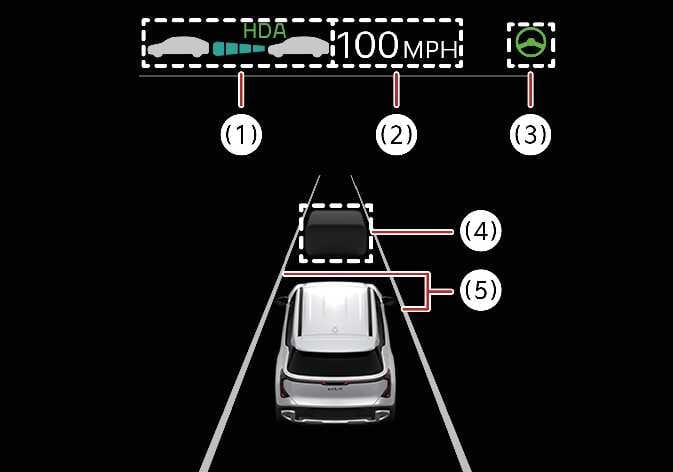

Figure 1. Standby State N_SP327_C00_014_A	Figure 2. Operating State N_SP327_C00_013_A

The Highway Driving Assist status displays on the instrument cluster as follows:

Highway Driving Assist indicator, whether there is a vehicle ahead and the selected distance level is displayed.
- Green: Operating
- Gray: Standby
- White blinking: Accelerator engaged
- Unlit: OFF
Set speed
Whether there is a vehicle ahead and the selected headway
Whether the lane is detected or not
Lane Following Assist indicator

TIP

For more information about the display symbols and colors, refer to Lane Following Assist (LFA) and Smart Cruise Control (SCC 2).
The images or colors may display differently depending on the specifications of the instrument cluster or theme.
