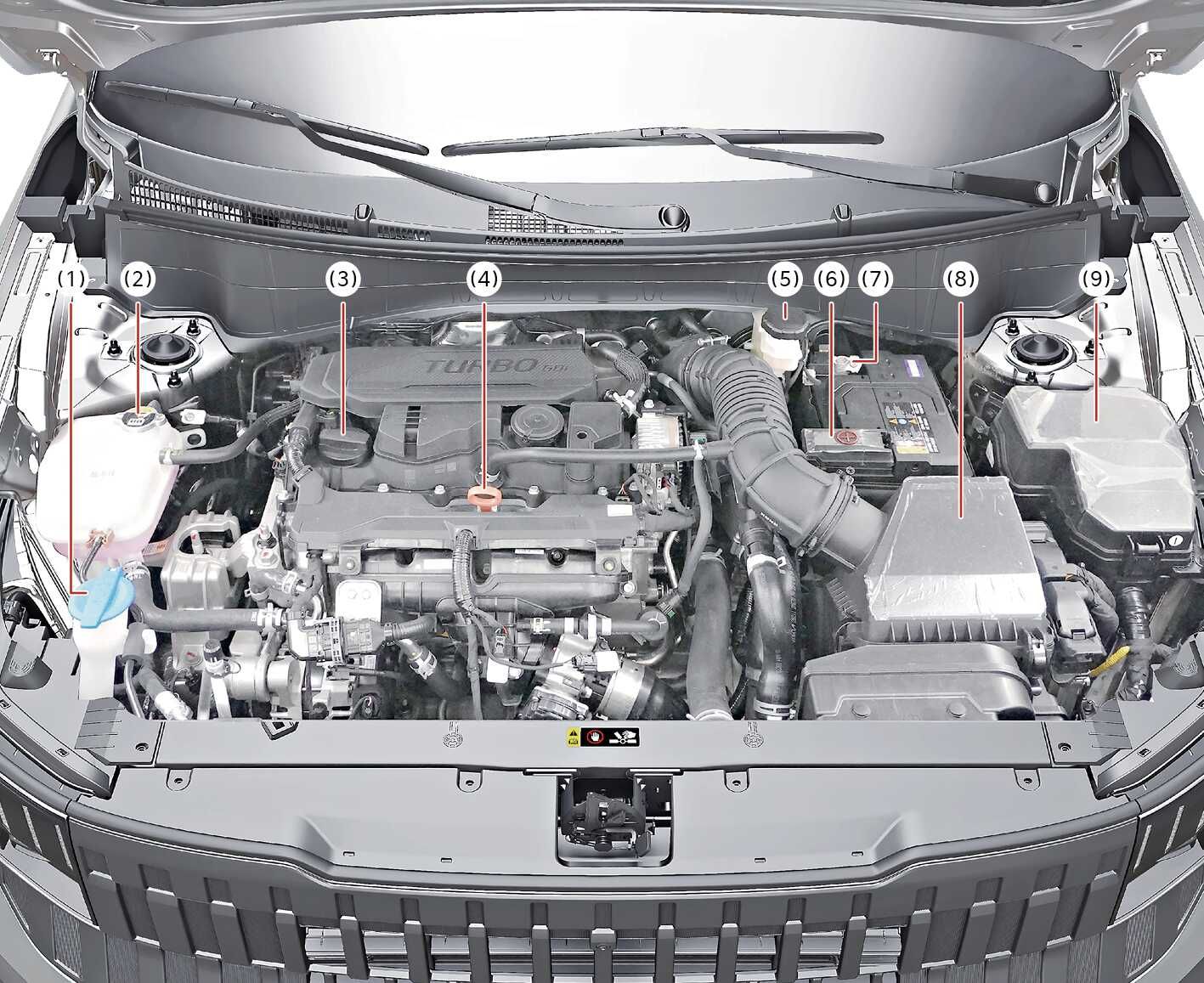

N_SP327_C02_005

The actual engine compartment in your Kia may differ from the illustration.

1. Windshield washer fluid reservoir

2. Engine coolant reservoir

3. Engine oil filler cap

4. Engine oil dipstick

5. Brake fluid reservoir

6. Positive battery terminal

7. Negative battery terminal

8. Air cleaner

9. Fuse box

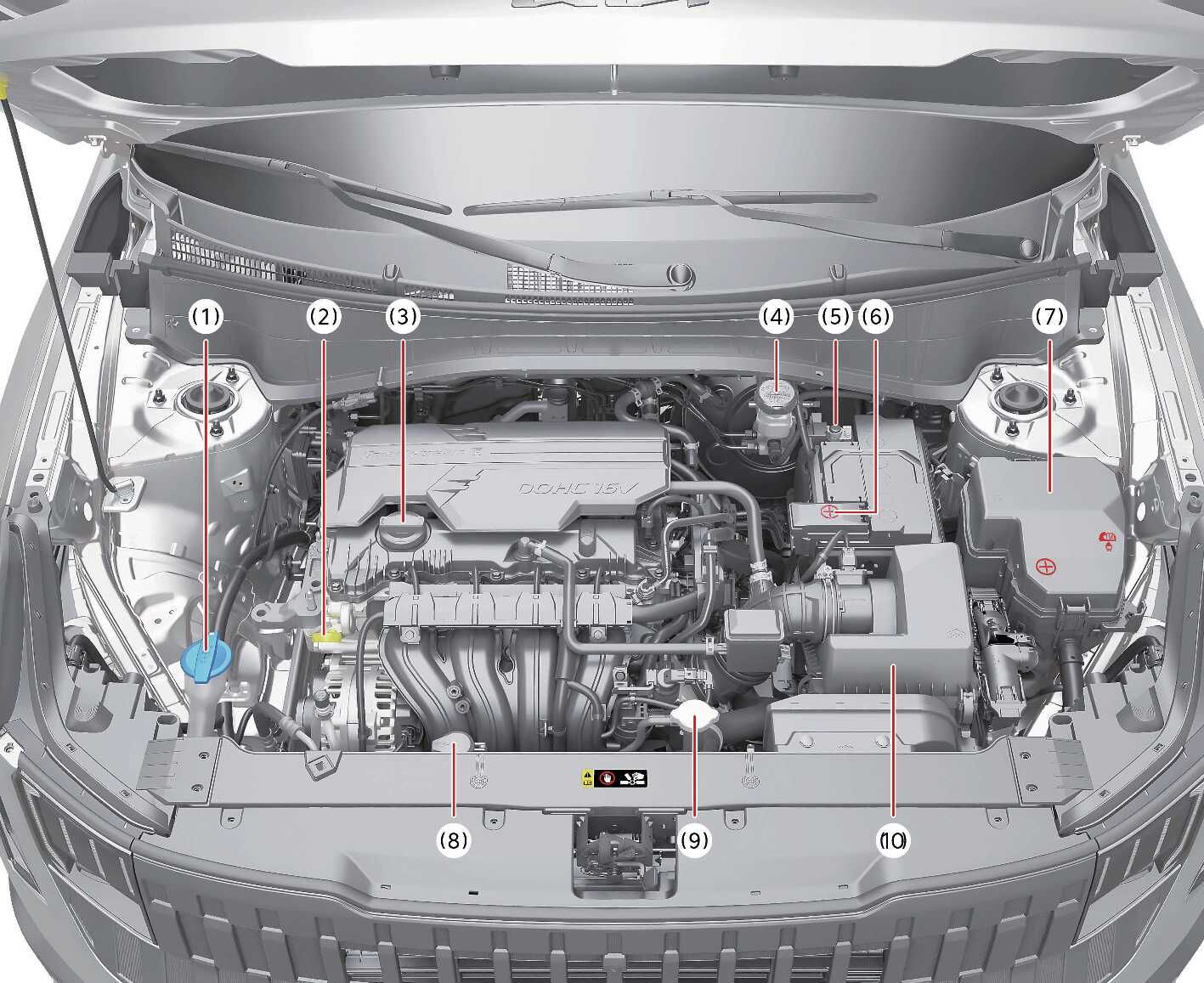

N_SP327_D12_001_E

The actual engine compartment in your Kia may differ from the illustration.

1. Windshield washer fluid reservoir

2. Engine oil dipstick

3. Engine oil filler cap

4. Brake fluid reservoir

5. Negative battery terminal

6. Positive battery terminal

7. Fuse box

8. Radiator cap

9. Engine coolant reservoir

10. Air cleaner
