Replacing the air cleaner filter

Replace the air cleaner filter when necessary, and do not wash it.

You can clean the filter when inspecting the air cleaner compartment. Use compressed air to clean the filter.

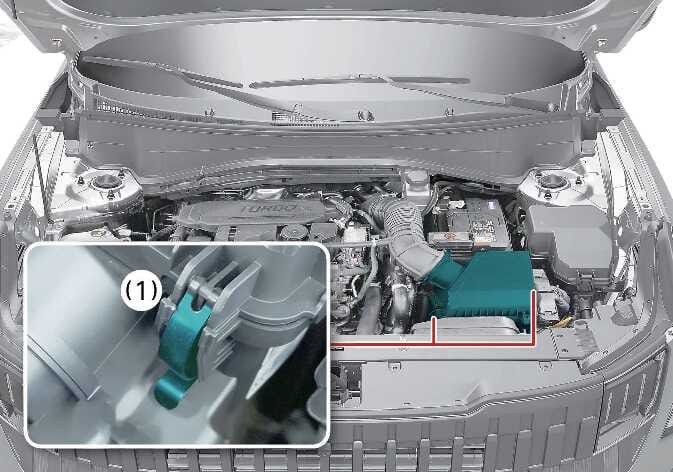

  1. Loosen the air cleaner cover attaching clips (1) and open the cover.
    N_SP327_D12_061_1

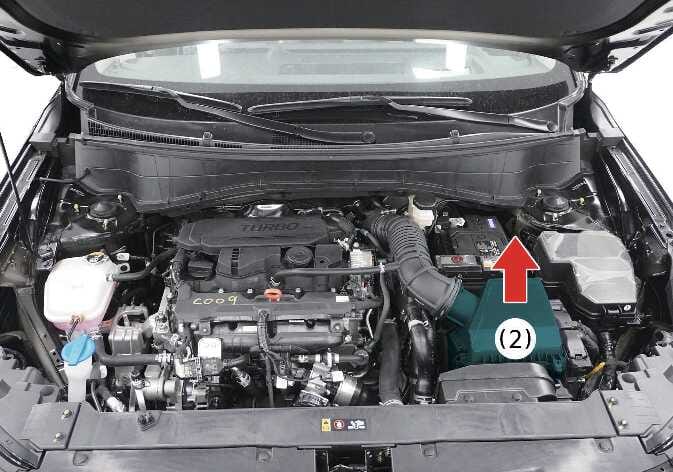

  2. Pull up the air cleaner cover (2) and open it.
    N_SP327_D12_015_2
  3. Wipe the inside of the air cleaner filter cover.

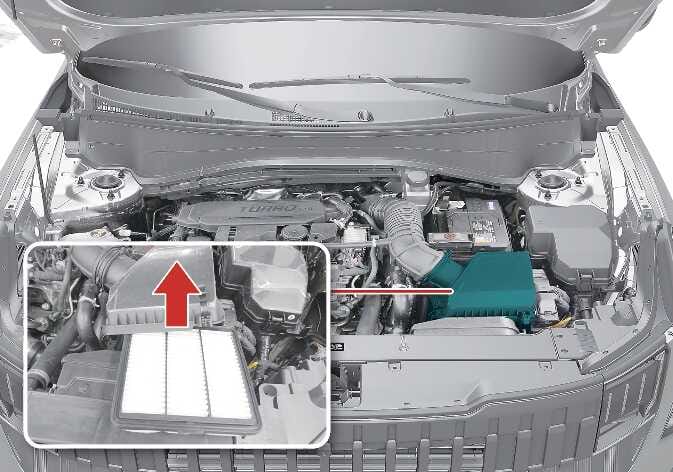

  4. Replace the air cleaner filter.
    N_SP327_D12_059_1
  5. Reassemble the air cleaner filter parts and cover in the reverse order of disassembly.

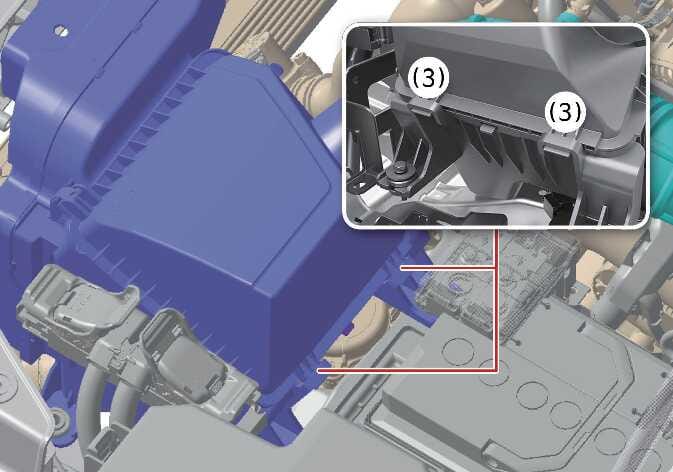

  6. Install the air cleaner cover by first inserting the hinge part (3) correctly, and then attaching the clips.
    N_SP327_D12_057_1

Replace the filter according to the Maintenance Schedule.

If you drive your vehicle in extremely dusty or sandy areas, replace the filter more often than the usual recommended intervals. (Refer to Scheduled maintenance service.)

NOTE

  • Do not drive with the air cleaner filter removed. This results in excessive engine wear.

  • When removing the air cleaner filter, make sure that dust or dirt does not enter the air intake, as this can cause damage.

  • Use genuine replacement parts from a Kia dealer.
