Front wiper blade replacement

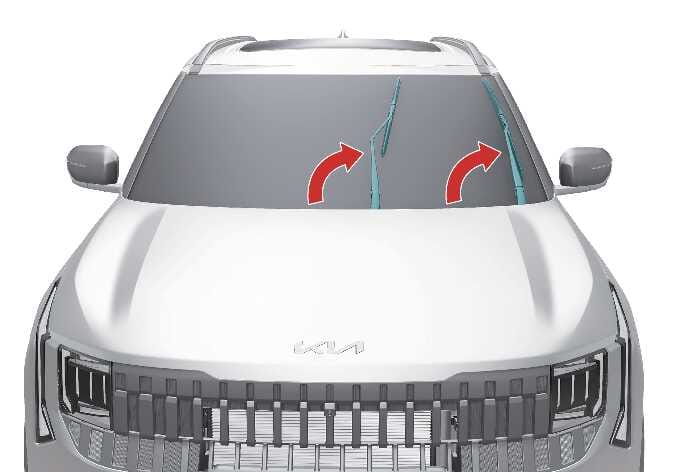

N_SP3i26_B12_005_1_E

To replace the wiper blade, lift the arm first and replace the windshield wiper blades as per procedure.

NOTE

Wiper arms

Do not allow the wiper arm to fall against the windshield, as it may crack or chip the glass.

  1. Raise the wiper arm.
  2. For Type A, lift up the wiper blade clip. Then pull down the blade assembly and remove it.
    Figure 1. Type A

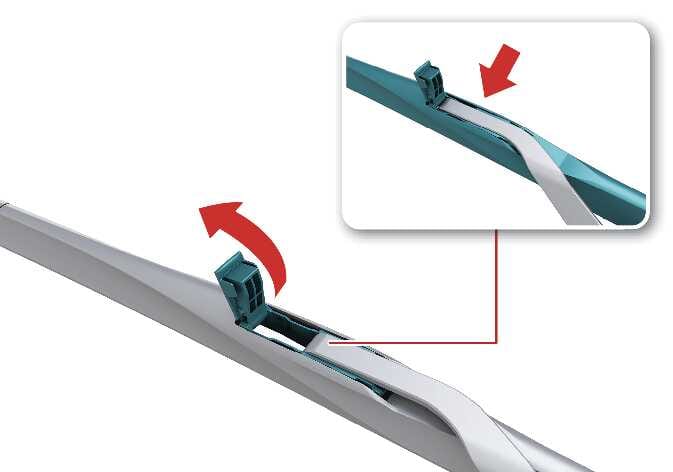

    N_SP3i26_B12_006_1_E
  3. For Type B, rotate the wiper blade in the direction of the arrow.
    Figure 2. Type B

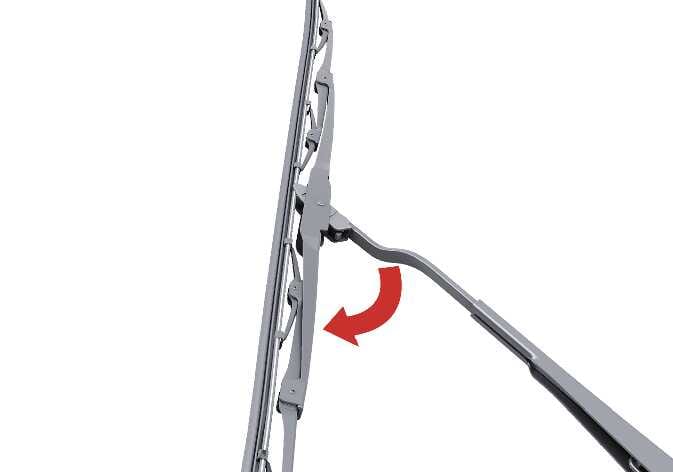

    N_SP3i26_B12_090_I
  4. For Type A, install the new blade assembly.
    Figure 3. Type A

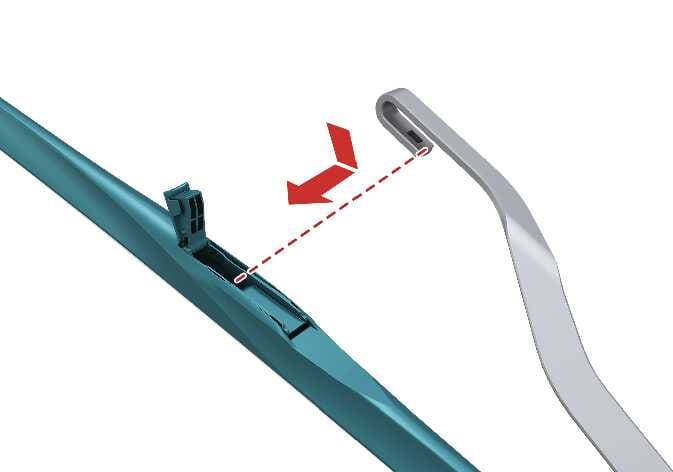

    N_SP3i26_B12_007_E
  5. For Type B, remove the front wiper blade by pressing the lock pin in the direction of the arrow.
    Figure 4. Type B

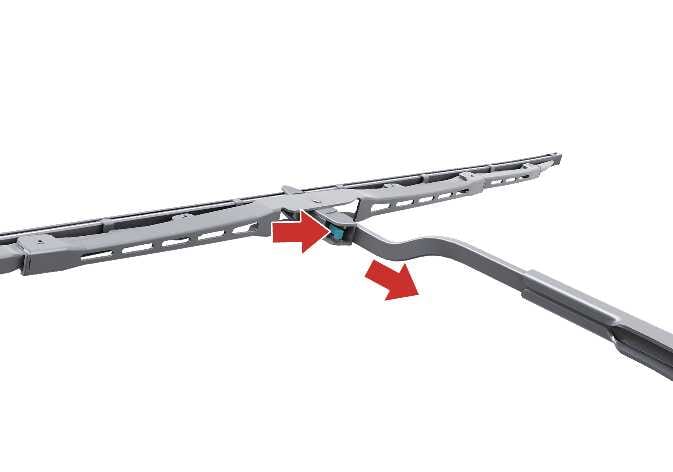

    N_SP3i26_B12_091_I
    Figure 5. Type B

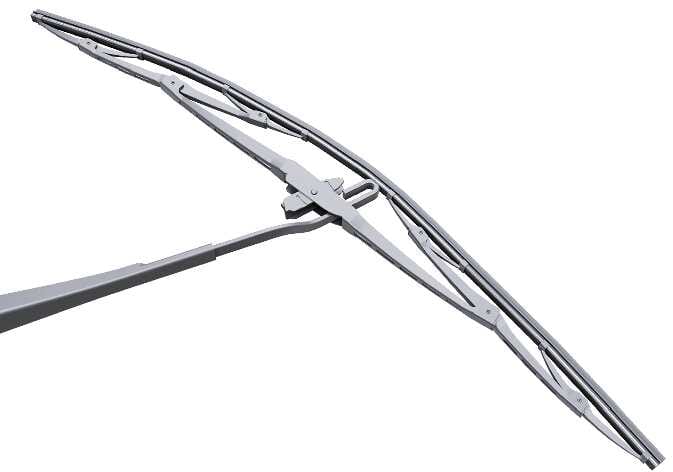

    N_SP3i26_B12_092_I
  6. Make sure that both blade assemblies are installed firmly by trying to pull them slightly.
  7. Return the wiper arms to the windshield.
  8. Start the vehicle to the ON position to return the wiper arms to their normal operating position.
