Fuse/relay panel description
Refer to the owner's manual for fuse/relay names and capacities.
While the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

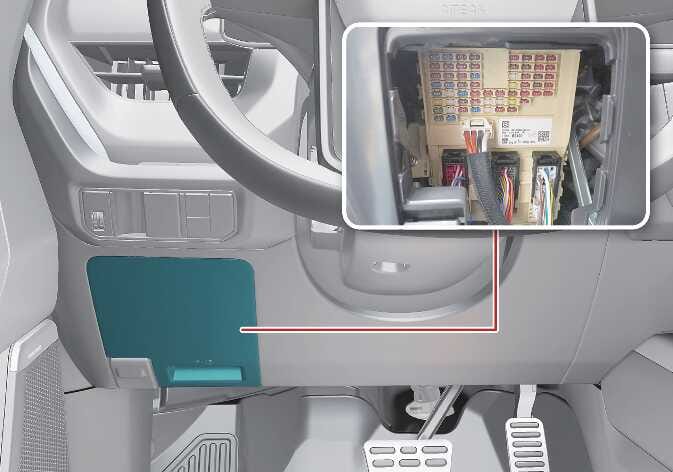

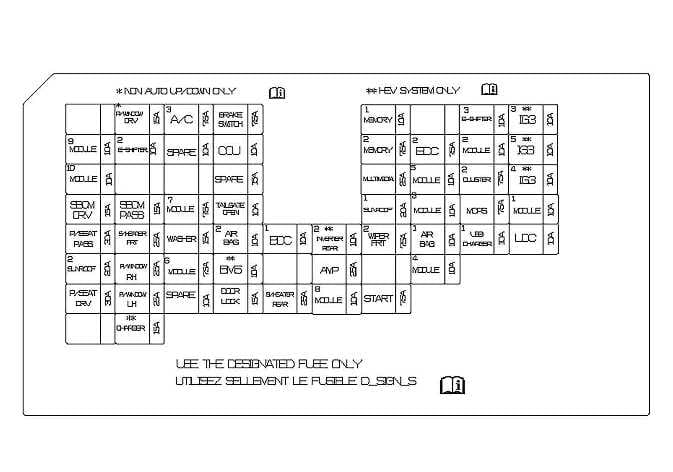

Driver side fuse panel
 N_SP327_D12_041_1 |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
FUSE NUMBER |
|---|---|---|---|
|
RESERVE |
- |
Not Used |
FUSE01 |
|
P/WINDOW DRV |
15A |
POWER WINDOW MOTOR |
FUSE02 |
|
A/C3 |
7.5A |
DATC MTC INCAR SENSOR DUST SENSOR PTC HEATER 1,2 Relay Coil E-Compressor (HEV) |
FUSE03 |
|
BRAKE SW |
7.5A |
BDC (Body Domain Controller) Stop Lamp Switch |
FUSE04 |
|
MEMORY1 |
10A |
CLUSTER BDC DATC MTC WPC (Wireless Power Charger) HUD ADAS Parking ECU (Advanced Driver Assistance System Parking ECU) ADP BUILT IN CAM CONER RADAR |
FUSE05 |
|
RESERVE |
- |
Not Used |
FUSE06 |
|
E-SHIFTER3 |
10A |
SBW Lever (Shift By Wire Lever) VPC(HEV) SCU(ICE) |
FUSE07 |
|
IG3_3 |
10A |
BMS(HEV) E-AWD REAR INVERTER(HEV) |
FUSE08 |
|
MODULE9 |
10A |
UWB AVN KEYBOARD ICC UNIT (In Cabin Camera Unit) OBD (On Board Diagnostic) Blower motor Relay Coil Rain Sensor |
FUSE09 |
|
E-SHIFTER2 |
10A |
SBW Lever (Shift By Wire Lever) SCU |
FUSE10 |
|
SPARE |
10A |
SPARE |
FUSE11 |
|
CCU |
10A |
CCU (Communication Central Unit) |
FUSE12 |
|
MEMORY2 |
7.5A |
MOOD LAMP AVN KEYBOARD ETCS |
FUSE13 |
|
BDC2 |
7.5A |
BDC (Body Domain Controller) |
FUSE14 |
|
MODULE2 |
10A |
CCU (Communication Central Unit) Stop Lamp Switch |
FUSE15 |
|
IG3_5 |
10A |
V2LC (HEV) |
FUSE16 |
|
MODULE10 |
10A |
DCU (Data Connectivity Unit) |
FUSE17 |
|
RESERVE |
- |
Not Used |
FUSE18 |
|
RESERVE |
- |
Not Used |
FUSE19 |
|
SPARE |
15A |
SPARE |
FUSE20 |
|
MULTIMEDIA |
25A |
ccNC (connected car Navigation Cockpit) |
FUSE21 |
|
MODULE5 |
10A |
CONSOLE SWITCH Inside Mirror DATC MTC OHCL_PAB+ETCS CRASH PAD SWITCH HLLD ICC UNIT (In Cabin Camera Unit) OBD (On Board Diagnostic) ccNC (connected car Navigation Cockpit) CONSOLE SWITCH UPPER External Amplifier POWER SEAT ECU HEAT_VENT_SW_PASS BUILT IN CAM ADP POWER WINDOW SWITCH REAR IMS SWITCH |
FUSE22 |
|
CLUSTER |
7.5A |
CLUSTER HUD (Head Up Display) |
FUSE23 |
|
IG3_4 |
10A |
CCU (Communication Central Unit) |
FUSE24 |
|
SBCM DRV |
15A |
SBCM DRV |
FUSE25 |
|
SBCM PASS |
15A |
SBCM PASS |
FUSE26 |
|
MODULE7 |
7.5A |
P_LBM (Parking Lithum Battery Module) |
FUSE27 |
|
TAILGATE OPEN |
10A |
Tailgate Latch Actuator |
FUSE28 |
|
SUNROOF1 |
20A |
Sunroof motor (Front) |
FUSE29 |
|
MODULE3 |
10A |
Power window switch DRV |
FUSE30 |
|
MDPS2 |
7.5A |
R-MDPS (Rack-Motor Driven Power Steering) |
FUSE31 |
|
MODULE1 |
10A |
ccNC (connected car Navigation Cockpit) DCU (Data Connectivity Unit) AVN KEY BOARDBDC (Body Domain Controller) CCU (Communication Central Unit) BDC AMP BUILT IN CAM ADP ADAS PARK ECU BMS |
FUSE32 |
|
SPRE |
30A |
SPARE |
FUSE33 |
|
S/HEATER FRT |
25A |
Driver and Passenger Seat Warmer/Ventilation |
FUSE34 |
|
WASHER |
15A |
Washer Motor |
FUSE35 |
|
AIR BAG 2 |
10A |
ACU |
FUSE36 |
|
BDC1 |
10A |
UWB (Ultra Wide Band) BDC (Body Domain Controller) SMK |
FUSE37 |
|
INBERTER REAR |
10A |
EAWD REAR INVERTER |
FUSE38 |
|
WIPER FRT2 |
7.5A |
FRONT WIPER |
FUSE39 |
|
AIR BAG1 |
10A |
ACU ODS (Occupant Detection SystemU |
FUSE40 |
|
USB CHARGER1 |
10A |
USB CHARGER |
FUSE41 |
|
SPRE |
10A |
SPARE |
FUSE42 |
|
SUNROOF2 |
20A |
Sunroof motor (REAR) |
FUSE43 |
|
P/WINDOW RH |
25A |
Power Window Safety ECU Passenger & Rear RH |
FUSE44 |
|
MODULE6 |
7.5A |
BDC (Body Domain Controller) |
FUSE45 |
|
BMS |
10A |
BMS(HEV) |
FUSE46 |
|
RESERVE |
- |
Not Used |
FUSE47 |
|
AMP |
25A |
External Amplifier (Merdian) |
FUSE48 |
|
RESERVE |
- |
Not Used |
FUSE49 |
|
MODULE4 |
10A |
CONSOLE SWITCH C/PAD SWITCH MULTIFUNCTION SWITCH ADAS DRV CONER RADAR FRONT CAMERA |
FUSE50 |
|
P/SEAT DRV |
30A |
Drv Power Seat |
FUSE51 |
|
P/WINDOW LH |
25A |
Power Window Safety ECU Drv & Rear LH |
FUSE52 |
|
SPARE |
10A |
SPARE |
FUSE53 |
|
DOOR LOCK |
15A |
Door Lock/Unlock Actuator |
FUSE54 |
|
S/HEATER RR |
25A |
REAR SEAT WARMER |
FUSE55 |
|
MODULE8 |
10A |
PTGM VESS FRONT CAMERA POWER SEAT DRV/PASS AAF |
FUSE56 |
|
START |
7.5A |
BDC (Body Domain Controller) Start signal (ECU/BDC) |
FUSE57 |
|
RESERVE |
- |
Not Used |
FUSE58 |
|
CHARGER |
15A |
V2LC (HEV) |
FUSE59 |

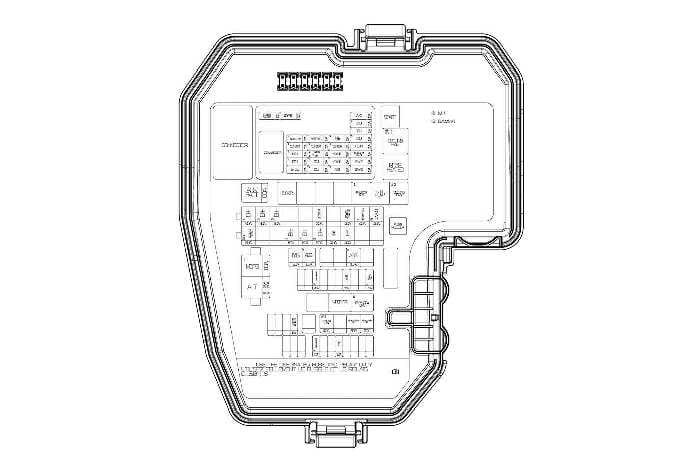

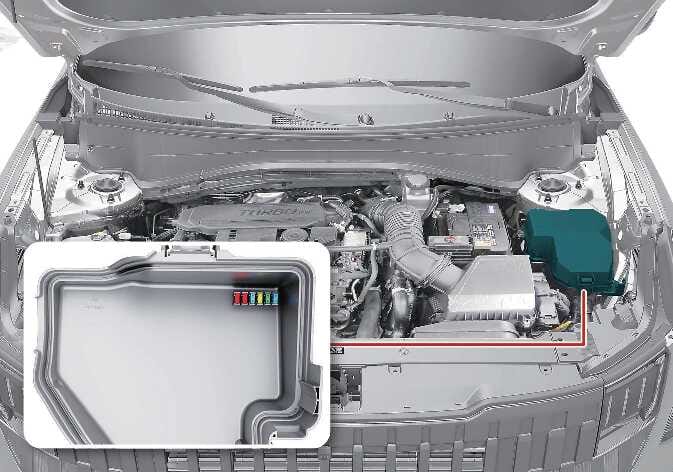

Engine compartment fuse panel
 N_SP327_D12_056_1 |
|
No |
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
G6_1_1 |
AUX BATT |
S/B LP 60A |
P-LBM |
|
G16_1_1 |
RESERVE |
- |
NOT USED |
|
G16_1_2 |
RESERVE(ICE) VPC3(HEV) |
MICRO 10A |
NOT USED(ICE) VPC(HEV) |
|
G16_1_3 |
RESERVE(ICE) EWP2(HEV) |
MICRO 15A |
NOT USED(ICE) ELECTRIC WATER PUMP(HEV) |
|
G16_1_4 |
HEATED MIRROR |
MICRO 15A |
OUTSIDE HEATED MIRROR |
|
G17_1_1 |
RESERVE(ICE) IEB2(HEB) |
S/B LP 60A |
NOT USED(ICE) IEB (Integrated Electric Brake) |
|
G18_1_1 |
COOLING FAN3(ICE) RESERVE(HEV) |
S/B LP 40A |
COOLING FAN(ICE) NOT USED(HEV) |
|
G18_1_2 |
RESERVE |
- |
NOT USED |
|
G18_1_3 |
HEAD LAMP LH |
S/B LP 30A |
HEAD LAMP LH |
|
G18_1_4 |
HEAD LAMP RH |
S/B LP 30A |
HEAD LAMP RH |
|
G19_1_1 |
RESERVE |
- |
NOT USED |
|
G19_1_2 |
RESERVE(ICE) IG3_2(HEV) |
MICRO 10A |
NOT USED(ICE) IG3(HEV) |
|
G19_1_3 |
RESERVE |
- |
NOT USED |
|
G20_1_1 |
USB CHARGER3 |
MICRO 10A |
USB CHARGER |
|
G20_1_2 |
RESERVE |
- |
NOT USED |
|
G20_1_3 |
RESERVE(ICE) IG3_1(HEV) |
MICRO 20A |
NOT USED(ICE) IG3(HEV) |
|
G20_1_4 |
4WD(ICE) RESERVE(HEV) |
MICRO 20A |
4WD ECU(ICE) NOT USED(HEV) |
|
G20_1_5 |
RESERVE |
- |
NOT USED |
|
G20_1_6 |
RESERVE |
- |
NOT USED |
|
G20_1_7 |
RESERVE |
- |
NOT USED |
|
G20_1_8 |
RESERVE |
- |
NOT USED |
|
G13_1_1 |
RESERVE(ICE) FUEL LID(HEV) |
MICRO 10A |
NOT USED(ICE) FUEL FILLER DOOR(HEV) |
|
G13_1_2 |
RESERVE(ICE) HPCU1(HEV) |
MICRO 15A |
NOT USED(ICE) HPCU(HEV) |
|
G13_1_3 |
USB CHARGER2 |
MICRO 20A |
USB CHARGER |
|
G13_1_4 |
RESERVE(ICE) VPC2(HEV) |
MICRO 20A |
NOT USED(ICE) VPC(HEV) |
|
G13_1_5 |
RESERVE(ICE) CLUTCH ACTUATOR2(HEV) |
MICRO 10A |
NOT USED(ICE) CLUTCH ACTUATOR(HEV) |
|
G13_1_6 |
RESERVE(ICE) EWP1(HEV) |
MICRO 10A |
NOT USED(ICE) ELECTRIC WATER PUMP(HEV) |
|
G13_1_7 |
AMS(ICE) BATTER C/FAN(HEV) |
MICRO 15A |
BATTERY SENSOR(ICE) BATTERY COOLING FAN(HEV) |
|
G13_1_8 |
RESERVE |
- |
NOT USED |
|
G13_1_9 |
RESERVE |
- |
NOT USED |
|
G13_1_10 |
FUEL PUMP1 |
MICRO 15A |
FUEL PUMP |
|
G12_1_1 |
RESERVE |
- |
- |
|
G12_1_2 |
RESERVE(ICE) EOP(HEV) |
S/B LP 40A |
NOT USED(ICE) ELECTRIC OIL PUMP(HEV) |
|
G12_1_3 |
ABS2(ICE) RESERVE(HEV) |
S/B LP 40A |
ABS(ICE) NOT USED(HEV) |
|
G12_1_4 |
RESERVE |
- |
NOT USED |
|
G11_1_1 |
REAR HEATED |
S/B LP 50A |
REAR HEATED |
|
G11_1_2 |
ABS1(ICE) IEB1(HEV) |
S/B LP 60A |
ABS(ICE) IEB (Integrated Electric Brake) |
|
G10_1_1 |
MDPS |
MULTI 80A |
MDPS |
|
G10_1_2 |
ALT |
MULTI 180A/150A |
ALTERNATOR |
|
G9_1_1 |
COOLING FAN1 |
MULTI 80A |
COOLING FAN BLDC |
|
G9_1_2 |
RESERVE(ICE) COOLING FAN2 |
MULTI 60A |
NOT USED(ICE) COOLING FAN(HEV) |
|
G9_1_3 |
RESERVE |
- |
NOT USED |
|
G9_1_4 |
B+4 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ - FUSE LIST : CHILD LOCK, BDC1, BRAKE SWITCH, CCU, S/HEATER, TAILGATE OPEN |
|
G9_1_5 |
B+5 |
MULTI 50A |
PDC (Power-net Domain Controller) B+ - FUSE LIST : AMP, INVERTER REAR, AIR BAG2, BMS, MODULE8, SPARE, SUNROOF1 |
|
G9_1_6 |
B+2 |
MULTI 50A |
PDC (Power-net Domain Controller) B+ - IPS (HEAD LAMP, TURN SIGNAL LAMP, POSITION LAMP, TAIL LAMP, STOP LAMP, BACKUP LAMP, FOG LAMP |
|
G9_1_7 |
IG1 |
MULTI 40A |
<IG1> ER_JB (PCB_BLOCK) IG1 FUSE LIST : ABS3/IEB3, ECU4, TCU2, EWP3, SENSOR4, SPARE PDC (Power-net Domain Controller) IG1 FUSE LIST : AIR BAG1, SPARE, E-SHIFTER3, CLUSTER, BDC2, MDP2, MODULE2, MODULE4, MODULE5, MODULE3 <ACC> ER_JB ACC FUSE LIST : POWER OUTLET1, SPARE PDC (Power-net Domain Controller) ACC FUSE LIST : USB CHARGER1, MODULE1 |
|
G9_1_8 |
IG2 |
MULTI 40A |
PDC (Power-net Domain Controller) IG2 FUSE LIST :A/C3, SPARE, WASHER, MODULE6, MODULE7 |
|
G9_1_9 |
RESERVE(ICE) DCT1(HEV) |
MULTI 40A |
NOT USED(ICE) DCT UNIT(HEV) |
|
G9_1_10 |
RESERVE(ICE) CLUTCH ACTUATOR1(HEV) |
MULTI 40A |
NOT USED(ICE) CLUTCH ACTUATOR(HEV) |
|
G8_1_1 |
B+1 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ - IPS (HEAD LAMP, STOP LAMP, DRL, HEATED WASHER NOZZLE, High Mounted Stop Lamp, Rear Fog Lamp, Interior Tail Lamp, Interior Lamp, Steering Wheel Warmer) |
|
G8_1_2 |
B+6 |
MULTI 60A |
ER_JB (PCB_BLOCK) B+ FUSE LIST : IGN COIL, ECU1, ECU2, INJECTOR (ICE), SENSOR1, SNESOR2, SENSOR3, FUEL PUMP2, A/C1, ECU3, TCU1, ECU5, HORN, B/ALARM HORN, |
|
G8_1_3 |
B+3 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ FUSE LIST : SPARE, P/SEAT DRV, P/SEAT APSS, CHARGER, SUNROOF2, S/HEATER FR, P/WINDOW DRV, P/WINDOW LH, P/WINDOW RH, SBCM DRV, SBCM PASS, E-SHIFTER2, MODULE9, MODULE10 |
|
G8_1_4 |
RESERVE(ICE) PTC HEATER1(HEV) |
MULTI 60A |
NOT USED(ICE) PTC HEATER1(HEV) |
|
G8_1_5 |
RESERVE(ICE) PTC HEATER2(HEV) |
MULTI 60A |
NOT USED(ICE) PTC HEATER2(HEV) |
|
G8_1_6 |
BLOWER |
MULTI 50A |
Blower Motor |
|
G8_1_7 |
RESERVE(ICE) DCT2(HEV) |
MULTI 40A |
NOT USED(ICE) DCT TCU(HEV) |
|
G8_1_8 |
POWER TAILGATE |
MULTI 40A |
POWER TAIL GATE |
|
G8_1_9 |
E-SHIFTER1(ICE) VPC1(HEV) |
MULTI 40A |
SCU(ICE) VPC(HEV) |
|
G8_1_10 |
CVVD(ICE) RESERVE(HEV) |
MULTI 40A |
CVVD ACTUATOR NOT USED(HEV) |
The following table shows the relay type:
|
NO |
Relay Name |
TYPE |
Load |
|---|---|---|---|
|
G4_1_1 |
START(ICE) IG3(HEV) |
H/C MICRO RELAY 4P |
Start Solenoid (ICE) HPCU (Hybrid Power Control Unit) (HEV) PDC IG3 Power (HEV) |
|
G5_1_1 |
COOLING FAN1 |
MINI RELAY 4P |
COOLING FAN HI |
|
G5_2_1 |
REAR HEATED |
MINI RELAY 4P |
REAR HEATED |
|
G7_1_1 |
BLOWER |
H/C MICRO RELAY 4P |
Blower Motor |
|
G7_1_2 |
RESERVE(ICE) BATTERY COOLING FAN(HEV) |
H/C MICRO RELAY 4P |
HIGH VOLTAGE BATTERY COOLING FAN(HEV) |
|
G7_1_3 |
RESERVE(ICE) FUEL LID(HEV) |
H/C MICRO RELAY 4P |
Fuel Filler Door Opener |
|
G7_1_4 |
RESERVE PTC HEATER1(HEV) |
H/C MICRO RELAY 4P |
PTC Heater1 |
|
G7_1_5 |
P/WINDOW DRV1 |
H/C MICRO RELAY 4P |
POWER WINDOW DOWN MOTOR |
|
G7_1_6 |
FUEL PUMP |
H/C MICRO RELAY 4P |
FUEL PUMP MOTOR |
|
G7_1_7 |
COOLING FAN2(ICE) RESERVER(HEV) |
H/C MICRO RELAY 5P |
COOLING FAN LOW |
|
G15_1_1 |
RESERVE PTC HEATER2(HEV) |
H/C MICRO RELAY 4P |
PTC HEATER2 |
|
G15_1_2 |
WIPER RR |
H/C MICRO RELAY 4P |
REAR WIPER |
|
G15_1_3 |
P/WINDOW DRV2 |
MINI RELAY 4P |
POWER WINDOW UP MOTOR |
The following table shows the PCB block:
|
FUSE NUMBER |
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|---|
|
FUSE01 |
POWER OUTLET1 |
MICRO 20A |
Front Power Outlet |
|
FUSE02 |
SPARE |
MICRO 20A |
SPARE |
|
FUSE03 |
WIPER FRT1 |
MICRO 30A |
WIPER FRONT |
|
FUSE04 |
SENSOR3 |
MICRO 15A |
COOLING FAN |
|
FUSE05 |
ECU2(ICE) SPARE(HEV) |
MICRO 15A |
ECU (Engine Control Unit)(ICE) SPARE(HEV) |
|
FUSE06 |
ECU1 |
MICRO 20A |
ECU (Engine Control Unit) |
|
FUSE07 |
IGN COIL |
MICRO 20A |
Ignition Coil 1~4 |
|
FUSE08 |
WIPER RR |
MICRO 15A |
WIPER REAR |
|
FUSE09 |
SENSOR1 |
MICRO 15A |
O2 Sensor |
|
FUSE10 |
INJECTOR4, EWP(ICE) SPARE(HEV) |
MICRO 15A |
Injector 1~4, EWP(ICE) SPARE(HEV) |
|
FUSE11 |
TCU2 |
MICRO 15A |
TCU (Transmission Control Unit) |
|
FUSE12 |
ECU4 |
MICRO 10A |
ECU (Engine Control Unit) |
|
FUSE13 |
FUEL PUMP2 |
MICRO 10A |
Fuel Pump Relay Coil |
|
FUSE14 |
SENSOR2 |
MICRO 10A |
OCV (Oil Control Valve) VOPS (Variable oil pump) PCSV (Purge Control Solenoid Valve) ELCM (Evaporation Leak Check Module) FTIV (Fuel Tank Isolation Valve) RCV (Recirculation Control Valve) |
|
FUSE15 |
SPARE(ICE) EWP3(HEV) |
MICRO 7.5A |
SPARE(ICE) EWP(HEV) |
|
FUSE16 |
SPARE(ICE) HPCU(HEV) |
MICRO 10A |
SPARE(ICE) HPCU(HEV) |
|
FUSE17 |
ABS3(ICE) IEB3(HEV) |
MICRO 10A |
ESC (ELECTRIC STABILITY CONTROL) (ICE) IEB (Integrated Electric Brake) (HEV) |
|
FUSE18 |
A/C1 (ICE) SPARE(HEV) |
MICRO 10A |
Compressor(ICE) SPARE(HEV) |
|
FUSE19 |
ECU3 |
MICRO 15A |
ECU (Engine Control Unit) |
|
FUSE20 |
TCU1(ICE) SPARE(HEV) |
MICRO 15A |
TCU (Transmission Control Unit) SPARE(HEV) |
|
FUSE21 |
ECU5(ICE) SPARE(HEV) |
MICRO 10A |
ECU (Engine Control Unit) SPARE(HEV) |
|
FUSE22 |
HORN |
MICRO 15A |
Horn LH, Horn RH |
|
FUSE23 |
B/ALARM HORN |
MICRO 15A |
Burglar Alarm Horn |
|
FUSE24 |
SPARE |
MICRO 10A |
SPARE |
|
FUSE25 |
SPARE |
MICRO 10A |
SPARE |
