USB charger

The USB charger recharges the batteries of small electronic devices using a USB cable.

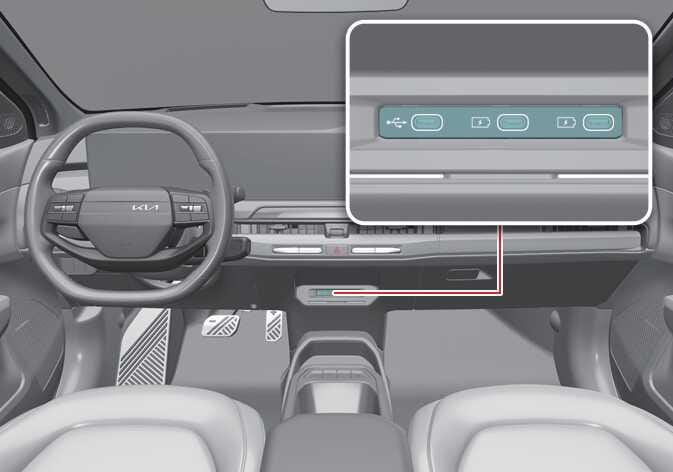

Figure 1. Instrument panel
OSVM086030L

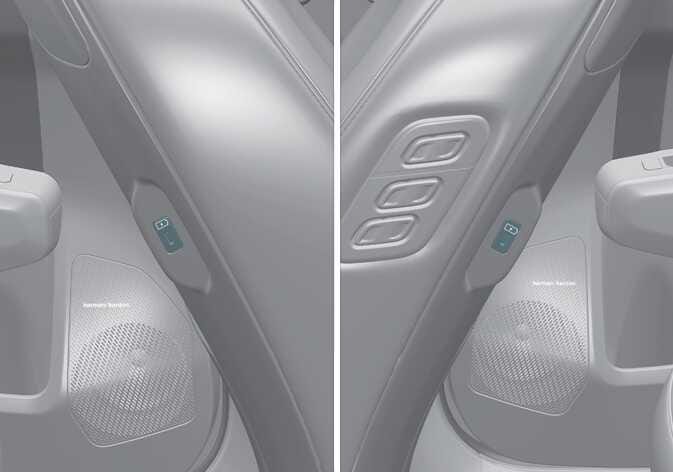

Figure 2. Front seat
OSVM086035L_2

You can recharge the electronic devices when the vehicle is in POWER ON position or READY indicator is on.

You can monitor the battery charging state on the electronic device.

Disconnect the USB cable from the USB port after use.

Rated output: 9.0 V/Max 3.0 A

  • A smartphone or a tablet PC may get warmer during the recharging process. This does not indicate any malfunction with the charging system.

  • A smartphone or a tablet PC that has a different recharging method may not properly recharge. In this case, use an exclusive charger for your device.

  • The charging terminal is only for recharging a device. Do not use the charging terminal either to turn on an audio or to play media in the infotainment system.

NOTE

  • Use the USB charger when the vehicle is running. Using the USB charger for prolonged periods of time with the vehicle off could cause the 12V battery to discharge.

  • To prevent damage to the USB charger:

    • Do not insert foreign objects or spill liquid into the outlet. This may damage the USB charging terminal.

    • Do not use devices with a working current exceeding 3,000 mA (3.0 A).

TIP

Charging may not be possible when using a USB Type-C to USB Type-A converter.

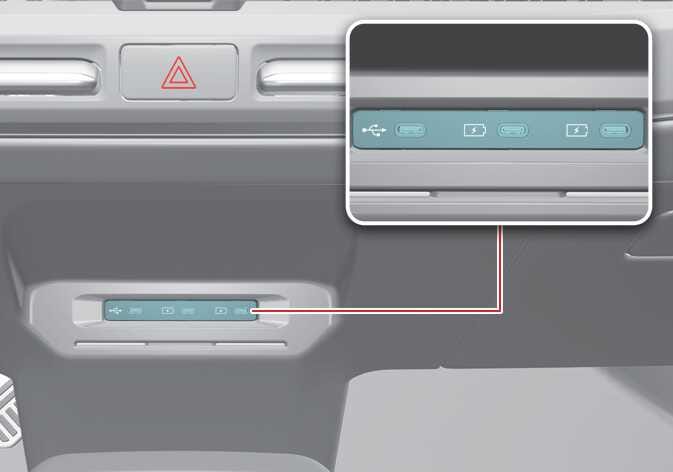

100W USB charging port: (if equipped)

OSV035468

When the vehicle is in ON position, you can charge various devices such as smartphones and tablets by connecting them to the USB charging port.

Depending on the connected device’s request or the specification of the charging cable, the USB charger can support up to 100W of total output.

  • When using one port in the center console: up to 100W supported

  • When using two ports in the center console: up to 50W supported for each port

NOTE

  • The 100W USB charging port is indicated by the symbols.

  • The 100W USB charging port supports full 100W charging only when using genuine Kia cables or USB-IF certified cables. When using non-standard cables, the charging power may be limited to 60W or 27W. Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance.

  • The 100W USB charging port indicates its operating status through indicator light for user convenience. If an issue persists, have your vehicle inspected by an authorized Kia dealer.

  • To prevent the vehicle’s 12V battery from discharging, use the charging function only when the vehicle is on.

  • Ensure that no foreign substances, beverages, or moisture enter the USB charging port, as it may cause damage.

  • If a failure of the USB port or infotainment system occurs due to the use of low-quality or non-certified components, warranty repair will not be provided even within the warranty period. Use only Kia Genuine Parts or those of an equivalent standard with proven quality and performance.

100W USB charging port status

Color

USB charging port state

Measure

White

(Default)

Normal

-

Yellow

Charging has stopped because the USB charging port is operating normally, but the connected device or cable is not.

  • Check whether there is a problem with the connected device or cable, and then reconnect it.

  • If the same problem occurs repeatedly, replace it with another compatible cable or check whether the connected device is functioning properly.

Red

Turns on when a malfunction is detected in the charging device.

Stop charging immediately. Have your vehicle inspected by an authorized Kia dealer.
NOTE

  • Check the charging status through the display on the connected device.

  • When connecting to the data port using a C to A type USB adapter, use a genuine adapter compatible with the vehicle. Using products that lack built-in overcurrent protection or stabilization features, or those that do not meet the required specifications, may damage the vehicle’s USB charging port or the connected device.

  • The USB charging port provides charging functionality only and does not support media connection or playback.

  • Always keep the USB port clean and free of dust or foreign substances. Using the port in a contaminated state may cause fire, damage, or other hazardous situations.
