Seat belt warning

The seat belt warning light and warning chime operate under the following conditions.

Front seat belt warning light

  • When the vehicle is POWER ON or DRIVE READY, the warning light will illuminate for approximately 6 seconds. The warning light will continue to stay illuminated until the seat belt is fastened.

  • If the seat belt is unfastened whilst driving and the vehicle's speed is below approximately 20 km/h (12 mph), the warning light will remain illuminated. If the vehicle's speed is above approximately 20 km/h (12 mph) and the seat belt is unfastened whilst driving, the warning light (flashing) and warning sound will operate for about 100 seconds. After that, the warning light will continue to stay illuminated until the seat belt is fastened.

  • When the front passenger seat is not occupied, the seat belt warning light turns on for approximately 6 seconds and then turns off. In addition, when the warning is already activated, the seat belt not fastened warning may remain for about 6 seconds after the passenger gets out of the vehicle.

WARNING

Riding in an improper position adversely affects the front seat belt warning system. It is important for the driver to instruct the passenger to properly be seated as instructed in this manual.

NOTE

  • You can find the front passenger's seat belt warning light on the instrument cluster.

  • Although the front passenger seat is not occupied, the seat belt warning light will blink or appear for approximately 6 seconds.

  • The front passenger's seat belt warning may operate when luggage is placed.

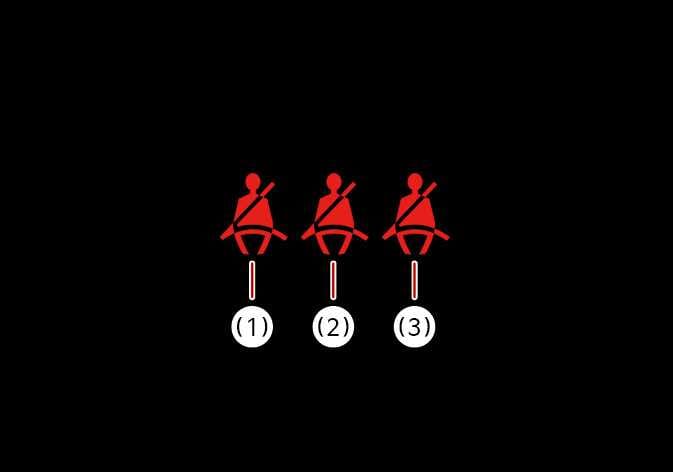

Rear passenger's seat belt warning (Passenger van)

N_CT25Z004

  1. Rear seats left side

  2. Rear seats centre side

  3. Rear seats right side
For rear left and right seat

  • When the vehicle is POWER ON or DRIVE READY, the warning light will illuminate for approximately 6 seconds. The warning light will continue to stay illuminated until the seat belt is fastened. If no passengers are detected, the warning light will activate for approximately 6 seconds and then turn off.

  • If the seat belt is unfastened whilst driving and the vehicle's speed is below approximately 20 km/h (12 mph), the warning light will remain illuminated. If the vehicle's speed is above approximately 20 km/h (12 mph) and the seat belt is unfastened whilst driving, the warning light (flashing) and warning sound will operate for about 35 seconds. After that, the warning light will continue to stay illuminated until the seat belt is fastened.

For rear centre seat

  • When the vehicle is POWER ON or DRIVE READY, the warning light will illuminate for approximately 6 seconds. Afterwards, regardless of passenger occupancy, if the seat belt is not fastened, the warning light will stay illuminated for approximately 70 seconds.

  • If the seat belt is unfastened whilst driving after it has been initially fastened, and the vehicle's speed is below approximately 20 km/h (12 mph), the warning light will remain illuminated for approximately 70 seconds. If the vehicle's speed is above approximately 20 km/h (12 mph), the warning light (flashing) and warning sound will operate for approximately 35 seconds.

  • When the rear door is opened or closed, and the vehicle speed is under 10 km/h (6 mph)

    • Seat belt warning light and the seat belt warning chime will not work even if the vehicle speed is over approximately 20 km/h (12 mph).

WARNING

  • Riding in an improper position adversely affects the front seat belt warning system. It is important for the driver to instruct the passenger to properly be seated as instructed in this manual.
