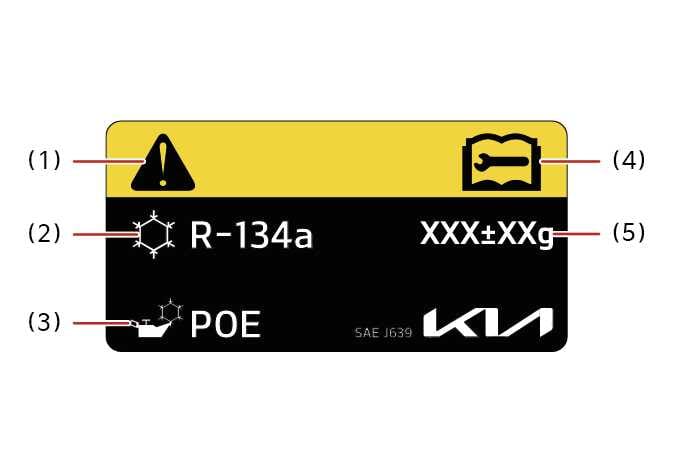

Air conditioning refrigerant label

N_SZe25C020_E

  1. Caution

  2. Classification of refrigerant

  3. Classification of Compressor lubricant

  4. Service manual

  5. Amount of refrigerant

  6. CO2 equivalent of refrigerant

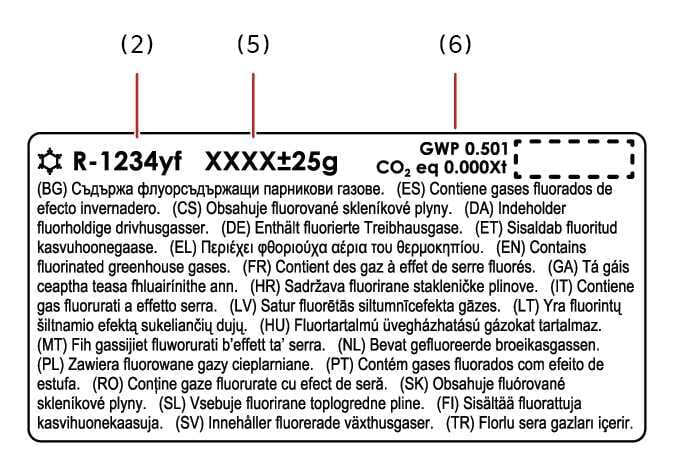

N_SZe25C021_E

You can find out which air conditioning refrigerant is applied your vehicle at the label inside the motor room.

Refer to Refrigerant label for more detail on the location of air conditioning refrigerant label.

Checking the amount of air conditioner refrigerant and compressor lubricant

When the amount of refrigerant is low, the performance of the air conditioning is reduced. Overfilling also has a negative impact on the air conditioning system.

Therefore, if abnormal operation is found, have the system inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.

WARNING

  • Vehicles equipped with R-134a

    Because the refrigerant is at very high pressure, the air conditioning system should only be serviced by trained and certified technicians. It is important that the correct type and amount of oil and refrigerant is used.

    Otherwise, it may cause damage to the vehicle and personal injury.

  • Vehicles equipped with R-1234yf

    Since the refrigerant is mildly flammable and operated at high pressure, the air conditioning system should only be serviced by trained and certified technicians.

    It is important that the correct type and amount of oil and refrigerant are used. All refrigerants should be reclaimed with proper equipment. Venting refrigerants directly to the atmosphere is harmful to individuals and environment. Failure to heed these warnings can lead to serious injuries.

CAUTION

  • AC repair

    It is important that the correct type and amount of oil and refrigerant is used, otherwise, damage to the vehicle may occur. To prevent damage, the air conditioning system in your vehicle should only be serviced by trained and certified Kia technicians.

  • The air conditioning system should only be used with the windows and sunroof closed to prevent condensation inside the vehicle that may cause damage to electrical components.

    OSW036456L
NOTE

  • Replace the filter according to the maintenance schedule. If the vehicle is being driven in severe conditions such as dusty or rough roads, more frequent air conditioner filter inspections and changes are required.

  • When the air flow rate suddenly decreases, have the system checked by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.
