Using the Tyre Mobility Kit

CAUTION

Detach the speed restriction label from the compressor, and place it in a highly visible place inside the vehicle such as on the steering wheel to remind the driver not to drive too fast.

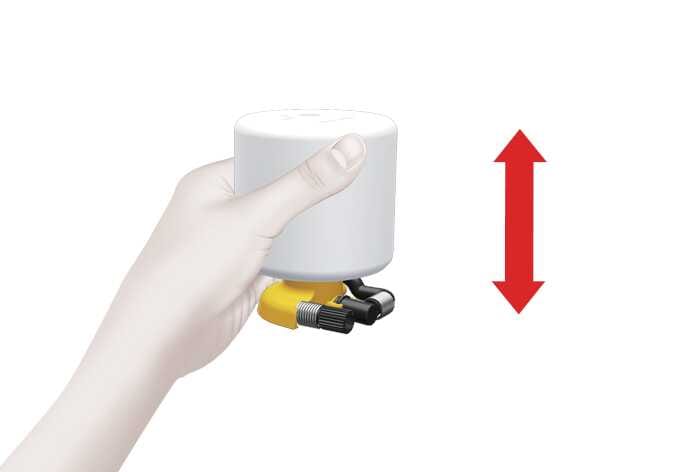

  1. Shake the sealant bottle.

    OSW065009L

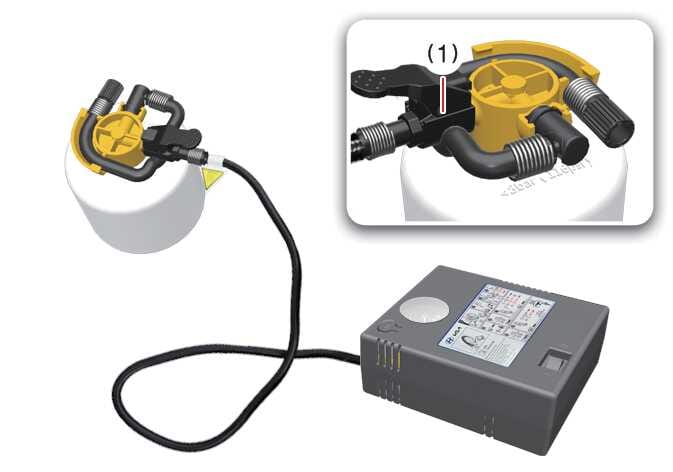

  2. Connect the compressor connector to the compressor hose connector, located on the sealant bottle (1). Make sure the sealant bottle is sitting upright.

    OSW065010L

  3. Make sure the compressor connector valve on the filling hose is locked.

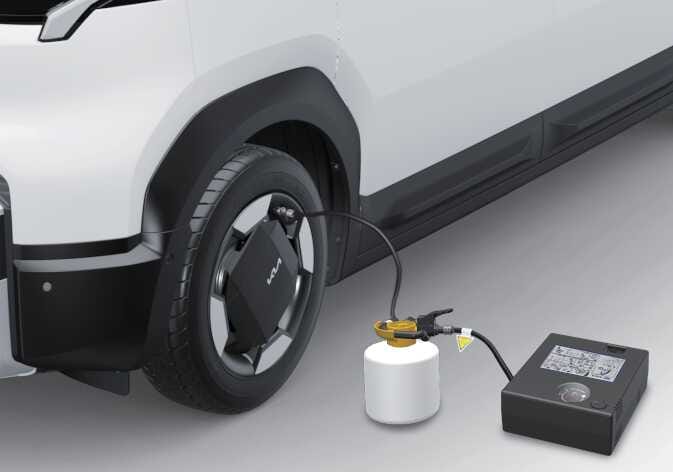

  4. Unscrew the tyre valve cap and screw the sealant injection valve onto the tyre valve.

    OSW065011L

  5. Make sure the compressor is turned off.

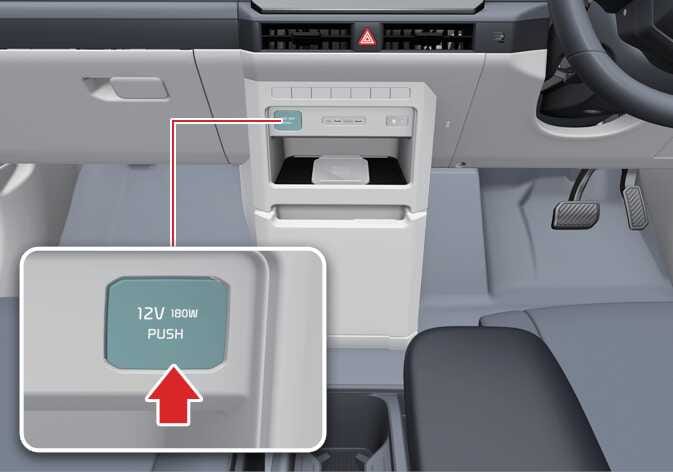

  6. Connect the power outlet connector into the vehicle's power outlet.

    OSW065005R

  7. Start the vehicle.

  8. Turn the compressor on and let it run for approximately 5-7 minutes to fill the sealant up to the proper pressure.

  9. Turn the compressor off.

  10. Detach the sealant injection valve from the tyre valve.
