Function settings

Camera Setting

  • You can change 360° Camera Monitoring settings by pressing the setup icon () on the screen while the function is operating, or select '‘Setup → Vehicle (Infotainment System screen) → Driver Assistance → Parking Safety → Camera Settings' from the Settings menu in the Settings in the Infotainment System screen while the ENGINE START/STOP button is in the ON position.

  • You can change the settings of the following information:

    • Top view

    • Rear view

    • Parking distance warning

  • You can change the following lists in the screen settings:

    • brightness (daytime)

    • brightness (nighttime)

    • contrast

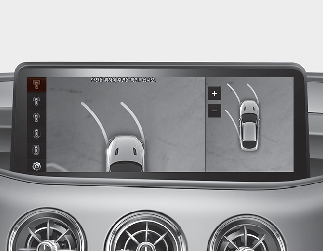

Top view

  • If top view is selected, the top view will be displayed on the right side of top view in the 360° Camera Monitoring screen.

  • The top view also works in pair with the front top view and rear top view guideline display.

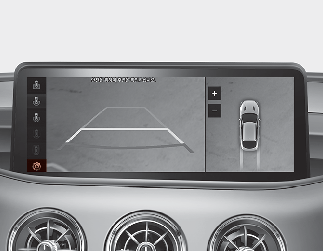

Rear view

  • If rear view is selected, the rear view will be displayed on the rear view screen.

  • The horizontal guideline of the rear view shows the distance of 0.5 m (20 in.), 1 m (40 in.), 2.3m (90 in.) from the vehicle.

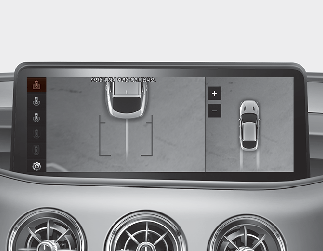

Parking Distance Warning

  • If warning is selected, the warning image will be displayed on the right side of top view in the 360° Camera Monitoring screen.

  • The warning image appears only when the parking distance warning occurs.

360° Camera Monitoring Auto On

  • With the ENGINE START/STOP button is in the ON position, 360° camera monitoring auto activation is activated or deactivated when you select ‘User Settings (LCD display) or Setup → Vehicle → Driver Assistance → Parking Safety → 360° Camera Monitoring Auto On’.

    * For more details, refer to More Details.

    If your vehicle is equipped with additional Infotainment System, please scan the QR code in a separately supplied Car Infotainment System Quick Reference Guide.
