Reverse Parking Distance Warning (PDW) (if equipped)
Reverse Parking Distance Warning will warn the driver if an obstacle is detected when the vehicle is backing up at low speeds.
-
Reverse Parking Distance Warning is a supplemental function. The operation of the function can be affected by several factors (including environmental conditions). It is the responsibility of the driver to always check the rear view before and while parking.
-
Pay close attention when driving near objects, pedestrians, and especially children.
-
Some objects may not be detected by the ultrasonic sensors due to the objects distance, size or material, all of which can limit the effectiveness of the sensor.
-
Your new vehicle warranty does not cover any accidents or damage to the vehicle or injuries to its occupants.
Detecting sensor

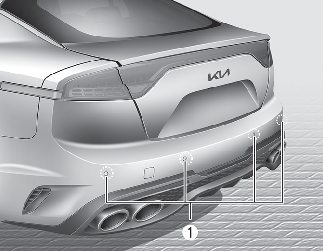

Refer to the picture above for the detailed location of the rear ultrasonic sensors (1).
-
Take the following precautions to maintain optimal performance of the detecting sensor:
-
Never disassemble the detecting sensors or sensor assembly, or apply any impact on it.
-
If the detecting sensors have been replaced or repaired, have the system inspected by an authorized Kia dealer.
-
-
Reverse Parking Distance Warning may not operate normally when:
-
Moisture is frozen on the sensor
-
Sensor is covered with foreign matters, such as snow or water
-
-
The function will operate normally when such foreign matters are removed.
-
Reverse Parking Distance Warning may malfunction when:
-
Driving on uneven road, gravel roads or bushes
-
Objects that generates ultrasonic waves such as vehicle horns, loud motorcycle engine sound or truck air brakes are near the sensor
-
Heavy rain or water spray is present
-
Wireless transmitters or mobile phones are present near the sensor
-
The sensor is covered with snow
-
Affected by another vehicle's sensors
-
Water flows on the surface of the sensor
-
Installing the license plate differently from the original location
-
-
Detecting range may decrease when:
-
Sensor is covered with foreign matters, such as snow or water
-
The weather is extremely hot or cold
-
-
The function will operate normally when such foreign matters are removed.
-
The following objects may not be detected:
-
Sharp or slim objects, such as ropes, chains or small poles
-
Objects, which tend to absorb sensor frequency, such as clothes, spongy material or snow
-
Objects smaller than 1 m (40 in.) in length and narrower than 14 cm (6 in.) in diameter
-
Warning volume
With the ENGINE START/STOP button in the ON position, select 'Driver Assistance → Warning Volume' from the Settings menu to change the warning volume to 'High', 'Medium' or 'Low' for Reverse Parking Distance Warning.
If you change the warning volume, the warning volume of other Driver Assistance systems may change.
