Low DC-DC Converter (Audio)

SRS (Supplemental Restraint System) Control Module, Passenger Occupant Detection Sensor

Overhead Console Lamp, Room Lamp, Vanity Lamp Switch Left Handle side/Right Handle side, Luggage Lamp Left Handle side/Right Handle side, Glove Box Lamp, Driver/Passenger Door Lamp, Driver/Passenger Foot Lamp

IBU, Stop Lamp Switch

Instrument Cluster, Head-Up Display

Electronic Auto Transmission Shift Lever (IG1)

IBU (IG1)

Instrument Cluster, Head-Up Display, Air Conditioner Switch, Wireless Charger

Audio or A/V & Navigation Head Unit

Air Conditioner Control Module, Air Conditioner Switch, Security Indicator, Head-Up Display

IBU (B+)

Electronic Auto Transmission Shift Lever (B+)

Instrument Cluster, Passenger/Rear Seat Belt Reminder Indigator

IBU (B+)

Driver Door Module, Driver/Passenger Power Outside Mirror

IBU (IG2)

Auto Transmission Shift Lever Switch, Driver Door Module, Stop Lamp Switch

Door Lock Relay, Door Unlock Relay

Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

Tail Gate Lid Relay, Fuel Lid Relay, Crash Pad Switch

IBU (B+ (ESCL)), Rain Sensor

Cooling Fan Controller (BLDC Motor)

IBU, AWD (All Wheel Drive) ECM (Electronic Control Module), Auto Transmission Shift Lever Indicator, Console Switch (Front/Upper), 360° camera monitoring, Crash Pad Switch, Steering Angle Sensor, Steering Tilt & Telescopic Module, ESC (Electronic Stability Control) Unit, Multi-Function Camera Unit, Front Radar

Steering Tilt & Telescopic Module

Driver Air Lumbar Control Unit

Data Link Connector, Console Switch (Upper), Driver/Passenger/Door Mood Lamp, Mood Lamp (Garnish), Mood Lamp Monitor, Hazard Switch, Mood Lamp Unit

Air Conditioner Control Module, Air Conditioner Switch, Audio, A/V & Navigation Head Unit, Data Link Connect, Head Lamp Left Handle side/Right Handle side, Low DC-DC Converter (Audio/AMP (Amplifier)), Electro Chromic Mirror, AMP (Amplifier), Driver Integrated memory system Control Module, Front Air Ventilation Seat Control Module, Front/Rear Seat Warmer Control Module, Wireless Charger

Sunroof Control Unit (Glass)

Passenger Safety Power Window Module, Rear Safety Power Window Module Right Handle side, Rear Door Module Right Handle side

Front/Rear USB Charger, Front Power Outlet (Cigar)

Multifunction Switch

MDPS (Motor Driven Power Steering) Unit

Driver Integrated memory system Control Module, Driver Seat Manual Switch

Passenger Seat Manual Switch

IBU, Low DC-DC Converter (Audio/AMP (Amplifier)), Electronic Auto Transmission Shift Lever (SBW (Shift By Wire)), Engine Room Junction Block (Power Outlet Relay)

Air Conditioner Control Module, Air Conditioner Switch, Engine Room Junction Block (Blower Relay)

Head Lamp Left Handle side/Right Handle side, AFS Control Unit

Alternator, Multi Fuse - C/FAN1/B+4/B+3/B+2/B+1/EOP/BLOWER/POWER TAIL GATE

Start Relay

[BLDC (Brushless Direct Current) Motor Smartstream G2.5 FR T-GDi] Cooling Fan Controller

Instrument Panel Junction Block (Fuse - STOP LAMP/Leak Current Autocut Device (Fuse - INTERIOR LAMP, DDM, IBU3, MEMORY, MULTI MEDIA1, MULTI MEDIA2, MULTI MEDIA3))

Instrument Panel Junction Block (Fuse - DOOR LOCK / POWER HANDLE/SUNROOF/DRIVER POWER SEAT/PASSENGER POWER SEAT)

Instrument Panel Junction Block (Fuse - SEAT HEATER/TAIL GATE/MODULE 9/PASSENGER POWER WINDOW/DRIVER POWER WINDOW)

Electric Oil Pump

ESC (Electronic Stability Control) Control Module

ESC (Electronic Stability Control) Control Module

Blower Relay

Power Tail Gate Module

MDPS (Motor Driven Power Steering) Unit

Engine Control Relay, Fuse - HORN / WIPER1 / H/BEAM H/LAMP / B/ALARM)

[Smartstream G2.5 FR T-GDi] E-CVVT Relay

[(Gasoline) 2.0 FR T-GDi, (Gasoline) 3.3 T-GDi]

Vacuum Pump Relay

AWD (All Wheel Drive) ECM (Electronic Control Module)

IG2 Relay

Rear Power Outlet

Front Power Outlet #1

Air Conditioner Control Module

[Smartstream G2.5 FR T-GDi]

ECM (Engine Control Module)

[Smartstream G2.5 FR T-GDi]

ECM (Engine Control Module)

ESC (Electronic Stability Control) Control Module

ECM (Engine Control Module)

ECM (Engine Control Module)

Horn Relay

Wiper Power Relay

TCM (Transmission Control Module), Electronic Oil Pump

[Smartstream G2.5 FR T-GDi] Oxygen Sensor (UP/DOWN)

[(Gasoline) 3.3 T-GDi] Oxygen Sensor #1/#2/#3/#4

TCM (Transmission Control Module)

ECM (Engine Control Module), IBU, Wiper Motor, Front Wiper (Low) Relay

[Smartstream G2.5 FR T-GDi] Ignition Coil #1/#2/#3/#4[(Gasoline) 3.3 T-GDi] Ignition Coil #1/#2/#3/#4/#5/#6

Head Lamp (High) Relay

ECM (Engine Control Module)

Recirculation Valve Control Solenoid Valve, Purge Control Solenoid Valve, Canister Close Valve[Smartstream G2.5 FR T-GDi] Variable Oil Pump, Oil Control Valve, Air Conditioner Relay [(Gasoline) 3.3 T-GDi] Electronic Thermostat, Oil Pressure Solenoid Valve, Oil Control Valve #1/#2/#3/#4 (Intake/Exhaust), Variable Exhaust Flap Actuator LH/RH

ECS (Electronic Control Suspension) Unit

Rear Seat Warmer Control Module

Air Conditioner Switch, Driver/Passenger Power Outside Mirror

Fuel Pump Relay

Rear Heated Relay

AMP (Amplifier) (MOBIS/PREMIUM)

Low DC-DC Converter (AMP (Amplifier))

IG1 Relay

Instrument Panel Junction Block ((Fuse - POWER OUTLET/ CHARGER/ MODULE6)

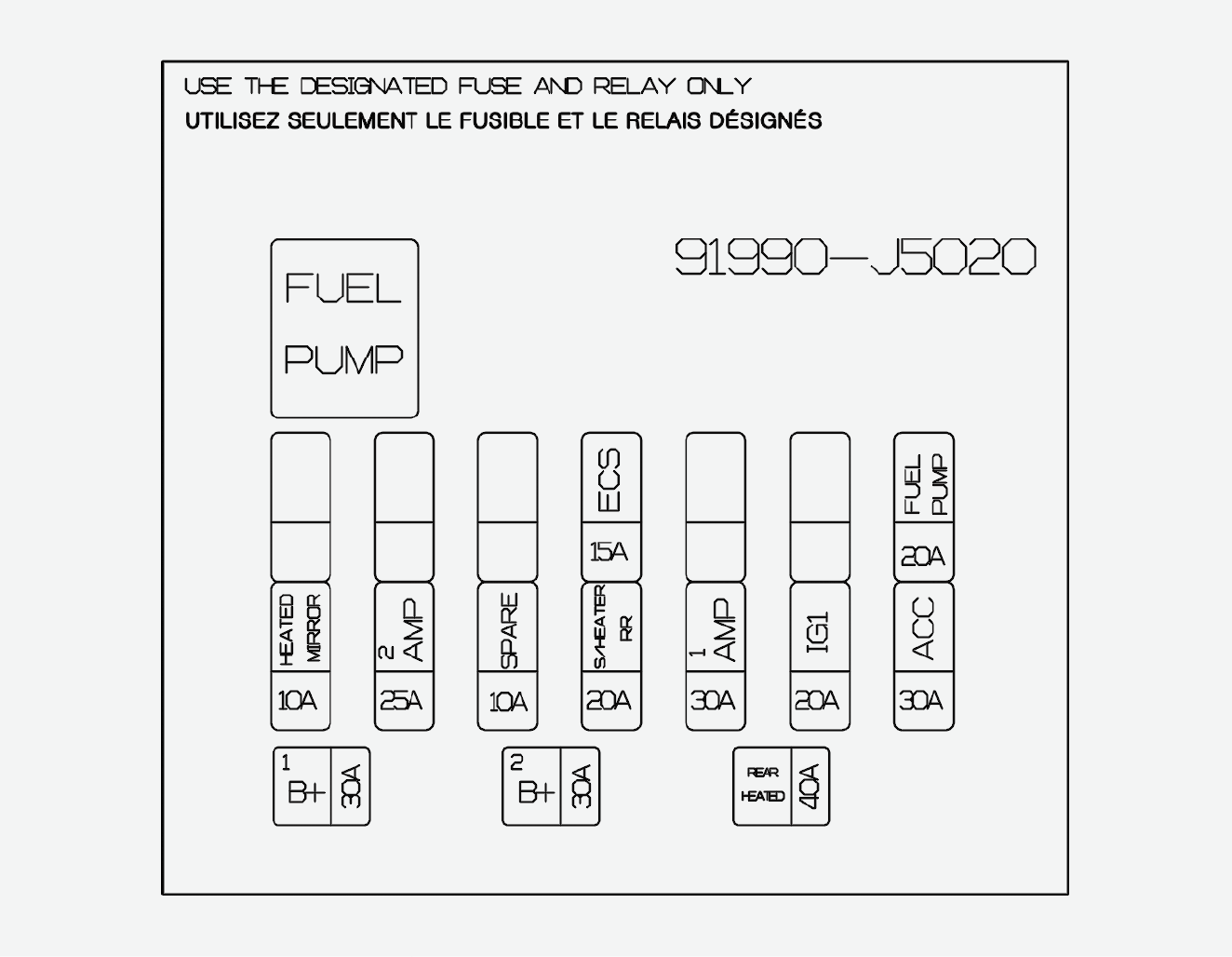

Rear Sub Junction Block (Fuse - FUEL PUMP / REAR HEATED/ AMP1)

Rear Sub Junction Block (DCU Relay, Fuse - ECS1 / REAR S/HEAT / IG1)

Engine Room Junction Block (Power Outlet Relay), Fuse -START / ECU2 / TCU1)

Battery Sensor
