LCD display modes

Mode

Driving Assist

Trip Computer

Turn By Turn (TBT)*

User Settings*

Information/Master Warning

Up/Down

Forward Collision-Avoidance Assist

Lane Keeping Assist

Blind-Spot Collision-Avoidance Assist*

Smart Cruise Control

Lane Following Assist

Highway Driving Assist

Drive information

Route Guidance

Driver Assistance*

TPMS

After recharging*

Destination Info

Head-Up Display*

Coolant Temperature

Accumulated info

Cluster

The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.

Energy Flow

Lights*

Digital Speedometer

Door*

Convenience*

Units

Language

Reset

* : if equipped

* If you press OK button for more than 1 second when the Driving Assist mode is being displayed, it leads to Driver assistance settings menu on the infotainment system screen.

Trip modes

  • A: Drive Info

  • B: After recharging

  • C: Accumulated Info

  • D: Energy Flow

  • E: Digital speedometer

  1. Tripmeter

  2. Timer

  3. Average energy consumption

To change the trip mode, toggle the switch ( / ) on the steering wheel.

* : if equipped

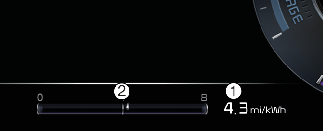

Energy economy

  1. Average energy economy

  2. Instant energy economy

Average energy economy (1)

The average energy economy is calculated by the total driving distance and energy consumption since the last average energy economy was set.

  • On vehicle start: The information will automatically reset when the driver's door is opened after the vehicle is turned off, or approximately 3 minutes have passed after the vehicle is turned off.

  • After recharging: The information will reset to default automatically after recharging.

  • Manually: Press and hold the OK button on the steering wheel when the average energy consumption is displayed.

Instant energy economy (2)

Displays the instant energy economy during the last few seconds when the vehicle speed is more than approximately 6 mph (10 km/h).

Driving assist mode

This mode displays the state of:

  • Forward Collision-Avoidance Assist

    Lane Keeping Assist

    Blind-Spot Collision-Avoidance Assist

    Smart Cruise Control

    Lane Following Assist

    Highway Driving Assist

Trip computer mode

* You may change through items in the following order.

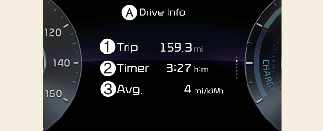

Drive Info

A: Drive information

  1. Accumulated trip distance

  2. Total driving time

  3. Average energy consumption

The driver's door is opened after turning off the vehicle or the vehicle is turned on after 3 minutes have passed, the Drive Info screen will reset.

After recharging

A: After recharging

  1. Accumulated trip distance

  2. Total driving time

  3. Average energy consumption

The information after recharging.

To manually reset the information, press and hold the OK button when viewing the After recharging.

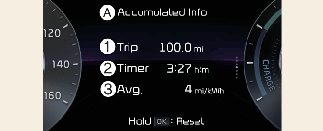

Accumulated Info

A: Accumulated info

  1. Accumulated trip distance

  2. Total driving time

  3. Average energy consumption

The information is accumulated starting from the last reset.

To manually reset the information, press and hold the OK button when viewing the Accumulated Info.

NOTICE

  • The vehicle must be driven for a minimum of 0.19 miles (300 meters ) since the last cycle before the accumulated driving information is recalculated.

  • The average energy economy is not displayed for more accurate calculation if the vehicle is not drive more than 10 seconds or 0.03 miles (50 meters) since the EV button was turned to ON.

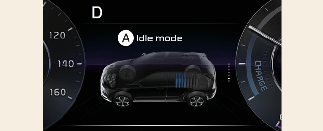

Energy flow

A: Idle mode

  • The electric vehicle system informs the driver of its energy flow in various operating modes.

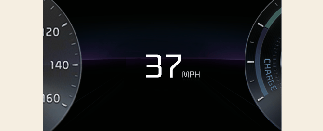

Digital speedometer

Indicates the speed of the vehicle.

Turn By Turn (TBT) mode

This mode displays the Navigation status.

Information mode

Tire pressure

A: Tire Pressure

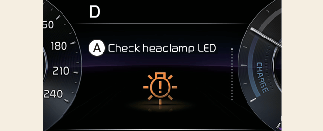

Master warning mode

A: Check headlamp LED

This mode informs you of the following situations:

  • Driver assistance system malfunction, limitation or radar/camera blockage

  • LED headlamp malfunction

  • Lamp malfunction

  • TPMS failure, low tire pressure, etc.

A Master Warning icon () will appear in the lower right corner on the LCD display. If the warning situation is resolved, the master warning light will be turned off and the Master Warning icon will disappear.

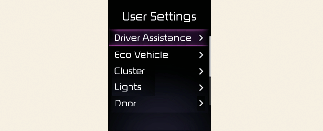

User settings mode

In this mode, you can change the settings of the instrument cluster, doors, lights, etc.

* The information provided may differ depending on which functions are applicable to your vehicle.

1. Driver Assistance (if equipped)

Items

Explanation

Driving Convenience

  • Smart Cruise Control

  • Highway Driving Assist

  • Highway Lane Change Assist

  • Auto Highway Speed Control

Speed Limit

  • Select Country

  • Speed Limit Offset

  • Speed Limit Assist/Speed Assist Warning/Speed Limit Information/Off

Warning methods

  • Warning Volume

  • Haptic Warning

  • Lane Safety Audible Warning Off

Driver Attention Warning

  • Leading vehicle departure alert

Driving Safety

  • Forward Safety

  • Forward Safety Warning Timing

    • Standard/Late

  • Lane Safety

  • Blind-Spot Safety

  • Exit Safety

Parking Safety

  • Parking Distance Warning Auto On

  • Rear Cross-Traffic Safety

2. Head-Up Display (if equipped)

Items

Explanation

Enable Head-Up Display

Activate/Deactivate

Display Height

  • 1~20 Level

Rotation

  • -5 ~ +5

Brightness

  • 1~20 Level

Content Selection

  • Turn by Turn

  • Traffic Signs

  • Driving Convenience Info

  • Blind-Spot Safety Info

  • Radio/Media Info

3. Cluster (if equipped)

Items

Explanation

Theme Selection

  • Link to Drive Mode

  • Theme A/Theme B/Theme C

Wiper/Lights Display

Activate/Deactivate

Traffic Signs

Activate/Deactivate

Icy Road Warning

Activate/Deactivate

Cluster Voice Guidance Volume

  • 0~3 Level

Welcome Sound

Activate/Deactivate

4. Lights (if equipped)

Items

Explanation

Illumination

  • 1~20 Level

One Touch Turn Signal

  • Off/3/5/7 Flashes

Ambient Brightness

  • Off/1/2/3/4

Ambient Light Color

  • 8 colors

Headlight Delay

Activate/Deactivate

High Beam Assist

Activate/Deactivate

5. Door (if equipped)

Items

Explanation

Automatically Lock

  • Enable on shift/Enable on speed/Off

Automatically Unlock

  • On shift to P/Vehicle Off/On key out (if equipped)/Off

2 Press Unlock

If this item is checked, the two press unlock will be activated. Press the door unlock button once from unlock the driver's door, and press the button once more within 4 seconds to unlock the rest of the doors.

Horn Feedback

  • If this item is checked, Horn Feedback will be activated.

Power Liftgate

Activate/Deactivate

Power Liftgate Opening Speed

  • Fast/Slow

Power Liftgate Opening Height

  • Full open/Level 3/Level 2/Level 1/User Height Setting

Smart Liftgate

Activate/Deactivate

Remote Window Control (if equipped)

Activate/Deactivate
NOTICE

  • Automatically Lock

    • Enable On Shift: All doors will be automatically unlocked when the vehicle is shifted to P (Park) to R (Reverse), N (Neutral), or D (Drive). (With the vehicle ON, it is activated.)

    • Enable On Speed: All doors will be automatically locked when the vehicle speed is over 9 mph (15 km/h).

  • Automatically Unlock

    • On Shift to P: All doors will be automatically unlocked if the gear is shifted to the P (Park) position. (With the vehicle ON, it is activated.)

    • Vehicle Off/On key out (if equipped): All doors will be automatically unlocked when the EV button is set to the OFF position.

6. Convenience (if equipped)

Items

Explanation

Seat Easy Access

  • Off/Normal/Extended

Rear Occupant Alert

Activate/Deactivate

Service Interval

  • Enable Service Interval/Adjust Interval/Reset

Welcome Mirror/Light

  • On door unlock/On door unlock

Wireless Charging System

Activate/Deactivate

Auto rear wiper (in R)

Activate/Deactivate

PASSENGER AIR BAG

Activate/Deactivate

7. Units

Items

Explanation

Speed Unit

  • km/h, MPH

Temperature Unit

  • °C, °F

Consumption Unit

  • km/L, L/100km

Tire Pressure Unit

  • psi/kPa/bar

8. Language

Items

Explanation

Language

Activate

9. Reset

Items

Explanation

Reset

Yes/No
