The basic function for Forward Collision-Avoidance Assist is warned and controlled by the following level.

• Collision warning

• Emergency braking

• Stopping vehicle and ending brake control

A: Collision warning!

Collision warning will alert the driver with a warning message, an audible warning and steering wheel vibration.

Collision Warning will be activated under the following conditions depending on the target ahead.

Your driving speed:

• For vehicle or powered two-wheeler: 6~124 mph (10~200 km/h)

• For pedestrian or cyclist: 6~53 mph (10~85 km/h)

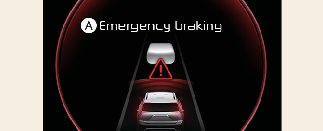

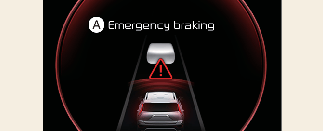

A: Emergency braking

Emergency braking will alert the driver with the warning message, an audible warning and steering wheel vibration. The brake assist will be activated and it helps avoiding collision of a vehicle, pedestrian and cyclist.

Emergency braking will be activated under the following your driving speed conditions, depending on the target ahead and the level of risk.

• For vehicle or powered two-wheeler:

  	Driving target	Stopped target
  Weak braking power	Approximately 6~124 mph (10~200 km/h)*
  Strong braking power	Approximately 6~80 mph (10~130 km/h)*	Approximately 6~47 mph (10~75 km/h) (6~62 mph (10~100 km/h))*

  *: If Forward Collision-Avoidance Assist judges that avoiding a collision is difficult even by changing the driving lane. The function operate range may decrease due to surroundings of the vehicle. (if equipped)

• For pedestrian or cyclist: 6~40 mph (10~65 km/h)

CAUTION

The function operation range may decrease due to the front traffic condition or the surroundings of the vehicle.

A: Drive carefully

When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.

For your safety, the driver should depress the brake pedal immediately and check the surroundings.

• Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds.

The Junction turning function is warned and controlled by the following level.

• Collision warning

• Emergency braking

• Stopping vehicle and ending brake control

A: Collision warning!

Collision warning will alert the driver with a warning message, an audible warning and steering wheel vibration.

Collision warning will be activated in the following conditions.

• Your driving speed: Approximately 6~19 mph (10~30 km/h)

• Oncoming vehicle speed: Approximately 19~44 mph (30~70 km/h)

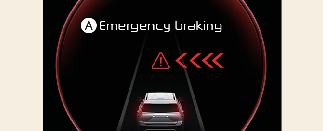

A: Emergency braking

Emergency braking will alert the driver with the warning message, an audible warning and steering wheel vibration. The brake assist will be activated and it helps avoiding collision of a vehicle.

Emergency braking will be activated in the following conditions.

• Your driving speed: Approximately 6~19 mph (10~30 km/h)

• Oncoming vehicle speed: Approximately 19~44 mph (30~70 km/h)

A: Drive carefully

When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.

For your safety, the driver should depress the brake pedal immediately and check the surroundings.

• Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds.

NOTICE

When turning right (left-hand drive) or left (right-hand drive) at an intersection, braking is assisted to reduce or avoid collisions if there is a collision risk with a cyclist approaching at the speed of 9 to 12 mph (15 to 20 km/h) from the opposite side.

The Junction Crossing function is warned and controlled by the following level.

• Collision warning

• Emergency braking

• Stopping vehicle and ending brake control

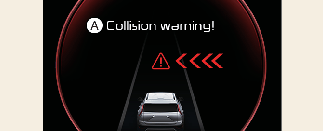

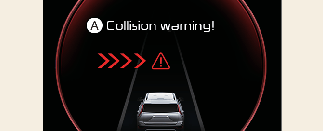

A: Collision Warning!

Collision warning will alert the driver with a warning message, an audible warning and steering wheel vibration.

Collision warning will be activated in the following conditions.

• Your driving speed: Approximately 6~30 mph (10~50 km/h)

• Crossing vehicle speed: Approximately 6~12 mph (10~60 km/h)

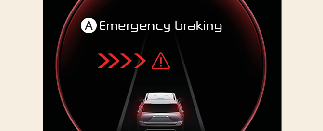

A: Emergency braking

Emergency braking will alert the driver with the warning message, an audible warning and steering wheel vibration. The brake assist will be activated and it helps avoiding collision of a vehicle.

Emergency braking will be activated in following conditions.

• Your driving speed: Approximately 6~19 mph (10~30 km/h)

• Crossing vehicle speed: Approximately 6~12 mph (10~20 km/h)

A: Drive carefully

When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.

For your safety, the driver should depress the brake pedal immediately and check the surroundings.

• Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds.

CAUTION

If the collision angle with the crossing vehicle is beyond a certain range, Junction Crossing Warning and control may be late or may not operate.

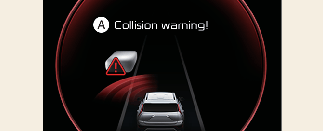

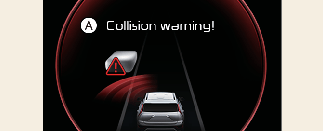

A: Collision Warning!

Collision Warning will alert the driver with the warning message, an audible warning and steering wheel vibration.

Collision warning will be activated in following conditions.

• Your driving speed: Approximately 6~80 mph (10~130 km/h)

• Oncoming vehicle speed: Approximately above 6 mph (10 km/h)

• Relative speed: Approximately below 84 mph (140 km/h)

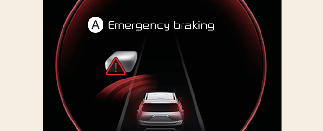

A: Emergency braking

Emergency braking will alert the driver with the warning message, an audible warning and steering wheel vibration.

Emergency braking will be activated inthe following conditions.

• Your driving speed: Approximately 19-80 mph (30~130 km/h)

• Oncoming vehicle speed: Approximately above 6 mph (10 km/h)

A: Drive carefully

When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.

For your safety, the driver should depress the brake pedal immediately and check the surroundings.

• Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds

CAUTION

If your vehicle or the oncoming vehicle is not driving straight, Front Oncoming function warning and control may be late or may not operate.

The Lane-change oncoming function is warned and controlled by the following level.

• Collision warning

• Emergency steering

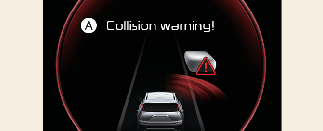

A: Collision Warning!

Collision Warning will alert the driver with the warning message, an audible warning and steering wheel vibration.

Collision warning will be activated in the following conditions.

• Your driving speed: Approximately 25~90 mph (40~145 km/h)

• Oncoming vehicle speed: Approximately above 6 mph (10 km/h)

• Relative speed: Approximately below 124 mph (200 km/h)

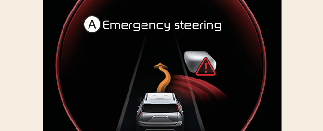

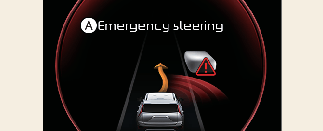

A: Emergency Steering

To warn the driver that emergencysteering will be assisted, the warningmessage will appear on the cluster, and an audible warning will sound and the steering wheel will vibrate.

Emergency steering will be activated in following conditions.

• Your driving speed: Approximately 25~90 mph (40~145 km/h)

• Oncoming vehicle speed: Approximately above 6 mph (10 km/h)

• Relative speed: Approximately below 124 mph (200 km/h)

The Lane-change side function is warned and controlled by the following level.

• Collision warning

• Emergency steering

A: Collision Warning!

To warn the driver of a collision, the warning message will appear on the cluster, and an audible warning will sound and the steering wheel will vibrate.

• Your driving speed: Approximately 25~90 mph (40~145 km/h)

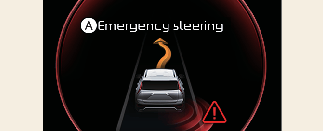

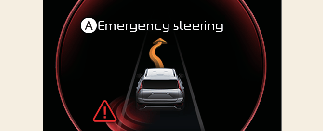

A: Emergency Steering

To warn the driver that emergencysteering will be assisted, the warningmessage will appear on the cluster, and an audible warning will sound and the steering wheel will vibrate.

The warning light on the outside rear view mirror (side view mirror) will appear when the vehicle on both lanes is detected from the rear. Steering will be assisted to avoid collision.

Emergency steering will be activated in following conditions.

• Your driving speed: Approximately 25~90 mph (40~145 km/h)

• Vehicle or powered two-wheeler in the next lane: Driving

CAUTION

• Lane-Change Side function does not operate if the oncoming vehicle from the front side is stopped.

• The detecting area of front and rear corner radar is determined by a standard lane width of the standard road. The warning may appear from the vehicle driving on the next lane for narrow roads. Or, the warning may not appear due to not detecting vehicle on the next lane for wide roads.

• Lane change side function is deactivated in following conditions:

  • Approaching to next lane for standard amount of distance

  • Getting away from the collision hazard direction

  • Sharply steering the vehicle

  • Depressing the brake pedal

  • Forward Collision-Avoidance Assist is operating

• After Lane change side function is activated or lane change is done, move your vehicle to the center of the lane afterwards.

  Lane change side function will not operate when the vehicle is not being driven on the center of the lane.

NOTICE

Emergency steering will only warn the driver about the danger if additional accidents are expected.

The Evasive Steering Assist function is warned and controlled by the following level.

• Emergency Steering

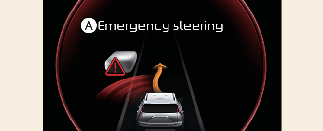

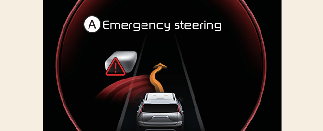

A: Emergency Steering

To warn the driver that emergency steering will be assisted, the warning message will appear on the cluster, and an audible warning will sound and the steering wheel will vibrate. If there is a risk of collision with a vehicle, pedestrian and cyclist in front, the steering will be assisted to help prevent collision when the driver steers the vehicle to avoid collision.

Emergency Steering will be activated in following conditions.

• Your driving speed: Approximately 25~53 mph (40~85 km/h)

A: Emergency Steering

To warn the driver that emergency steering will be assisted, the warning message will appear on the cluster, and an audible warning will sound and the steering wheel will vibrate. If there is high risk of collision with a pedestrian and cyclist in front, and the vehicle speed to operate emergency braking is within the operation range, the steering will be assisted to help prevent collision when there is space to avoid collision in the driving lane.

Emergency Steering will be activated in following conditions.

• Your driving speed: Approximately 40~47 mph (65~75 km/h)

The recognized pedestrian or cyclist moves in the same direction as your vehicle, or in the opposite direction. In addition, there is sufficient space for an evasive movement for your vehicle. However, this function may not operate for pedestrians or cyclists moving in the horizontal direction

CAUTION

• The steering wheel may turn automatically when emergency steering is operating.

• Emergency steering will automatically cancel when risk factors disappear. If necessary, the driver must steer the vehicle.

• Emergency steering may not operate or may cancel during operation if the steering wheel is held tight or steered in the opposite direction.

• When steering is assisted to avoid collision with a vehicle, pedestrian and cyclist, Evasive steering assist will be canceled if collisions with other objects (vehicles, pedestrians, or cyclists) are expected.

• Evasive steering assist may not operate if space to avoid collision in the driving lane is insufficient.

NOTICE

For more details on warning messages, refer to More Details.

WARNING

• For your safety, change the Settings after parking the vehicle at a safe location.

• Forward Collision-Avoidance Assist does not operate in all situations or cannot avoid all collisions.

• The driver should hold the responsibility to control the vehicle. Do not solely depend on Forward Collision-Avoidance Assist. Rather, maintain a safe braking distance, and if necessary, depress the brake pedal to reduce driving speed or to stop the vehicle.

• Never deliberately operate Forward Collision-Avoidance Assist on people, objects, etc. It may cause serious injury or death.

• Forward Collision-Avoidance Assist may not operate if the driver depresses the brake pedal to avoid collision.

• Depending on the road and driving conditions, Forward Collision-Avoidance Assist may warn the driver late or may not warn the driver.

• During Forward Collision-Avoidance Assist operation, the vehicle may stop suddenly injuring passengers and shifting loose objects. Always have the seat belt on and keep loose objects secured.

• If any other function's warning message is displayed or audible warning is generated, Forward Collision-Avoidance Assist warning message may not be displayed and audible warning may not be generated.

• You may not hear the warning sound of Forward Collision-Avoidance Assist if the surrounding is noisy.

• Forward Collision-Avoidance Assist may turn off or may not operate properly or may operate unnecessarily depending on the road conditions and the surroundings.

• Even if there is a problem with Forward Collision-Avoidance Assist, the vehicle's basic braking performance will operate properly.

• During emergency braking, braking control by Forward Collision-Avoidance Assist will automatically cancel when the driver excessively depresses the accelerator pedal or sharply steers the vehicle.

CAUTION

• Depending on the condition of the vehicle, motorcycle, pedestrian and cyclist in front and the surroundings, the speed range to operate Forward Collision-Avoidance Assist may reduce. Forward Collision-Avoidance Assist may only warn the driver, or it may not operate.

• Forward Collision-Avoidance Assist will operate under certain conditions by judging the risk level based on the condition of the oncoming vehicle, driving direction, speed and surroundings.

• When a collision with a surrounding vehicle is expected, Lane-change oncoming, Lane-change side and Evasive steering assist functions will only warn the driver. (if equipped)

NOTICE

• When a collision is imminent, the Forward Collision-Avoidance Assist may assist the driver with brakes if the driver fails to brake enough.

• The images or colors may be displayed differently depending on the specifications of the instrument cluster or theme.
