Electronic child safety lock system

Front Wiper Motor

Air Conditioner Control Module

Front Radar

VCU, IBU

Driver/Passenger Power Outside Mirror

Liftgate open Relay

Rear Wiper Relay, Rear Wiper Motor

Stop Lamp Switch, P/WDW Main SW, Digital Key 2 Touch Unit

Instrument Cluster, Head Up Display

V2L(Vehicle To Load)

Audio/ Navigation Head Unit, Charging Ind, Instrument Cluster, Air Conditioner Control Module, PTC Heater Unit

IBU (Integrated Body Control Unit)

Sunroof Controller (Blind Motor)

SCU (Shift by wire Control Unit), Console Switch

Front Air Ventilation Seat Control Module, Front Seat Warmer Control Module

Multifunction Switch

IBU (Integrated Body Control Unit)

SCU (Shift by wire Control Unit)

Battery Management System Unit

Battery Management System

SRS (Supplemental Restraint System) Control Module

Power Window Main Switch

SCU (Shift by wire Control Unit), Console Switch

IBU (Integrated Body Control Unit), ADAS Driving ECU, ADAS Parking ECU, VESS (Virtual Engine Sound System) UNIT, FRONT VIEW CAMERA, CRASH PAD SWITCH, OVERHEAD CONSOLE, FRONT/REAR CORNER RADAR

Instrument Cluster, Head Up Display, Mood Lamp, Air Conditioner Control Module

AMP (Amplifier)

Power Window Main Switch, Passenger Power Switch

IBU (Integrated Body Control Unit), Digital Key 2 Touch Unit

Head Lamp Leveling Device, Audio/ Navigation Head Unit, Wireless Smart Phone Charging System, ADAS Driving ECU, Overhead Console Lamp, Electric Chromic Mirror, Amp (Amplifier), Seat Warmer Control Module

Motor Driven Power Steering Unit

USB CHARGER (FRONT TRAY/ SEAT Driver/ Passenger)

DIGITAL KEY 2 TOUCH UNIT

IBU (Integrated Body Control Unit), Stop Lamp Switch

Driver Power Seat Switch, Driver IMS (Integrated memory system) Control Module

Air Conditioner Control Module

SRS (Supplemental Restraint System) Control Module

Engine Room Junction Block (PCB Block Fuse - IEB4, ECU1)

AMP (Amplifier), IBU, ADAS Parking ECU, Audio/ Navigation Head Unit, Engine Room Junction Block (P/Outlet Relay), Digital Key 2 Touch Unit

Audio (Display), Audio/Video & Navigation Head Unit

Center Door Lock lock Relay

Hazard Switch, Rain Sensor, Steering Wheel Remote Control, ADAS Driving ECU, Power Liftgate Unit, Power Seat, Outside Mirror, Engine Room Junction Block (Blower Relay)

Passenger Power Seat Switch, Passenger Seat Relay Unit

Rear Seat Warmer Control Module

ADAS Parking ECU, AC Inverter, Seat Warmer Control Module

Fuse (IEB2, EOP, Inverter, Power Outlet)

Motor Driven Power Steering Unit

* MDPS is the same as EPS (Electric Power Steering).

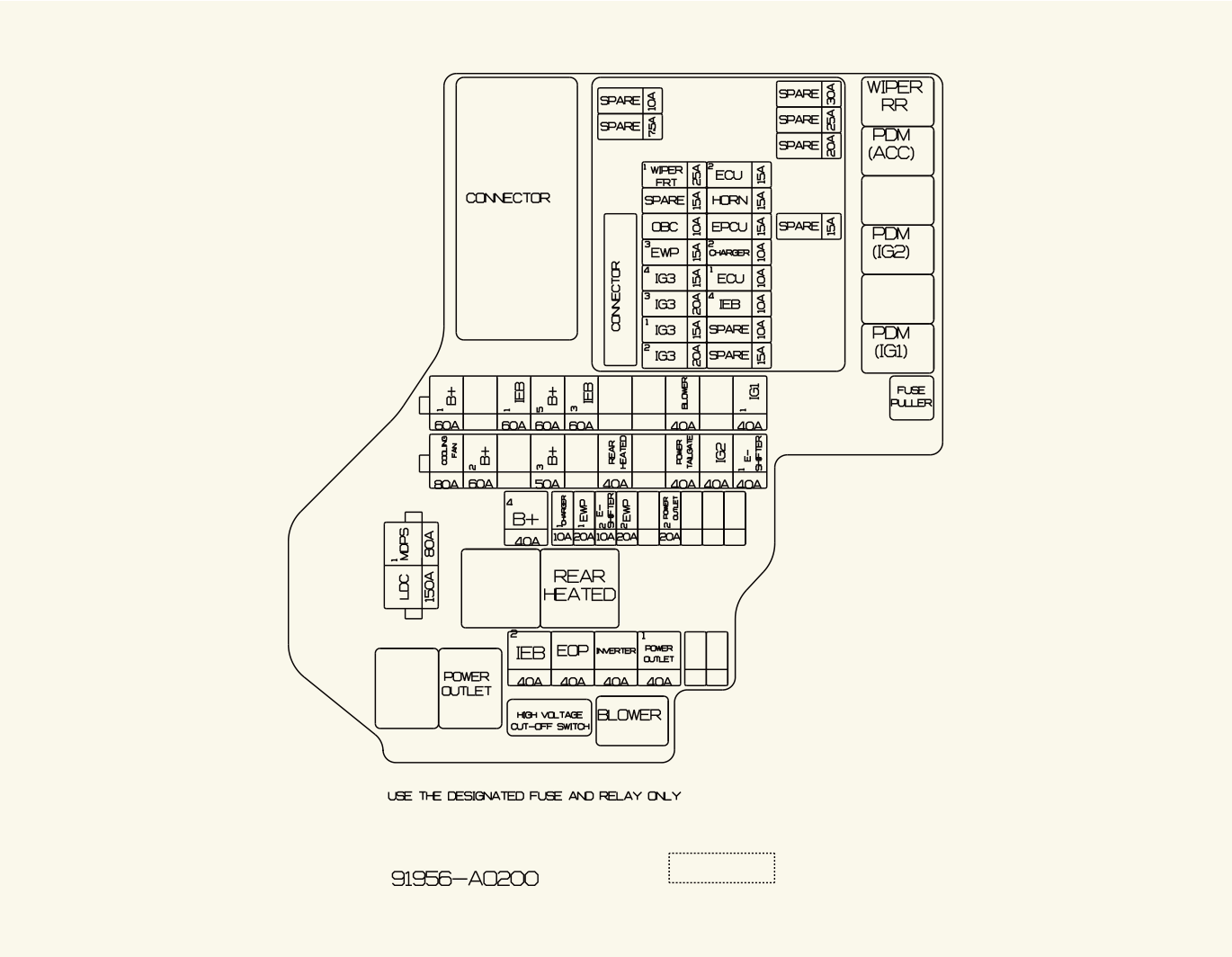

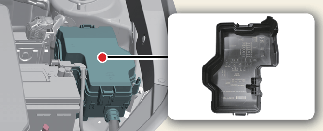

Engine Room PCB Junction Block

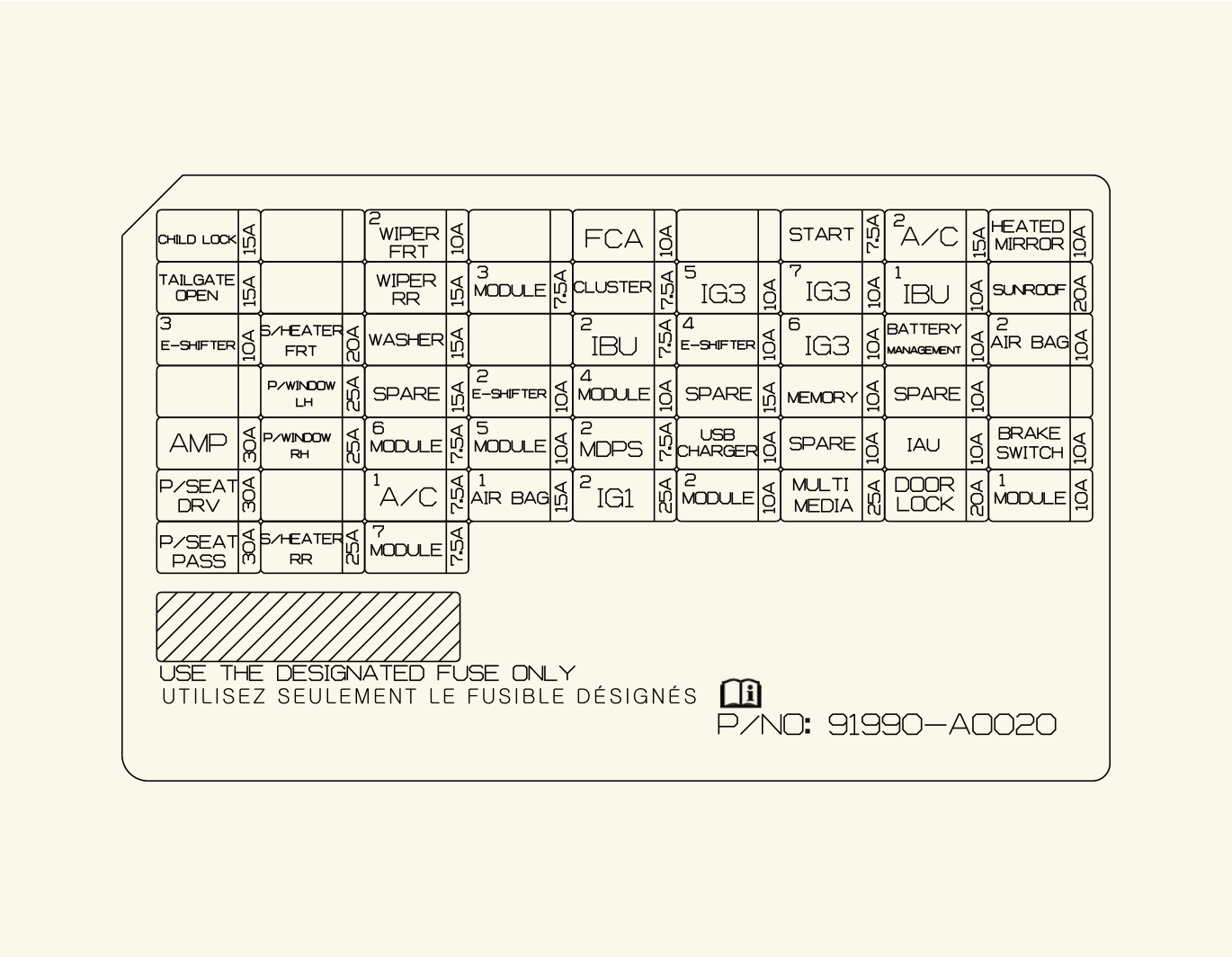

ICU Junction Block (FUSE -MODULE2, USB CHARGER, A/BAG1, IBU2, MDPS2, CLUSTER, MODULE3, MODULE4, MODULE5, E-SHIFTER5, FCA, ING1 2 )

ICU Junction Block (IPS)

IEB (Integrated Electronic Brake Module)

IEB (Integrated Electronic Brake Module)

Blower Relay

Cooling Fan Controller

Rear Heated Relay

ICU Junction Block (IPS)

ICU Junction Block (FUSE - E-SHIFTER3, P/WDW LH, P/WDW RH, T/GATE OPEN, AMP, P/SEAT DRV, P/SEAT PASS, S/HEATER FRT, S/HEATER RR, CHILD LOCK)

Power Liftgate Unit

ICU Junction Block (FUSE - WASHER, A/C1, MODULE6, MODULE7, WIPER RR)

SCU (Shift by wire Control Unit)

ICU Junction Block (FUSE - MULTIMEDIA, MEMORY, A/C2 AIR BAG2 , BRAKE SWITCH, MODULE1, IBU1, SUNROOF, BATTERY MANAGEMENT, DOOR LOCK, IAU)

IEB (Integrated Electronic Brake Module)

CDM (Charge Door Module)

Battery Electronic Water Pump

Battery Electronic Water Pump

Front Power Outlet

AC Inverter

Front Electronic Oil Pump

SCU (Shift by wire Control Unit)

Front Power Outlet

Front Wiper Motor

Front Inverter

HORN

VCMS, ICCU_SIG

Electronic Water Pump

Inverter, VCU

Electronic Water Pump

VCU

VCMS, ICCU_SIG, COOLING FAN, CDM, A/C COMP

IEB (Integrated Electronic Brake Module)

Charger Lock, Unlock Relay

FRONT ELECTRONIC OIL PUMP, 3WAY VALVE BATT, ICU IG3 FUSE(IG3 7, IG3 5, E-SHIFTER 4, IG3 6)

VCU
