Replacing the front wiper blade
Operation
-
Turn off the vehicle.
-

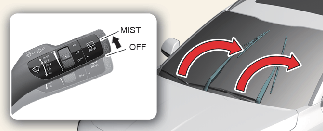

Move the wiper switch to the single wiping (MIST) position within 20 seconds.
-
Hold the wiper switch for more than 2 seconds.
Type A
-
Raise the wiper arm.
-

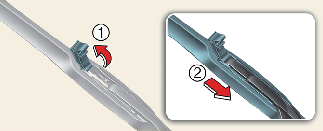

Lift the wiper blade clip up (1). Pull down the blade assembly and remove it (2).
-
Install the new blade assembly.
-
Upon starting the vehicle, the wiper arms will return to their normal operating position.
Type B
-
Raise the wiper arm.
-
Turn the wiper blade assembly to expose the plastic locking clip.
-

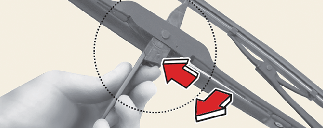

Compress the clip and slide the blade assembly downward.
-
Lift it off the arm.
-
Install the blade assembly in the reverse order of removal.
-
Return the wiper arm on the windshield.
-
Turn the vehicle on and wiper arms will return to the normal operating position.
