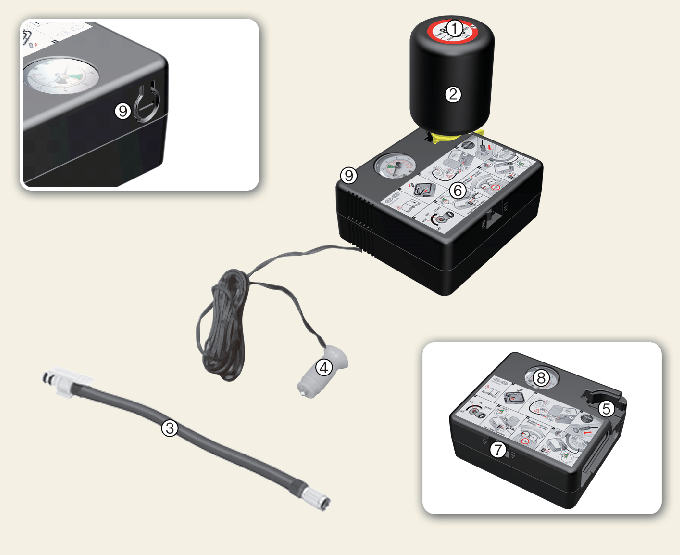

Components of the Tire Mobility Kit

Connectors, cable and connection hose are stored in the compressor housing.

* Connectors, cable and connection hose are stored in the compressor housing.

* Strictly follow the specified sequence, otherwise the sealant may escape under high pressure.

  1. Speed restriction label

  2. Sealant bottle

  3. Sealant bottle filling hose

  4. Power outlet connector

  5. Sealant bottle holder

  6. Compressor

  7. ON/OFF switch

  8. Tire inflation pressure gauge

  9. Tire inflation pressure valve

WARNING

Expired sealant

Do not use the Tire sealant after the sealant has expired (i.e. past the expiration date on the sealant container). This can increase the risk of tire failure.

WARNING

Sealant

  • Keep out of reach of children.

  • Avoid contact with eyes.

  • Do not swallow.

WARNING

Before using the Tire Mobility Kit, follow the instructions on the sealant bottle.

Remove the label with the speed restriction from the sealant bottle and apply it to the steering wheel.

Please note the expiration date on the sealant bottle.

NOTICE

The sealant bottle and insert hose (3) cannot be reused.

CAUTION

Before using the tire repair kit, please read carefully the instruction attached on the sealant bottle. Detach the speed limit label on the sealant case and put it on a highly visible place. Always drive within the speed limit.
