Forward Collision-Avoidance Assist (FCA) (Sensor fusion) (if equipped)

FCA is designed to detect and monitor a vehicle ahead or detect a pedestrian or a cyclist in the roadway through front view camera recognition and front radar signals to warn the driver that a collision is imminent, and if necessary, apply emergency braking.

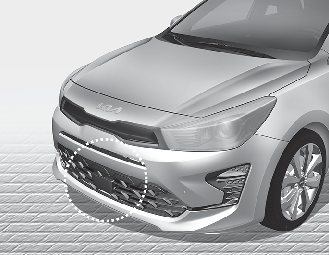

Detecting sensor

Front view camera

Front radar

Warning

Forward Collision-Avoidance Assist Limitations

FCA is a supplemental function and is not a substitute for safe driving practices.

It is the responsibility of the driver to always check the speed and distance to the vehicle ahead and to be prepared to apply the brakes.

Warning

Take the following precautions when using Forward Collision-Avoidance Assist :

This function is only a supplemental function and it is not intended to, or does it replace the need for extreme care and attention of the driver. The sensing range and objects detectable by the sensors are limited. Pay attention to the road conditions at all times.
NEVER drive too fast in accordance with the road conditions or whilst cornering.
Always drive cautiously to prevent unexpected and sudden situations from occurring. FCA does not stop the vehicle completely and does not avoid all collisions due to function limitations.

Contains Topics: Function settings; FCA warning message and function control; Brake operation; Warning message and warning light; Function malfunction; Limitations of FCA; Situation in which the function may not detect pedestrian and cyclist properly.
