Static bending light replacement (Headlamp Type B)

  1. Open the bonnet.

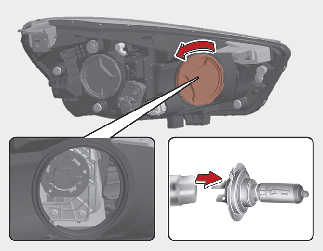

  2. Remove the headlamp bulb cover by turning it counterclockwise.

  3. Disconnect the static bending light bulb socket-connector.

  4. Unsnap the static bending light bulb retaining wire by pressing the end and pushing it upward.

  5. Remove the bulb from the head lamp assembly.

  6. Install a new static bending light bulb and snap the static bending light bulb retaining wire into position by aligning the wire with the groove on the bulb.

  7. Connect the static bending light bulb socket-connector.

  8. Install the headlamp bulb cover by turning it clockwise.
