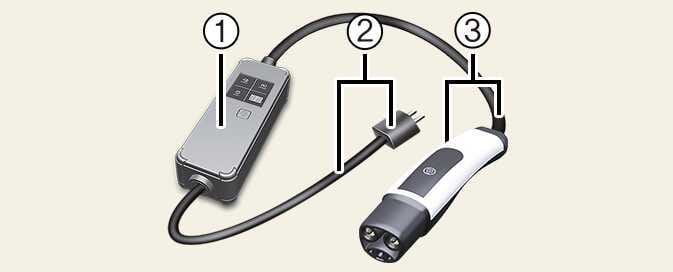

Setting the charge level of the portable charger

OCVQ011107N

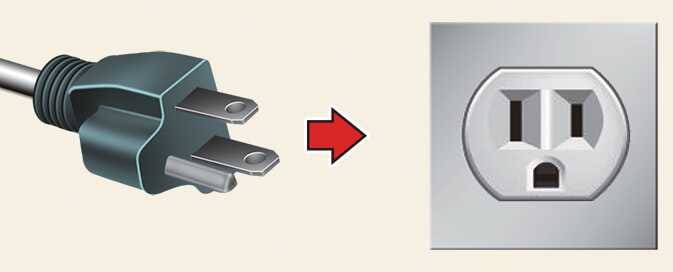

1. Check the rated current of the electric outlet prior to connecting the plug to the outlet.

2. Connect the plug to a household electric outlet.

3. Check the display window on the control box.

4. Press the button (1) on the back of the control box for 2 to 8 seconds to adjust the charge level. (Refer to charging cable type and example for setting the charge level.)

   OCVQ011021L

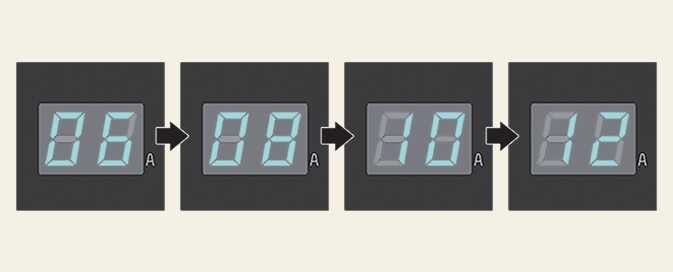

5. The charge level on the display window of the control box changes every time you press the button (1).

6. When setting the charge level is complete, start charging according to the portable charge procedure.

OCVQ011023L

Charging status indicator lamp for portable charger

OCVQ011026L

Indicator		Details
POWER		On: Power on
CHARGE		On: Charge Blink: Current limit due to high plug temperature or high internal temperature
FAULT		Blink: Charging interrupted
CHARGE LEVEL	12	12 A
	10	10 A
	08	8 A
	06	6 A
	The charging current changes whenever the button (1) is pressed for less than 1 sec with the charger plugged into an electrical outlet but not the vehicle. OCVQ011021L

Status/Diagnosis/Countermeasure

OCVQ011024

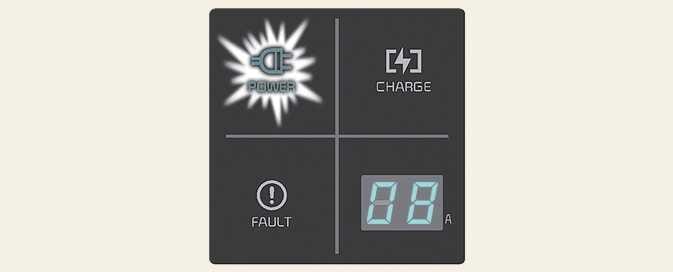

• Charging connector plugged into vehicle (POWER Green ON)

• Plug connected to an electric outlet (POWER Green ON)

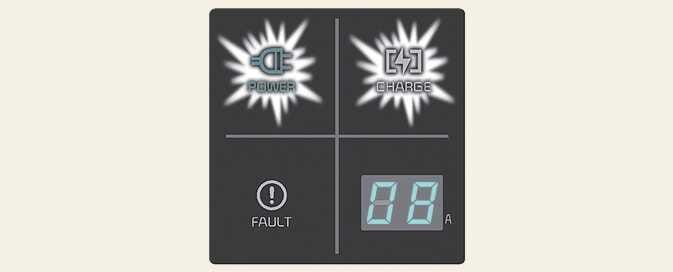

While charging

OCVQ011025

• Charge indicator (POWER Green ON/CHARGE Blue ON)

• Charging current

Before plugging charging connector into vehicle (POWER Green ON, FAULT Red blink)

OCVQ011027L

• Abnormal temperature

• ICCB (In-Cable Control Box) failure

Plugged into vehicle (POWER Green ON, FAULT Red Blink)

OCVQ011027L

• Diagnostic device failure

• Current leakage

• Abnormal temperature

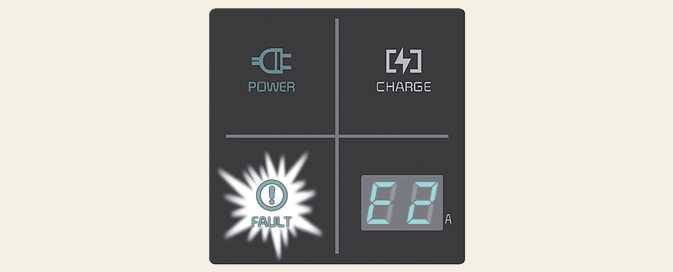

Leakage current failure (POWER Green ON, FAULT Red Blink)

OCVQ011028L

• Disconnect and reconnect the power plug to clear the error.

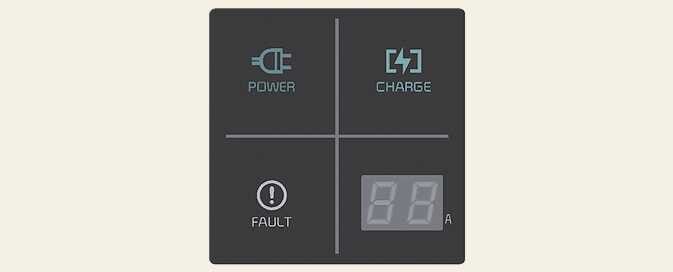

Power saving mode

OCVQ011029L

• Charge level indicator is turned off if there is no status change for more than 1 minute.
