Portable charging cable (Type B)

OMVQ015100N

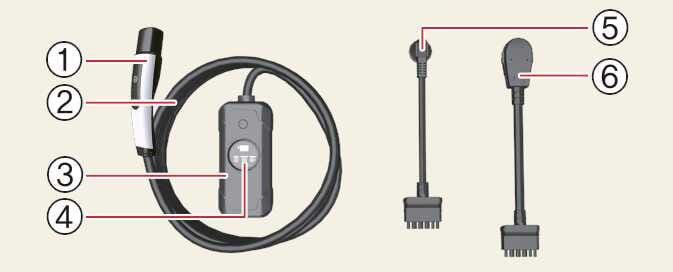

  1. Charging Connector

  2. Cable

  3. Control Box (ICCB)

  4. Display

  5. Detachable Connector (5-15P)

  6. Detachable Connector (14-50P)

Description

Specifications

Voltage

120 V / 240 V AC single-phase

Maximum Current

12A MAX / 30A MAX with different input cord set.

Frequency

60 Hz

Cable Length

20 ft(6.1 m)

Weight

9.0 Ibs(4.1 kg)

Operating Temperature

-40 °F to +122 °F(-40 °C to +50 °C).

Enclosure Type

Type 6 (IP67)

Ventilation

Not Required

Charging status indicator lamp for portable charger

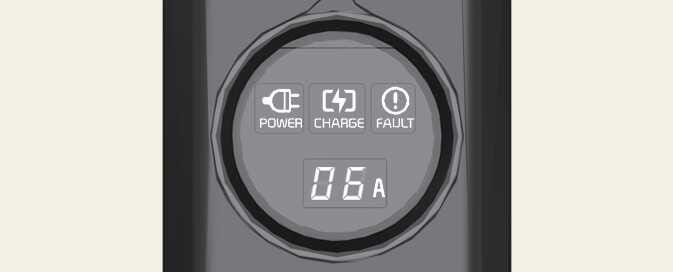

Figure 1. Control Box
ONQ5PQ015010N

Indicator

Details

POWER

On: Power on

CHARGE

On: Charge

Blink: Current limit due to high plug temperature or high Internal temperature

FAULT

Blink: Charging interrupt

CURRENT

Display setting current or trouble shoot code

CHARGE LEVEL

30

30 A

24

24 A

20

20 A

16

16 A

12

12 A

10

10 A

08

8 A

06

6 A

The charging current changes each time the button (1) is pressed, in the following sequence:

  • Detachable Connector (14-50P)

    • 16 A → 20 A → 24 A → 30 A

  • Detachable Connector (5-15P)

    • 6 A → 8 A → 10 A → 12 A

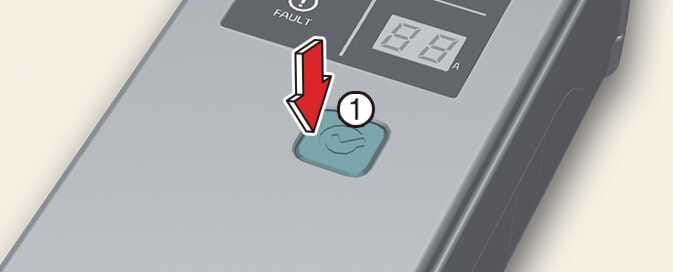

Figure 2. Control box
OCVQ011021L
