How to connect detachable connector

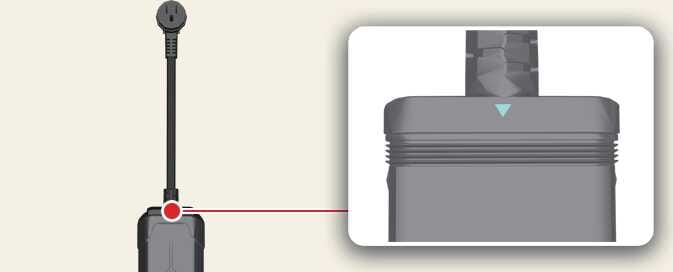

Connect the detachable connector to control box controller socket.
Check the arrow on the top of the connector is no longer visible.
 ONQ5PQ015017N |

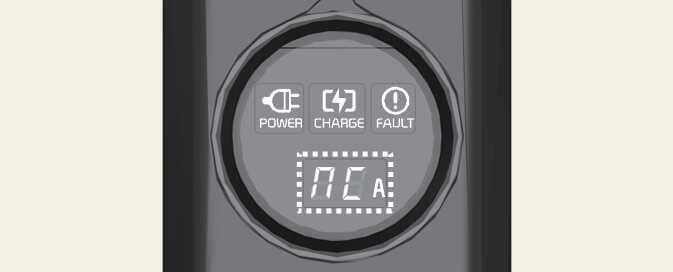

The power lamp (green) illuminates when the ICCB is powered on.
If “NC” is displayed on the ICCB display panel or if the arrow is still visible reconnect the detachable connector properly.
 ONQ5PQ015016N |
Trouble shooting status indicator lamp
|
Indicator |
Details |
||
|---|---|---|---|
|
On : Error while charging / Error during self-diagnosis |
||
|
Error code |
item |
cause |
|
|
E1 |
Control pilot communication |
Vehicle communication error |
|
|
E2 |
leakage |
Current leakage |
|
|
E3 |
Charger error |
||
|
E4 |
Plug temperature |
Plug overtemperature warning |
|
|
E5 |
Plug temperature failure |
||
|
E6 |
Charger error |
||
|
E7 |
Overcurrent |
Charging overcurrent warning |
|
|
E8 |
Internal temperature |
Charger overheating |
|
|
E9 |
Charger error |
||
|
F1 |
Relay fusion |
Charger error |
|
|
F2 |
Ground Monitoring / interrupt |
Poor grounding of outlet |
|
|
A5 |
Charger error |
||
|
F3 |
Switched mode power supply power failure |
Switched mode power supply error (voltage failure) |
|
|
F4 |
Switched mode power supply error (abnormal voltage) |
||
|
F5 |
Control Pilot voltage error |
Control Pilot(-) voltage error |
|
|
F6 |
Control Pilot(+) voltage error |
||
|
F7 |
Temperature sensor error |
Plug temperature sensor error |
|
|
F8 |
PCB Internal temperature sensor error |
||
|
F9 |
Detachable plug temperature sensor error |
||
|
A1 |
Detachable plug temperature |
Detachable plug overtemperature warning |
|
|
A2 |
Charger error |
||
|
A3 |
Detachable plug state |
Charger error |
|
|
A4 |
Detachable plug search error |
||
|
FF |
Control box state |
Charger error |
|
