Adjusting crew space

Securing cargo space

OSWC066032L

  1. Pull the integrated lever to fold the seat cushion, adjust the seatback to the upright position, and move the seat to the foremost position.

  2. To move the seat forward, pull and hold the integrated lever, then push the seat forward.

  3. After adjustment, make sure the seat is securely locked in place.

Securing passenger space (Returning to the original position)

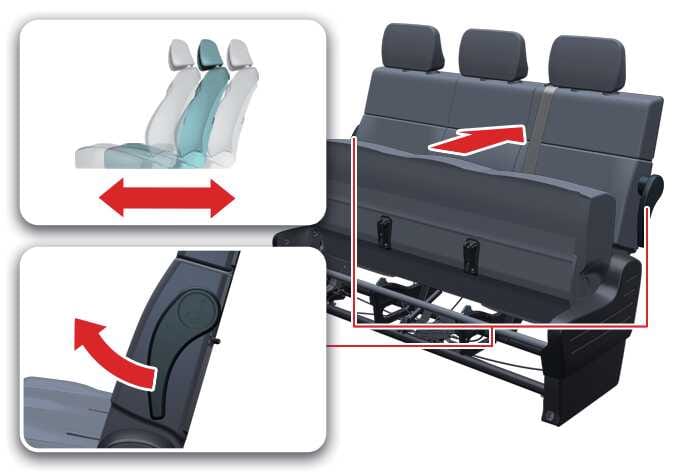

OSWC066042L_2

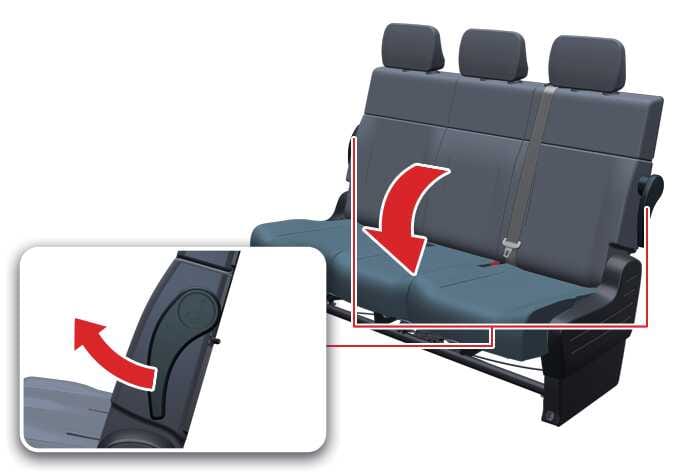

OSWC066034L

  1. Pull the integrated lever to slide the seat rearward to secure sufficient space.

  2. If the seat cushion is folded up, unfold the seat cushion.

  3. Ensure the seatback angle is properly adjusted so the occupant can sit comfortably.

WARNING

Do not install a child restraint system on the rear seat. The rear seat is not equipped with child restraint system anchors. Do not seat infants or children who require a child restraint system, including those under 12 years of age or below the specified height, in the rear seat.

CAUTION

  • Do not push the seat whilst releasing the integrated lever. This may cause noise due to friction between the seat sliding mechanism and the seat rail.

  • Do not sit on the seat or place objects on it whilst adjusting.

  • The seat will rise automatically when the integrated lever is lifted. Keep hands clear to avoid injury.

  • Do not sit on the seat when the integrated lever is not fully engaged or when the seat is in the forward (cargo space) position.

  • Do not sit on the seat when the seat cushion is folded up.

  • Keep hands clear of the partition whilst adjusting the seat.

  • Do not load items or place your hands under the seat cushion. This may cause injury, malfunction, or damage to the mechanism.

  • Do not hold or pull the integrated lever when entering or exiting the vehicle. This may cause damage or malfunction of the lever.

  • Do not apply strong impact or heavy loads to the rear of the seat cushion. This may cause the cushion to fold up unintentionally.
