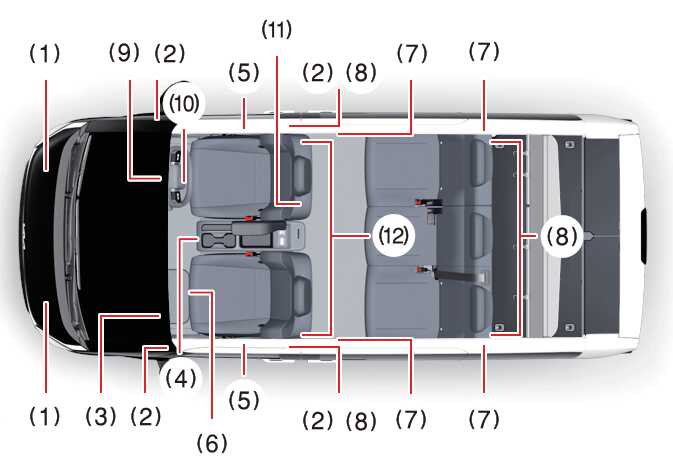

SRS components and functions

OSW025029R

  1. Front impact sensors

  2. Curtain air bag modules

  3. Passenger's front air bag module

  4. SRS control module (SRSCM)/rollover sensor

  5. Side pressure sensors

  6. Passenger's front air bag ON/OFF switch*

  7. Side impact sensors

  8. Retractor pre-tensioner assemblies*

  9. Air bag warning light

  10. Driver's front air bag module

  11. Driver's centre side air bag module

  12. Side air bag modules

The actual features in your vehicle may not necessarily be available due to the selected options or regions.

*: if equipped

Operating condition(s)

  • When EV button is in POWER ON or DRIVE READY position, the SRS air bag warning light will appear for approximately 6 seconds and go out.

WARNING

If any of the following conditions occurs, this indicates a malfunction of the SRS. In this case, have the system inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.

  • The light does not turn on briefly when you turn the vehicle POWER ON or DRIVE READY.

  • The light stays on after illuminating for approximately 6 seconds.

  • The light comes on whilst the vehicle is in motion.

  • The light blinks when the vehicle is in POWER ON or DRIVE READY position.
