Front windscreen wiper blade
OSW075010R

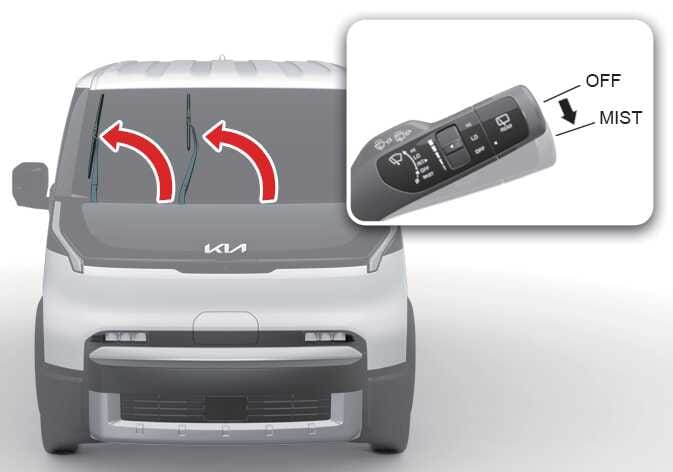

For your convenience, move the windscreen wiper blades to the service position as follows;

After turning off the vehicle, move the wiper switch to the single wiping (MIST) position within 20 seconds and hold the switch more than 2 seconds until the wiper blade is in the fully up position.

CAUTION

Do not allow the wiper arm to fall against the windscreen, since it may chip or crack the windscreen.

  1. Raise the wiper arm.

  2. Lift up the wiper blade clip. Then pull down the blade assembly and remove it.

  3. Install the new blade assembly.

  4. Return the wiper arm on the windscreen.

  5. Turn the EV button to the POWER ON position and wiper arms will return to the normal operating position.
