Replacing rear wiper blade

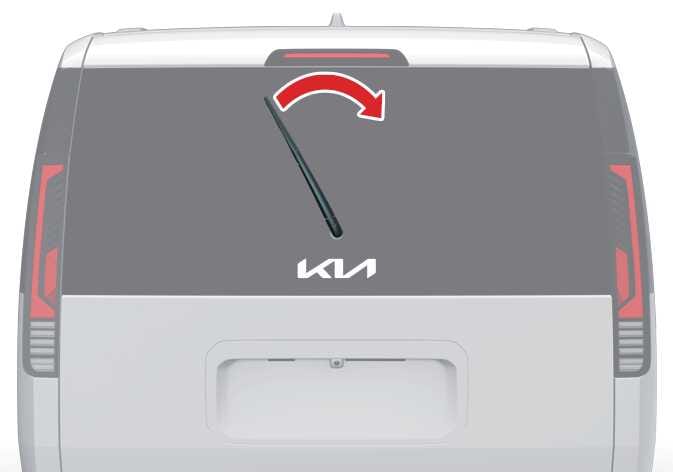

 OSW075011L |
Move the rear wiper to the bottom middle part, and lift up the wiper arm. Pull the wiper blade to remove it.
-
Within 20 seconds after the vehicle is OFF, pull down the wiper lever to MIST position for over 2 seconds until the wiper moves down to the bottom middle part.
-
Raise the wiper arm and pull out the wiper blade assembly.
OSW075018L -
Lift up the wiper blade, and pull the blade to remove it.
-
Install the new blade assembly by inserting the centre part into the slot in the wiper arm until it clicks into place.
If the replacement is complete, put down the wiper arm to place it on the rear windscreen, and turn the vehicle to POWER ON and operate the wipers to check the blade is installed correctly.
If the wiper arm receives too much force whilst pulling the blade, the centre part may be damaged.
-
The wiper could not operate for approx. 10 seconds when the wiper is operated without washer fluid or the blades are frozen. This is not a malfunction, it is a wiper protection system activated by motor overload circuit within the wiper motor.
-
The front windscreen should be cleaned with water hose and wiped with clean towel with wiper blades raised up. Also, the wiper blades should be wiped clean when the grease or wax is applied to the blades.
