Headrest (for front seat)

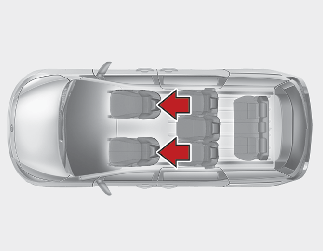

The driver's and front passenger's seats are equipped with a headrest for the occupant's safety and comfort.

The headrest not only provides comfort for the driver and front passenger, but also helps protect the head and neck in the event of a collision.

To maximize the effectiveness in case of accidents, the headrest should be adjusted so the middle of the headrest is as high as the center of gravity of an occupant's head. Generally, the center of gravity of most people's heads is similar with the height as the top of their eyes.

Also, adjust the headrest as close to your head as possible. For this reason, the use of a cushion that holds the body away from the seatback is not recommended.

WARNING

Headrest removal/adjustment

  • Do not operate the vehicle with the headrests removed. Headrests can provide critical neck and head support in a crash.

  • Do not adjust the headrest height while the vehicle is in motion. Driver may lose control of the vehicle.

CAUTION

Excessive pulling or pushing may damage the headrest.

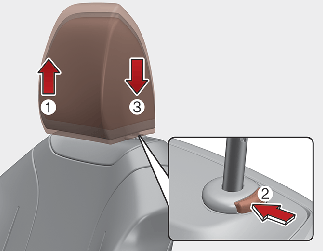

Adjusting the height up and down

To raise the headrest:

  1. Pull it up to the desired position (1).

  2. To lower the headrest, push and hold the release button (2) on the headrest support.

  3. Lower the headrest to the desired position (3).

WARNING

Make sure the headrest locks in position after adjusting it to properly protect the occupants.

CAUTION

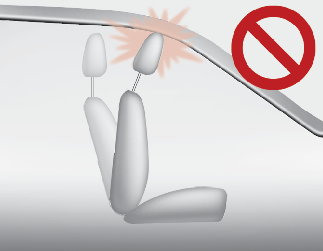

If you recline the seatback towards the front with the headrest and seat cushion raised, the headrest may come in contact with the sun visor or other parts of the vehicle.

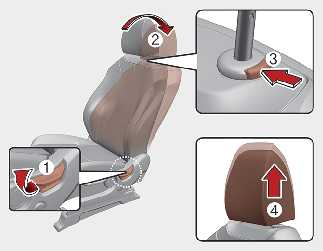

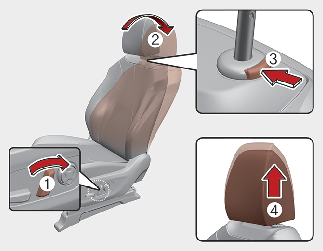

Removing headrest

Type A
Type B

To remove the headrest:

1
Recline the seatback (2) with the recline lever or switch (1).
2
Raise headrest as far as it can go.
3
Press the headrest release button (3) while pulling the headrest up (4).
WARNING

Removing headrest

NEVER allow anyone to ride in a seat with the headrest removed or reversed. Headrests can provide critical neck and head support in a crash.

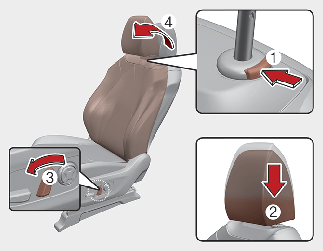

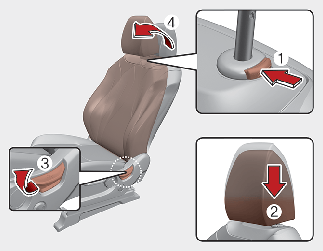

Reinstalling headrest

Type A
Type B

To reinstall the headrest:

1
Recline the seatback (4) with the recline lever or switch (3).
2
Put the headrest poles (2) into the holes while pressing the release button (1).
3
Adjust the headrest to the appropriate height.
WARNING

Headrest reinstallation

To reduce the risk of injury to the head or neck, always make sure the headrest is locked into position and adjusted properly after reinstalling.
