• You can change Surround View Monitor 'Display Contents' or 'Display Settings' by touching the setup icon () on the screen while Surround View Monitor is operating, or selecting 'Driver Assistance → Parking Safety → Camera Settings' from the Settings menu while the engine is on.

• In the Display Contents, you can change settings for 'Top View Parking Guidance', 'Rear View Parking Guidance' and 'Parking Distance Warning'.

• In the Display Settings, you can change the screen's 'Brightness' and 'Contrast'.

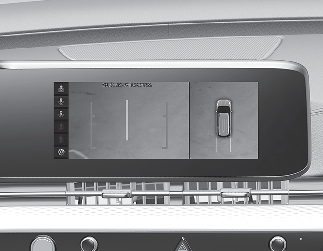

Front top view

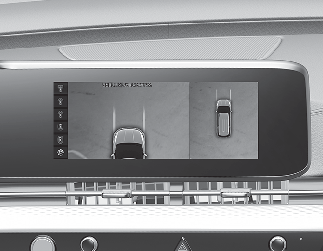

Rear top view

• When the 'Top View Parking Guidance' is selected, parking guidance is displayed on the right side of the Surround View Monitor screen.

• You may see the front top view or the rear top view when using front top view and Top View Parking Guidance.

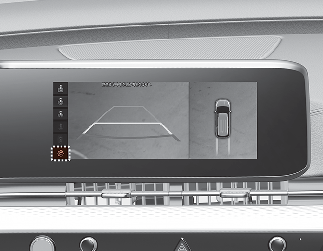

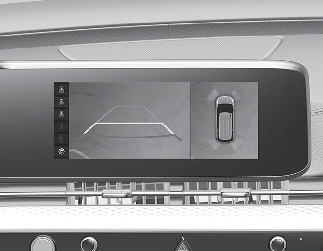

• When the 'Rear View Parking Guidance' is selected, parking guidance is displayed in the rear view.

• The horizontal guideline of the Rear View Parking Guidance shows the distance of 1.6 ft. (0.5 m), 3.3 ft. (1 m) and 7.6 ft. (2.3 m) from the vehicle.

• When the 'Parking Distance Warning' is selected, parking distance warning is displayed on the right side of the Surround View Monitor screen.

• The image will be displayed only when Parking Distance Warning is warning the driver.

With the engine on, select 'Driver Assistance → Parking Safety → Surround View Monitor Auto On' from the cluster or infotainment system Settings menu to use the function.

To use this function, refer to More Details.
