Malfunction and limitations

Malfunction

After starting the engine, a beep will sound when the gear is shifted to R (Reverse) to indicate the function is operating normally.

However, if one or more of the following occurs, first check whether the ultrasonic sensor is damaged or blocked with foreign material. If it still does not work properly, have the function be inspected by an authorized Kia dealer.

  • The audible warning does not sound.

  • The buzzer sounds intermittently.

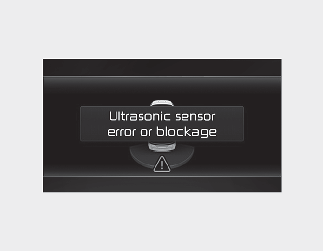

  • The 'Parking sensor error or blockage' warning message on the cluster

WARNING

  • Even vehicles equipped with Parking Distance Warning, drive carefully and always look around your vehicle to make sure there are no objects or obstacles behind. The operation of the function can be affected by environmental conditions. It is the responsibility of the driver to always check the rear view before and while parking.

  • Your new vehicle warranty does not cover any accidents or damage to the vehicle due to the malfunction of Reverse Parking Distance Warning.

  • Pay close attention when driving near objects, pedestrians, and especially children. Some objects may not be detected by the ultrasonic sensors, due to the objects distance, size or material, all of which can limit the effectiveness of the sensor.

Limitations

  • Reverse Parking Distance Warning may not operate normally when:

    • Moisture is frozen to the sensor

    • Sensor is covered with foreign material, such as snow or water (The function will operate normally when such foreign material are removed.)

    • The weather is extremely hot or cold

    • The sensor or sensor assembly is disassembled

    • The surface of the sensor is pressed hard or an impact is applied with a hard object

    • The surface of the sensor is scratched with a sharp object

    • The sensors or its surrounding area is directly sprayed with high pressure washer

  • Reverse Parking Distance Warning may malfunction when:

    • Heavy rain or water spray is present

    • Water flows on the surface of the sensor

    • Affected by another vehicle's sensors

    • The sensor is covered with snow

    • Driving on uneven road, gravel roads or bushes

    • Objects that generates ultrasonic waves are near the sensor

    • Installing the license plate differently from the original location

    • The vehicle bumper height or ultrasonic sensor installation has been modified

    • Attaching equipments or accessories around the ultrasonic sensors

  • The following objects may not be detected:

    • Narrow objects, such as corners of square pillar

    • Objects, which tend to absorb sensor frequency, such as clothes, spongy material or snow.

    • Objects smaller than 40 in. (100 cm) in length and narrower than 6 in. (14 cm) in diameter.

    • Pedestrians, animals or objects that are very close to the ultrasonic sensors

  • Parking Distance Warning Indicators may be displayed differently from the actual detected location when the obstacle is located between the sensors.

  • Parking Distance Warning may not occur sequentially depending on vehicle speed or obstacle shape.

  • If Reverse Parking Distance Warning needs repair, have the function be inspected by an authorized Kia dealer.
