Rear seat adjustment (VIP Lounge Seat) (if equipped)

CAUTION

  • Passenger’s attention is required when the VIP Lounge Seat is operating.

  • Be careful not to pinch your body or objects while the seat is operating. (Do not operate the Seat if you have a 3rd row seat occupant or other load.)

  • Do not operate two types of seat controls (switches) at the same time as this can damage the seat system.

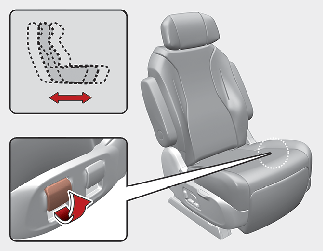

Forward and backward adjustment (VIP Lounge Seat)

To move the seat forward or backward:

  1. Pull the seat slide adjustment lever up and hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move forward and backward without using the lever. If the seat moves, it is not locked properly.

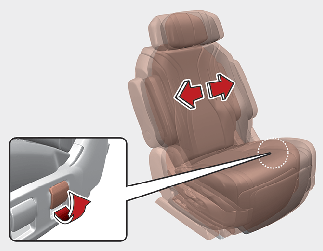

Left and right adjustment (VIP Lounge Seat)

To move the seat left side or right side:

  1. Pull the seat slide adjustment lever up and hold it.

  2. Slide the seat to the position you desire.

  3. Release the lever and make sure the seat is locked in place.

Adjust the seat before driving, and make sure the seat is locked securely by trying to move left side and right side without using the lever. If the seat moves, it is not locked properly.

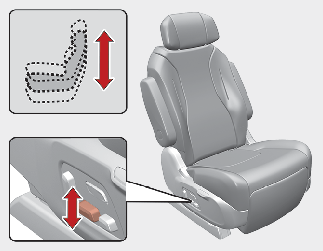

Seat cushion height adjustment (VIP Lounge Seat)

To change the height of the seat cushion:

  1. Push the lever upwards or downwards to adjust the seat cushion height.

  2. Release the switch once the seat reaches the desired position.

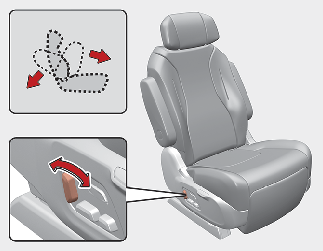

Seatback angle (VIP Lounge Seat)

To recline the seatback:

  1. Push the control switch forward or backward to move the seatback to the desired angle.

  2. Release the switch once the seat reaches the desired position.

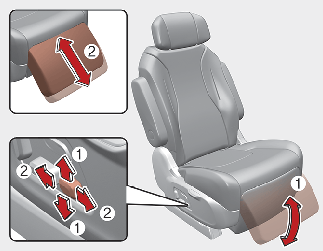

Leg support (VIP Lounge Seat)

To use the leg support:

  1. Pull the leg support lever up and hold it.

  2. Adjust the angle (1) and length (2) of the leg support while holding the leg support. When using the leg rest, move the seat to the inner position, and then toward the back. If the seat is not moved far back, it may come in contact with the first row seat.

  3. Release the switch and make sure the leg support is locked in place.

The leg support length switch operates after the leg support has been raised by more than a certain angle to prevent damage to parts due to floor interference.

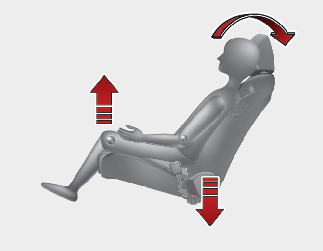

VIP Lounge Seat (VIP Lounge Seat)

VIP Lounge Seat distribute body pressure and concentrated weight on specific body parts that occur while sitting in the same position for a long period of time. The seat relieves fatigue and discomfort by providing the optimal sit position.

CAUTION

Take the following precautions when using the VIP Lounge Seat:

  • Do not use the VIP Lounge Seat while the vehicle is moving. Using the VIP Lounge Seat could increase the risk of injuries in the event of a collision or sudden stop.

  • Do not use the VIP Lounge Seat while the vehicle is moving. The shoulder belt may not adhere to your chest firmly.

VIP Lounge Seat function

[A]: Moves simultaneously

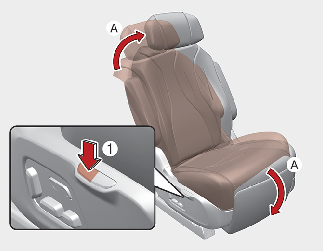

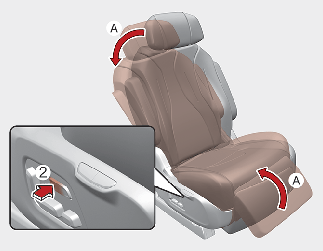

If you push down the one touch switch (1), the seat will be adjusted to the VIP Lounge position without leg support. If you push the switch (2), the seat will be slightly adjusted to the desired VIP Lounge position with leg support.

Return function

[A]: Moves simultaneously

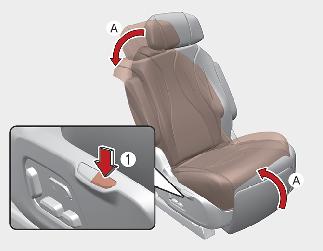

If you push down the one touch switch (1), the seat will return to the previous position. If you push the switch (2), the seat will be slightly adjusted to the previous position.
