Filter inspection
The climate control air filter should be replaced according to the maintenance schedule. If the vehicle is operated in severely
air-polluted cities or on dusty rough roads for a long period, it should be inspected more frequently and replaced earlier.
When you replace the climate control air filter, replace it performing the following procedure, and be careful to avoid damaging
other components.
1

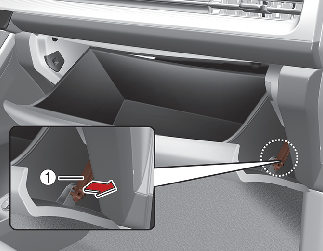

Open the glove box and remove the stoppers (1) on the right side.
2
With the glove box open, pull the support strap.
3

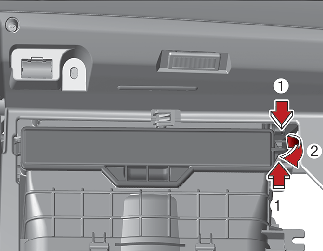

Remove the climate control air filter cover by pulling out both sides of the cover.
4
Replace the climate control air filter.
5
Reassemble in the reverse order of disassembly.
