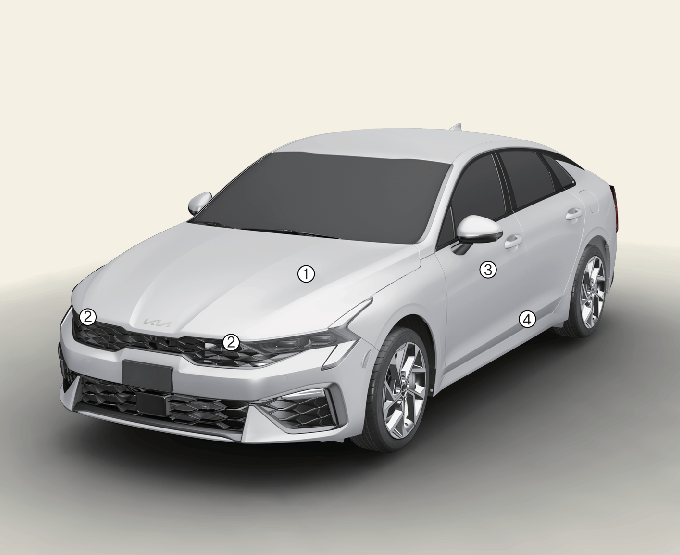

Airbag collision sensors
|
1 |
 |
2 |
 |
3 |
 |
4 |
 |
* The actual shape and position of sensors may differ from the illustration.
-

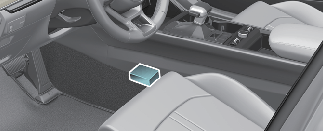

Supplemental Restraint System (SRS) control module/rollover sensor
-

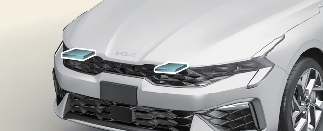

Front impact sensor
-

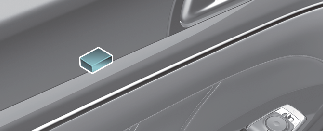

Side pressure sensor
-

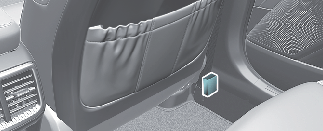

Side impact sensor
Airbag sensors
-
Do not hit or allow any objects to impact the locations where airbags or sensors are installed.
This may cause unexpected airbag deployment, which could result in serious personal injury or death.
-
If the installation location or angle of the sensors is altered in any way, the airbags may deploy when they should not or they may not deploy when they should.
Do not try to perform maintenance on or around the airbag sensors. Have the vehicle checked and repaired by an authorized Kia dealer.
-
Do not arbitrarily touch the front impact sensor. When the angle of the sensor is changed, the airbag system may malfunction.
Problems may arise if the sensor installation angles are changed due to the deformation of the front bumper, front end module, body or front doors where side collision sensors are installed. Have the vehicle checked and repaired by an authorized Kia dealer.
Installing bumper guards, side steps or running boards or replacing a bumper (or front door module) with non-genuine parts may adversely affect your vehicle's collision and airbag deployment performance.
Kia Genuine bumper guards/bumpers are guaranteed for quality and performance.
