Mode
	Trip Computer	Turn by Turn (TBT)*	Driving Assist	Information/Master warning
Up/Down	Current Trip	Route Guidance	Lane Keeping Assist Smart Cruise Control Navigation-based Smart Cruise Control* Lane Following Assist Highway Driving Assist*	The Master Warning mode displays warning messages related to the vehicle when one or more systems is not operating normally.
	Since Refueling	Destination Info		Tire Pressure Monitoring System
	Since Last Reset			Driving Force Distribution*

The information provided may differ depending on which functions are applicable to your vehicle.

* : if equipped

NOTICE

Keep the engine running when configuring the display settings to prevent the battery from discharging.

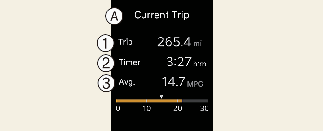

Trip computer mode

A: Current Trip

1. Trip

2. Timer

3. Avg.

The trip computer mode displays information related to vehicle driving parameters including fuel economy, tripmeter information.

* For more details, refer to More Details.

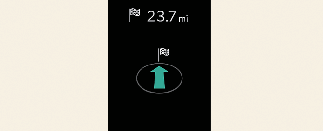

Turn By Turn (TBT) mode (if equipped)

This mode displays the state of the navigation.

Driving Assist mode

This mode displays the state of:

• Lane Keeping Assist

  Smart Cruise Control (if equipped)

  Navigation-based Smart Cruise Control (if equipped)

  Lane Following Assist

  Highway Driving Assist (if equipped)

* For more details, refer to each system information in More Details.

Information mode

Tire Pressure

A: Low tire pressure

This mode displays information related to Tire Pressure.

* For more details, refer to More Details.

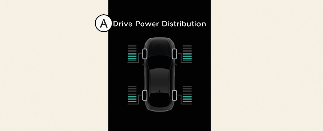

Driving force distribution (AWD) (if equipped)

A: Drive Power Distribution

This mode displays information related to Driving force distribution.

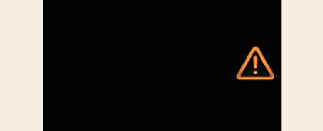

Master warning mode

This warning light informs you of the following situations.

• Driver assistance system malfunction, limitation or radar/camera blockage (if equipped)

• LED headlamp malfunction

• Lamp malfunction

• TPMS (Tire Pressure Monitoring System) failure, low tire pressure, etc.

At this time, a Master Warning icon will appear. If the warning situation resolves, the master warning light will be turned off and the Master Warning icon will disappear.
