Home > Features of your vehicle > LCD display > Trip information (trip computer)

Trip information (trip computer)

The trip computer is a microcomputer- controlled driver information system that displays information related to driving.

NOTICE

Some driving information stored in the trip computer resets if the battery is disconnected.

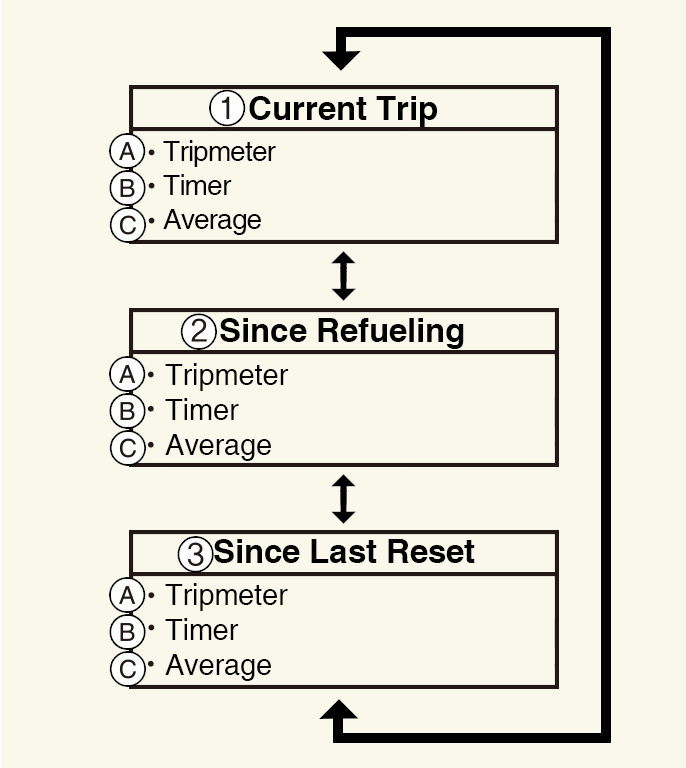

Trip Modes

A: Tripmeter

B: Timer

C: Average

  1. Current Trip

  2. Since Refueling

  3. Since Last Reset

To change the trip mode, scroll the toggle the switch / on the steering wheel.

Fuel economy

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

Average Fuel Economy

  • The average fuel economy is calculated by the total driving distance and fuel consumption since the last average fuel economy reset.

    • Fuel economy range: 0 – 99.9 MPG or L/100km, km/L

  • The average fuel economy can be reset both manually and automatically.

NOTICE

The average fuel economy is not displayed for more accurate calculation if the vehicle does not drive more than 10 seconds or 0.19 miles (300 meters) after the ENGINE START/STOP button is turned to ON.

Instant Fuel Economy

  • This mode displays the instant fuel economy during the last few seconds when the vehicle speed is more than 5 MPH (8 km/h).

    • Fuel economy range:

      0–50 MPG or 0–30 L/100km, km/L

Accumulated driving information mode

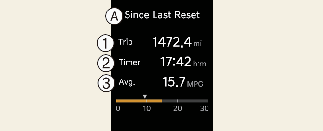

This display shows the accumulated trip distance (1), the average fuel efficiency (2), and the total driving time (3).

A: Since Last Reset

  1. Trip

  2. Timer

  3. Avg.

  • Accumulated information is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If you press "OK" button for more than 1 second after the Cumulative Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

Drive Info display

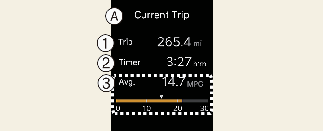

This display shows the trip distance (1), the total driving time (2), and the average fuel efficiency (3) information once per one ignition cycle.

A: Current Trip

  1. Trip

  2. Timer

  3. Avg.

  • Fuel efficiency is calculated after the vehicle has run for more than 0.19 miles (300 m).

  • If opening the driver's door after turning off the engine or 3 minutes passes after restarting the engine, Driving Information is reset.

  • If you press "OK" button for more than 1 second after the Driving Information is displayed, the information will be reset.

  • If the engine is running, even when the vehicle is not in motion, the information will be accumulated.

NOTICE

The vehicle must be driven for a minimum of 0.219 miles (300 m) since the last ignition cycle before the average accumulated driving information is recalculated.
