Forward Collision-Avoidance Assist operation
Basic function
Warning and control
The basic function for Forward Collision-Avoidance Assist is warned and controlled in the following way.
-
Collision warning
-
Emergency braking
-
Stopping vehicle and ending brake control
Collision Warning

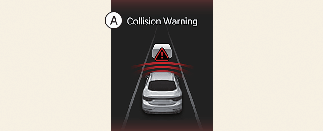

A: Collision Warning
Collision Warning will alert the driver with the Forward Safety warning light blinking (
), warning message, and an audible warning and steering wheel vibration.
The collision warning operates under the following vehicle speed conditions, depending on the vehicle in front.
-
Vehicle or powered two-wheeler: 6–124 mph (10–200 km/h)
-
Pedestrian or cyclist: 6–53 mph (10–85 km/h)
Emergency Braking

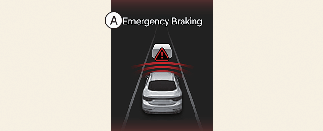

A: Emergency Braking
Emergency braking will alert the driver with the Forward Safety warning light blinking (), warning message, and an audible warning and steering wheel vibration.
The brake assist will be activated to help avoid a collision with a vehicle, pedestrian, cyclist and powered two-wheeler.
-
Vehicle or powered two-wheeler:
-
Driving target
Stopped target
Weak braking power
6–124 mph (10–200 km/h)
Strong braking power
6–80 mph (10–130 km/h)
6–47 mph
(10–75 km/h)
-
Pedestrian or cyclist: 6–40 mph (10–65 km/h)
-
The function operation range may decrease due to the front traffic condition or the surroundings of the vehicle.
-
When driving at night, the performance of powered two-wheeler recognition is decreased, so the Forward Collision-Avoidance Assist system may be temporarily limited or may not work.
Stopping vehicle and ending brake control

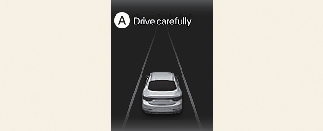

A: Drive carefully
When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.
For your safety, the driver should depress the brake pedal immediately and check the surroundings.
-
Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds.
The warning sound during collision warning and emergency braking can be switched off by pressing the hazard warning flasher switch.
Junction Turning function
Warning and control
The Junction turning function is warned and controlled in the following way.
-
Collision Warning
-
Emergency Braking
-
Stopping vehicle and ending brake control
Collision Warning
A: Collision Warning
Collision Warning will alert the driver with the Forward Safety warning light blinking (), warning message, an audible warning and steering wheel vibration.
Collision warning will be activated in the following conditions:
-
Your driving speed: Approximately 6–19 mph (10–30 km/h)
-
Oncoming vehicle or powered two-wheeler speed: Approximately 19–44 mph (30–70 km/h)
Emergency Braking

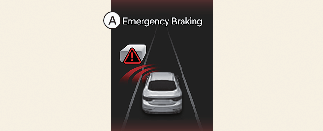

A: Emergency Braking
Emergency braking will alert the driver with the Forward Safety warning light blinking (), warning message, an audible warning and steering wheel vibration. The brake assist will be activated and to help avoid
a collision with an oncoming vehicle.
Emergency braking will be activated in the following conditions.
-
Your driving speed: 6–19 mph (10–30 km/h)
-
Oncoming vehicle or powered two-wheeler speed: Approximately 19–44mph (30–70 km/h)
Stopping vehicle and ending brake control
A: Drive carefully
When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.
For your safety, the driver should depress the brake pedal immediately and check the surroundings.
-
Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds.
The warning sound during collision warning and emergency braking can be switched off by pressing the hazard warning flasher switch.
Direct Oncoming function
Warning and control
The Direct Oncoming function is warned and controlled in the following way.
-
Collision Warning
-
Emergency Braking
-
Stopping vehicle and ending brake control
Collision Warning
A: Collision Warning
Collision warning will alert the driver with the Forward Safety warning light blinking (), warning message, an audible warning and steering wheel vibration.
Collision Warning will be activated in following conditions.
-
Your driving speed: Approximately 6~80 mph (10~130km/h)
-
Oncoming vehicle or powered two-wheeler: Approximately above 6 mph (10 km/h)
Emergency braking
A: Emergency Braking
Emergency braking will alert the driver with the Forward Safety warning light blinking (), warning message, an audible warning and steering wheel vibration.
Emergency braking will be activated in following conditions.
-
Your driving speed: Approximately 19–80 mph (30–130 km/h)
-
Oncoming vehicle or powered two-wheeler: Approximately above 6 mph (10 km/h)
Stopping vehicle and ending brake control
A: Drive carefully
When the vehicle is stopped due to emergency braking, the warning message will appear on the cluster.
For your safety, the driver should depress the brake pedal immediately and check the surroundings.
-
Brake control will end after the vehicle is stopped by emergency braking for approximately 2 seconds
-
If your vehicle or the oncoming vehicle is not driving straight, Front Oncoming function warning and control may be late or may not operate.
-
When driving at night, the performance of t powered two-wheeler recognition is decreased, so the Forward Collision-Avoidance Assist system may be temporarily limited or may not work.
The warning sound during collision warning and emergency braking can be switched off by pressing the hazard warning flasher switch.
-
For your safety, change the Settings after parking the vehicle at a safe location.
-
The driver should hold the responsibility to control the vehicle. Do not solely depend on Forward Collision-Avoidance Assist. Rather, maintain a safe braking distance, and if necessary, depress the brake pedal to reduce driving speed or to stop the vehicle.
-
Forward Collision-Avoidance Assist does not operate in all situations or cannot avoid all collisions.
-
Forward Collision-Avoidance Assist may turn off or may not operate properly or may operate unnecessarily depending on the road conditions and the surroundings.
-
Never deliberately operate Forward Collision-Avoidance Assist on people, objects, etc. It may cause serious injury or death.
-
Forward Collision-Avoidance Assist may not operate if the driver depresses the brake pedal to avoid collision.
-
During Forward Collision-Avoidance Assist operation, the vehicle may stop suddenly injuring passengers and shifting loose objects. Always have the seat belt on and keep loose objects secured.
-
If any other function's warning message is displayed or audible warning is generated, Forward Collision-Avoidance Assist warning message may not be displayed and audible warning may not be generated.
-
You may not hear the warning sound of Forward Collision-Avoidance Assist if the surrounding is noisy.
-
Even if there is a problem with Forward Collision-Avoidance Assist, the vehicle's basic braking performance will operate properly.
-
During emergency braking, braking control by Forward Collision-Avoidance Assist will automatically cancel when the driver excessively depresses the accelerator pedal or sharply steers the vehicle.
-
The surroundings and pedestrians, cyclists and powered two-wheeler or other vehicles in front of you may affect the speed or detection range to operate Forward Collision-Avoidance Assist, resulting in Forward Collision-Avoidance Assist temporarily limited or disabled.
-
Forward collision avoidance assistance operates under specific conditions, taking into account the status of the oncoming vehicle, powered two-wheeler and cyclist, driving direction, speed, and surrounding environment to judges the level of risk.
-
The function may be limited or deactivated in cases where the driving speed is excessively high or there is a significant speed difference between the vehicle and the oncoming powered two-wheelers or cyclists.
-
When a collision is imminent, the Forward Collision-Avoidance Assist may assist the driver with brakes if the driver fails to brake enough.
-
The images or colors may be displayed differently depending on the specifications of the instrument cluster or theme.
