Outside rearview mirror
Be sure to adjust the mirror angles before driving.
The mirrors can be adjusted remotely with the control levers or remote switch, depending on the type of mirror control installed. The mirror heads can be folded back to prevent damage in an automatic car wash or when passing through a narrow street.
Rearview mirrors
-
The right outside rearview mirror is convex. Objects seen in the mirror are closer than they appear.
-
Use your interior rearview mirror or direct observation to determine the actual distance of following vehicles when changing lanes.
Do not scrape ice off the mirror face; this may damage the surface of the glass. If ice restricts the movement of the mirror, do not force the mirror for adjustment. To remove ice, use a deicer spray, or a sponge or soft cloth with warm water.
If the mirror is jammed with ice, do not adjust the mirror by force. Use an approved spray deicer (not radiator antifreeze) to release the frozen mechanism or move the vehicle to a warm place and allow the ice to melt.
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident which could cause DEATH, SERIOUS INJURY, or property damage.
Adjusting the outside rearview mirrors
The electric remote control mirror switch allows you to adjust the position of the left and right outside rearview mirrors.

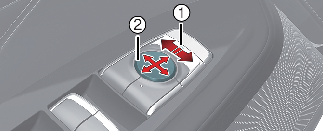

Adjusting the rearview mirrors:
-
Move the R or L switch (1) to select the right side mirror or the left side mirror.
-
Press a corresponding point on the mirror adjustment control (2) to position the selected mirror up, down, left or right.
-
The mirrors stop moving when they reach the maximum adjusting angles, but the motor continues to operate while the switch is pressed. Do not press the switch longer than necessary, the motor may be damaged.
-
Do not adjust the outside rearview mirror by hand. Doing so may damage the parts.
-
When the mirror control, press exactly “▲” (2) marking area. Otherwise, the mirror will move to unintended direction or malfunction.

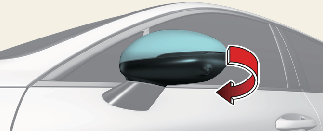

Folding the outside rearview mirror
Manual type
To fold the outside rearview mirror, grasp the housing of the mirror and then fold it toward the rear of the vehicle.

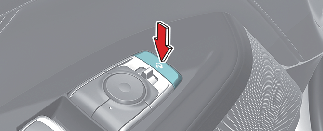

Electric type
The outside rearview mirror can be folded or unfolded by pressing the switch when the ENGINE START/STOP button is in the ON position as below.
-
To fold the outside rearview mirror depress the button.
-
To unfold it, depress the button again.
The electric type outside rearview mirror operates even though the ENGINE START/STOP button is in the OFF position. To prevent unnecessary battery discharge, do not adjust the mirrors longer than necessary while the engine is not running.
Do not fold an electric type outside rearview mirror by hand. It could cause motor failure.

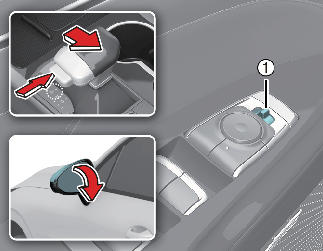

Reverse parking aid function (if equipped)
When you move the shift lever to the R (Reverse) position, the outside rearview mirror(s) will rotate downwards to aid with driving in reverse.
The position of the outside rearview mirror switch (1) determines whether or not the mirrors will move:
Left/Right: When either the L (Left) or R (Right) switch is selected, both outside rearview mirrors will move.
Neutral: When neither switch is selected, the outside rearview mirrors will not move.
The outside rearview mirrors will automatically revert to their original positions if any of the following occur:
-
The ENGINE START/STOP button is placed to either the OFF position or the ACC position.
-
The shift lever is moved to any position except R (Reverse).
-
The remote control outside rearview mirror switch is not selected.
