Headlamp aiming

Figure 1. Halogen (5 Door, Wagon)
OCDW079068

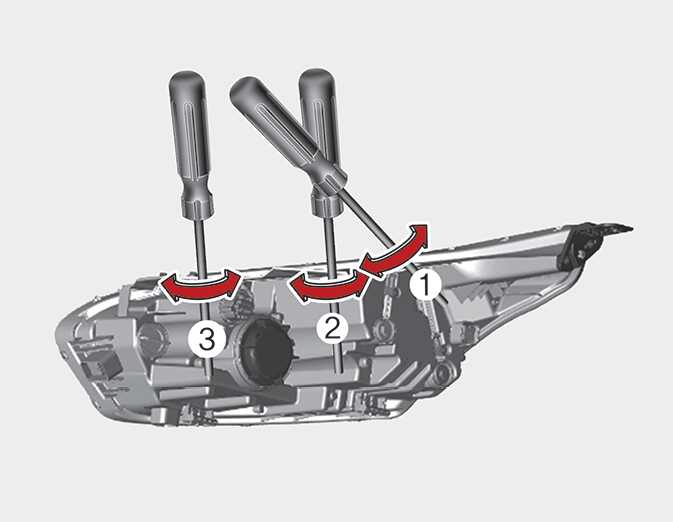

Figure 2. LED (5 Door, Wagon, Shooting brake, CUV)
OCD072138L

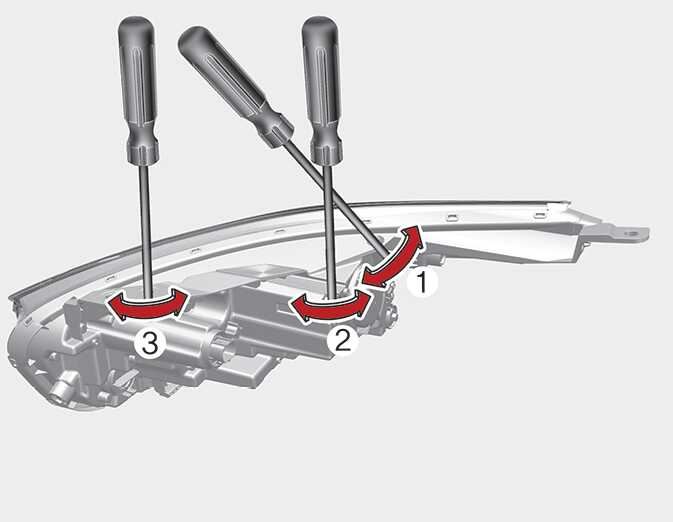

Figure 3. LED (CUV)
OCD072181L
  1. Inflate the tires to the specified pressure and remove any loads from the vehicle except the driver, spare tire, and tools.
  2. The vehicle should be placed on a flat floor.
  3. Draw vertical lines (Vertical lines passing through respective head lamp centers) and a horizontal line (Horizontal line passing through center of head lamps) on the screen.
  4. With the head lamp and battery in normal condition, aim the head lamps so the brightest portion falls on the horizontal and vertical lines.
  5. To aim the low and high beams left or right, turn the driver (1) clockwise or counterclockwise. To aim the low and high beams up or down, turn the driver (2) clockwise or counterclockwise.
