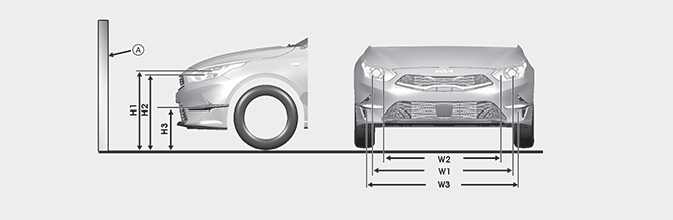

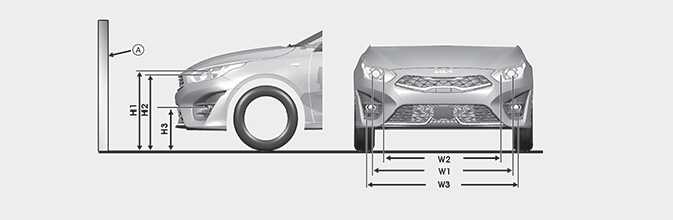

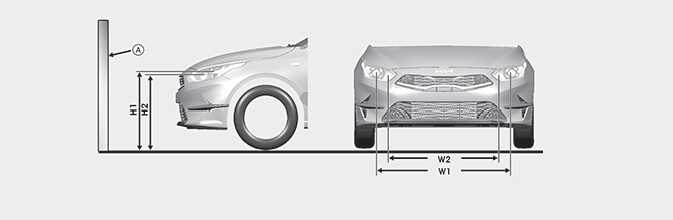

Aiming point
A: Screen
5 Door, Wagon (standard model)
|
Vehicle condition |
Head lamp (Halogen type A) |
|||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
|||
|
Low beam |
High beam |
Low beam |
High beam |
|
|
H1 |
H2 |
W1 |
W2 |
|
|
without driver [mm (in)] |
706 (27.8) |
684 (26.9) |
1,344 (52.9) |
1,112 (43.8) |
|
with driver [mm (in)] |
700 (27.6) |
678 (26.7) |
1,344 (52.9) |
1,112 (43.8) |
|

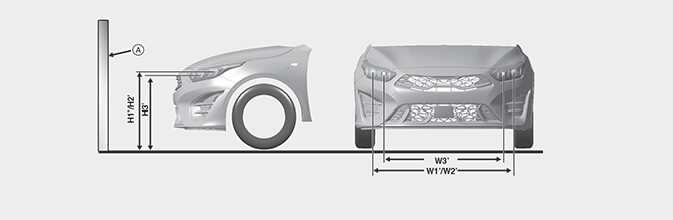

Vehicle condition |
Head lamp (Halogen type B) |
Head lamp (LED type) |
||||
|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|||
|
Low beam |
High beam |
Low beam |
High beam |
Low/High beam |
Low/High beam |
|
|
H1 |
H2 |
W1 |
W2 |
H1'/H2' |
W1'/W2' |
|
|
without driver [mm (in)] |
706 (27.8) |
684 (26.9) |
1,344 (52.9) |
1,112 (43.8) |
714 (28.1) |
1,404 (55.3) |
|
with driver [mm (in)] |
700 (27.6) |
678 (26.7) |
1,344 (52.9) |
1,112 (43.8) |
708 (27.9) |
1,404 (55.3) |
|
Vehicle condition |
Front Fog lamp (Bulb type) |
Front Fog lamp (LED type) |
||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|
|
H3 |
W3 |
H3' |
W3' |
|
|
without driver [mm (in)] |
370(14.6) |
1,426(56.1) |
694(27.3) |
1,191(48.9) |
|
with driver [mm (in)] |
366(14.4) |
1,426(56.1) |
688(27.1) |
1,191(48.9) |
5 Door, Wagon (GT-Line/GT model)
|
Vehicle condition |
Head lamp (Halogen type) |
Head lamp (LED type) |
||||
|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|||
|
Low beam |
High beam |
Low beam |
High beam |
Low/High beam |
Low/High beam |
|
|
H1 |
H2 |
W1 |
W2 |
H1'/H2' |
W1'/W2' |
|
|
without driver [mm (in)] |
698(27.5) |
676(26.6) |
1,344 (52.9) |
1,112 (43.8) |
706(27.8) |
1,404(55.3) |
|
with driver [mm (in)] |
692(27.2) |
670(26.4) |
1,344 (52.9) |
1,112 (43.8) |
700(27.5) |
1,404(55.3) |
|
Vehicle condition |
Front Fog lamp (Bulb type) |
Front Fog lamp (LED type) |
||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|
|
H3 |
W3 |
H3' |
W3' |
|
|
without driver [mm (in)] |
371(14.6) |
1,449(57.1) |
686(27.0) |
1,191(48.9) |
|
with driver [mm (in)] |
357(14.1) |
1,449(57.1) |
682(26.9) |
1,191(48.9) |
Shooting brake (GT Line/GT model)
|
Vehicle condition |
Head lamp (Halogen type) |
Head lamp (LED type) |
||||
|---|---|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|||
|
Low beam |
High beam |
Low beam |
High beam |
Low/High beam |
Low/High beam |
|
|
H1 |
H2 |
W1 |
W2 |
H1'/H2' |
W1'/W2' |
|
|
without driver [mm (in)] |
701(27.6) |
679(26.7) |
1,344 (52.9) |
1,112 (43.8) |
709(27.9) |
1,404(55.3) |
|
with driver [mm (in)] |
695(27.4) |
673(26.5) |
1,344 (52.9) |
1,112 (43.8) |
703(27.7) |
1,404(55.3) |
|
Vehicle condition |
Front Fog lamp (Bulb type) |
Front Fog lamp (LED type) |
||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|
|
H3 |
W3 |
H3' |
W3' |
|
|
without driver [mm (in)] |
371(14.6) |
1,449(57.1) |
689(27.1) |
1,191(48.9) |
|
with driver [mm (in)] |
357(14.1) |
1,449(57.1) |
685(27.0) |
1,191(48.9) |

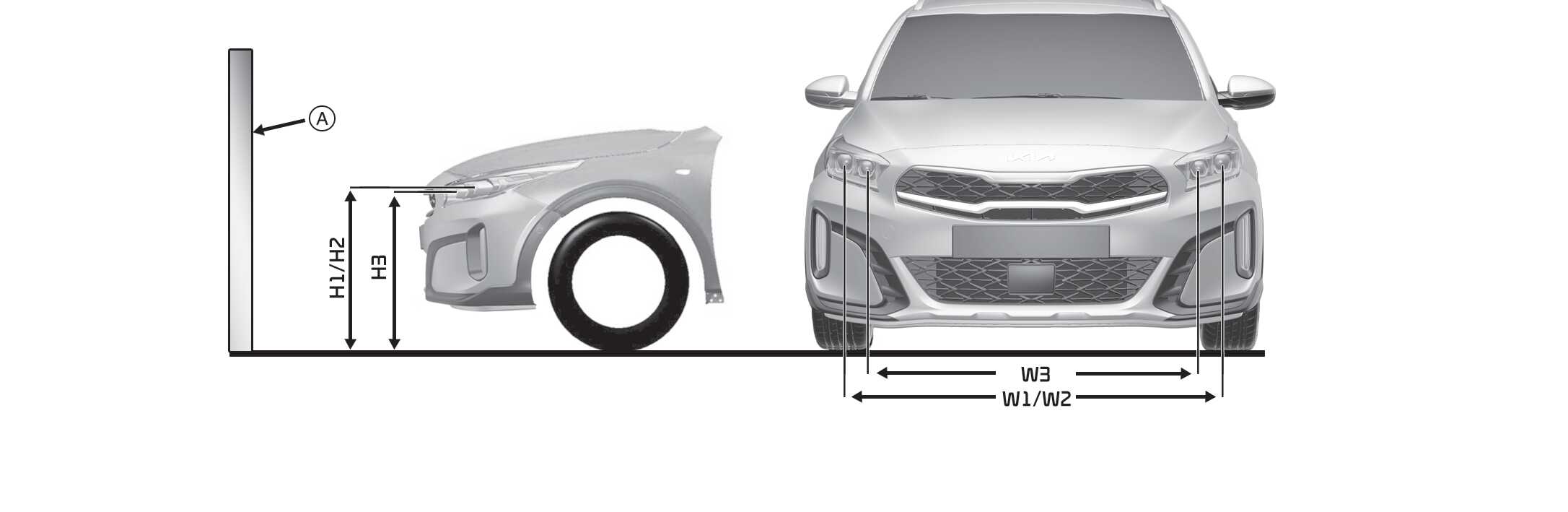

CUV (16 in tire)
|
Vehicle condition |
Head lamp (LED type) |
Front Fog lamp (LED type) |
||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|
|
Low/High beam |
Low/High beam |
H3 |
W3 |
|
|
H1/H2 |
W1/W2 |
|||
|
without driver [mm (in)] |
755 (29.7) |
1,403 (55.2) |
734 (28.9) |
1,201 (47.3) |
|
with driver [mm (in)] |
749 (29.5) |
728 (28.7) |
||
CUV (18 in tire)
|
Vehicle condition |
Head lamp (LED type) |
Front Fog lamp (LED type) |
||
|---|---|---|---|---|
|
Ground Height |
Distance between lamps |
Ground Height |
Distance between lamps |
|
|
Low/High beam |
Low/High beam |
H3 |
W3 |
|
|
H1/H2 |
W1/W2 |
|||
|
without driver [mm (in)] |
767 (30.2) |
1,403 (55.2) |
746 (29.4) |
1,201 (47.3) |
|
with driver [mm (in)] |
761 (30) |
740 (29.1) |
||
