Head lamp low beam (LHD Vehicle)

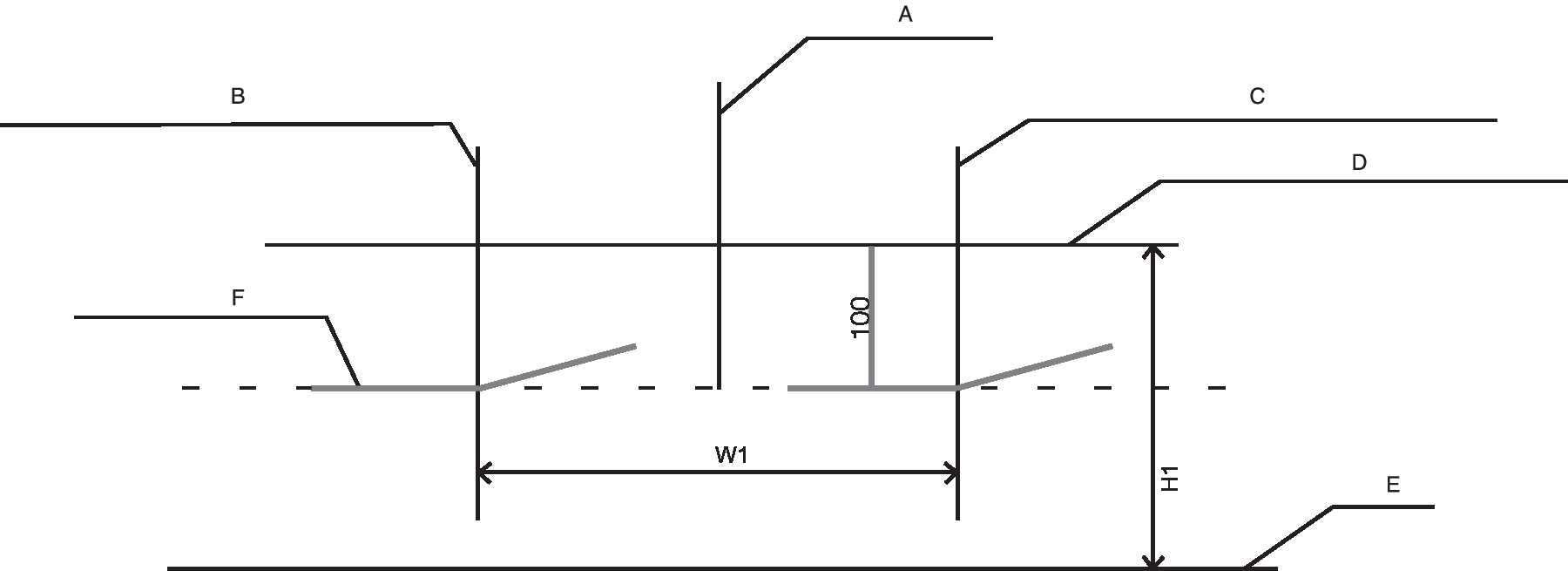

Figure 1. Based on 10m screen
OJF075107L

A: Vehicle axis

B: Vertical line of the left head lamp bulb center

C: Vertical line of the right head lamp bulb center

D: Horizontal line of head lamp bulb center

E: Ground

F: Cut-Off line

  1. Turn the low beam on with 1 driver (75kg) aboard.
  2. The cut-off line should be projected in the cut-off line shown in the picture.
  3. First, adjust Cut-off line to be matched with the horizontal line and then adjust with the vertical line.
  4. If head lamp leveling device is equipped, adjust the head lamp leveling device switch with 0 positions.

If aiming is needed, adjust the aiming point after the actual measurement of the ground clearance of a vehicle or visit Kia recommends to visit an authorized Kia dealer/service partner. It is because it may differ from the actual ground clearance of a vehicle.
