Front fog lamp

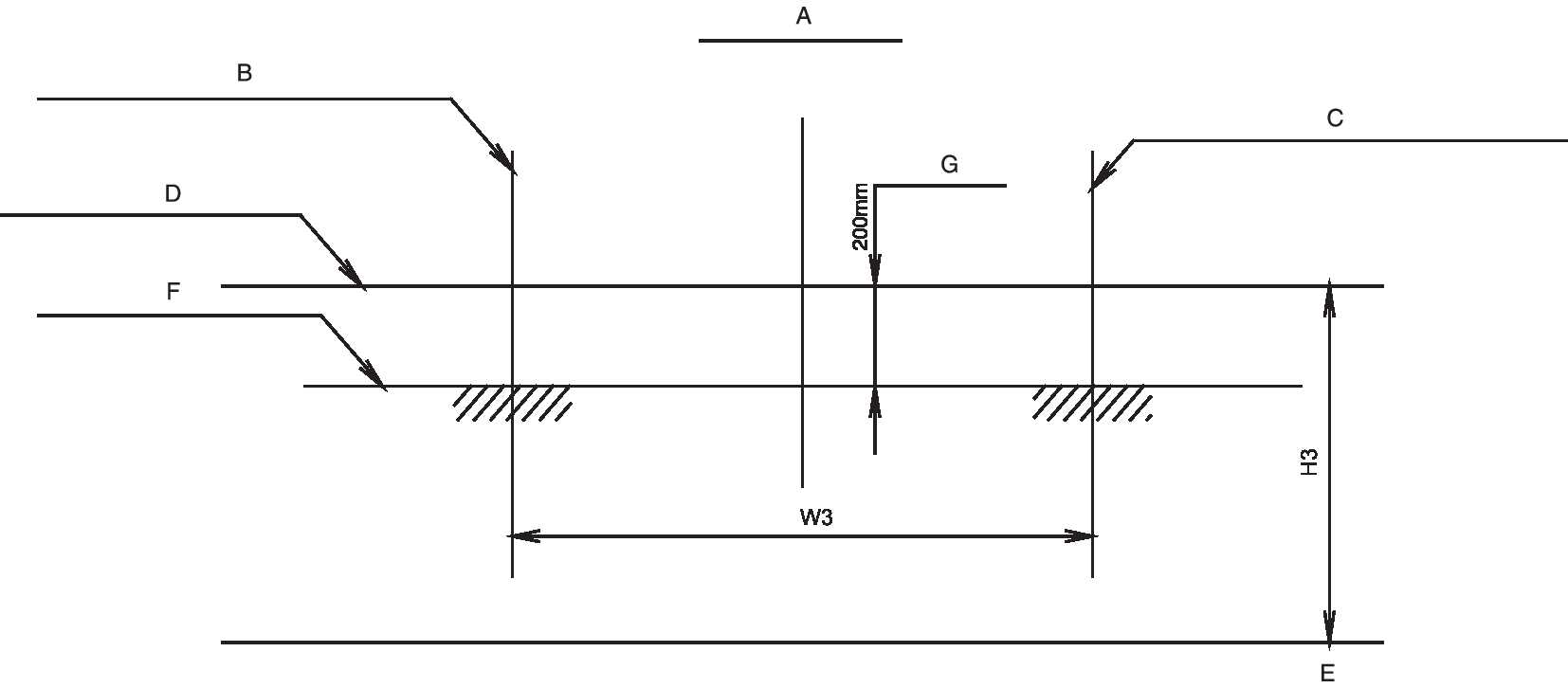

Figure 1. Based on 10m screen
OYB076080

A: Vehicle axis

B: Vertical line of the left fog lamp bulb center

C: Vertical line of the right fog lamp bulb center

D: Horizontal line of fog lamp bulb center

E: Ground

F: Cut-Off line

G: Upper limit

  1. Turn the low beam on with 1 driver (75kg) aboard.
  2. The cut-off line should be projected in the allowable range (shaded region).

If aiming is needed, adjust the aiming point after the actual measurement of the ground clearance of a vehicle or visit Kia recommends to visit an authorized Kia dealer/service partner. It is because it may differ from the actual ground clearance of a vehicle.
