USB charger

The USB car charger allows drivers to charge their digital devices like smartphones, and PC tablets.

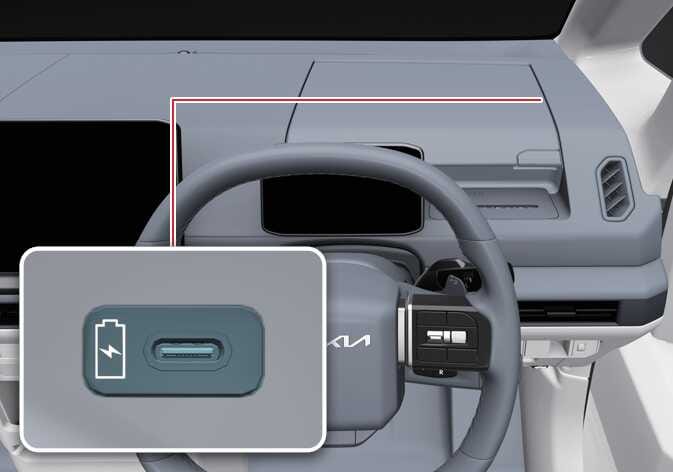

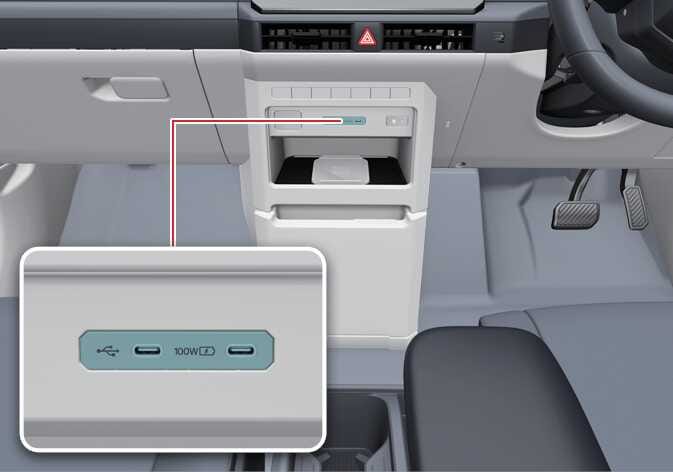

OSW035032R	OSW035013R

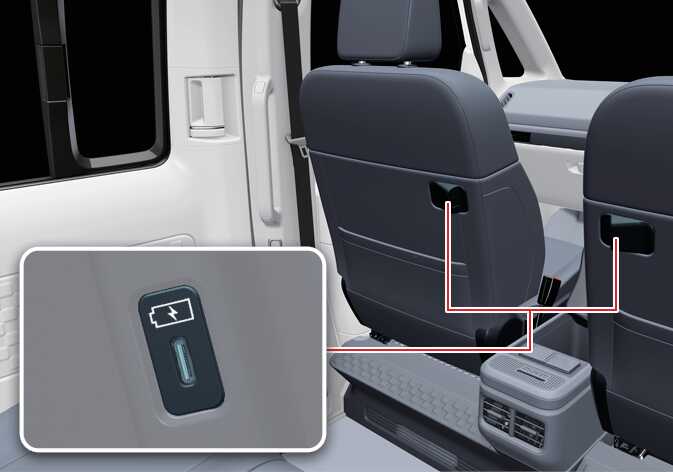

Figure 1. For passenger van OSW025072R

Plug the cable into the USB port, and charging will begin.

NOTE

The battery charging state may be monitored on the electronic device.
Disconnect the USB cable from the USB port after use.
Fast charging is available on the electronic device equipped with fast charging capabilities. The device without fast charging is charged at a regular speed.
Fast charging may not work when the electronic devices are off.
Charging some digital devices is not available or requires special dedicated adapters if their charging methods don't fit the way the USB car charger works.
Do not attempt to use the charging terminal either to turn on an audio or to play media with the infotainment system.
Charging speeds may vary depending on the state of charging status of electronic devices.
Battery chargers cannot be charged.

100 W USB charger

Depending on the device’s request or specification of the connected charging cable, the total output supported by the USB charger can be up to 100 W.

The 100 W USB charging socket is labeled with or .

Using the genuine charger specified for your vehicle can support up to 100 W. However, the 100 W USB charger supports 60 W with cables that meet the same specifications as PD 3.0-enabled products, and 27 W otherwise. Use only Kia Genuine Parts or those of an equivalent standard.
The colour of the light indicates the charging status.

The colour of the light is designed for a driver's convenience. If a problem occurs repeatedly, have the function inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.


Colour	USB charger state	Measure
White (Default)	Normal	-
Yellow	The USB charger is in normal condition, but the connected device or cable is abnormal and charging has stopped	Check if there are any problems with the connected device or cable. Then reconnect it. If the same problems occur repeatedly, replace it with other compatible cable or check to see if the connected device is normal.
Red	There is a malfunction with the charging device	Stop charging immediately, and have the function inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner.

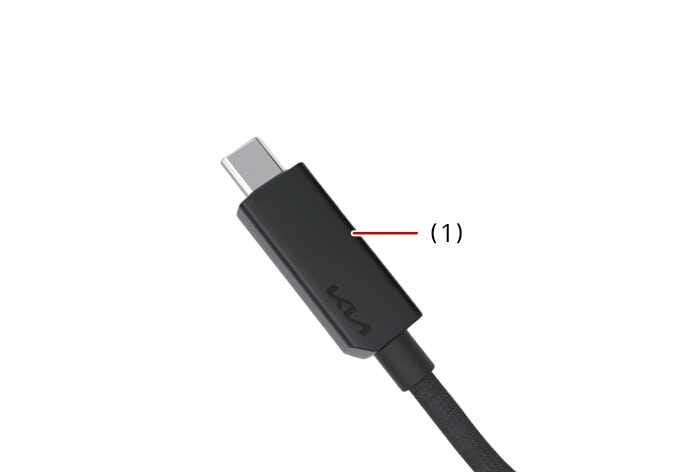

N_CT25C159	LED indicator light

A 100 W charging cable supports up to 100 W depending on the specifications of the connected device and charging terminal.

LED light (indicator) of a 100 W charging cable indicates its operation status.


Colour	100 W Charging cable state (When using in the vehicle)	Notes
White (Default)	Authorised product	Support up to 100 W
Blue	Authentication in progress or not certified	Support up to 60 W
Indicator off	Out of the USB-IF PD 3.0 standard	Support up to 27 W

CAUTION

This product is designed to be compatible with USB-IF USB 2.0, PD 3.0. There can be limitations when using other types of standards.
Connection to 100 W charging cable may differ depending on the shape device to connect.
The 100W charging cable is a consumable product. If charging/communication is difficult after the warranty period (a year), repurchase it.
Avoid entering foreign substances, beverages, and water into the 100 W charging cable plug. This may damage the 100 W charging cable.
Do not use any device whose the current consumption exceeds 5.0 A.
When charging with 'C to A type USB convertible adapter', use an exclusive charge for your device. If you use a product that is not equipped with over-current prevention or system for stabilization, then this may damage the charging terminal. Use only Kia Genuine Parts or those of an equivalent standard.
The use of inappropriate parts that may cause the malfunction of the USB terminal and infotainment system can be excluded from warranty coverage. Use only Kia Genuine Parts or those of an equivalent standard.
