Replacing lights (LED type)

If the LED lamp is not functioning, please have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner. The LED lamp cannot be replaced as an individual component since it is an integrated unit. Instead, the entire LED lamp unit must be replaced.

A skilled technician should check or repair the LED lamp, for it may damage related parts of the vehicle.

If the high-mounted stop lamp (LED) is not functioning, please have your vehicle inspected by a professional workshop. Kia recommends that you visit an authorised Kia dealer/service partner. The LED lamp cannot be replaced as a single unit because it is an integrated component. Instead, the entire LED lamp unit must be replaced. It’s essential to have a skilled technician check or repair the high-mounted stop lamp (LED) to prevent any damage to related vehicle parts.

Replacing day time running lamp/position Lamp/front turn signal lamp, side repeater lamp, headlamp (high/low) (LED type)

If day time running lamp/position lamp/front turn signal lamp, side repeater lamp, headlamp (high/low) are not functioning, please have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

OSW075064

  1. Side repeater lamp (LED type)

  2. Day time running lamp (LED type)/Position lamp (LED type), Front turn signal lamp (LED type): (if equipped)

  3. Headlamp (High) (LED type)

  4. Headlamp (Low) (LED type)

NOTE

After replacing the headlamp assembly, the headlamp aiming should be adjusted. Have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

Replacing tail lamp/stop lamp, high mounted stop lamp, license plate lamp (LED type)

If tail lamp/stop lamp, high mounted stop lamp, license plate lamp, rear fog lamp are not functioning, please have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

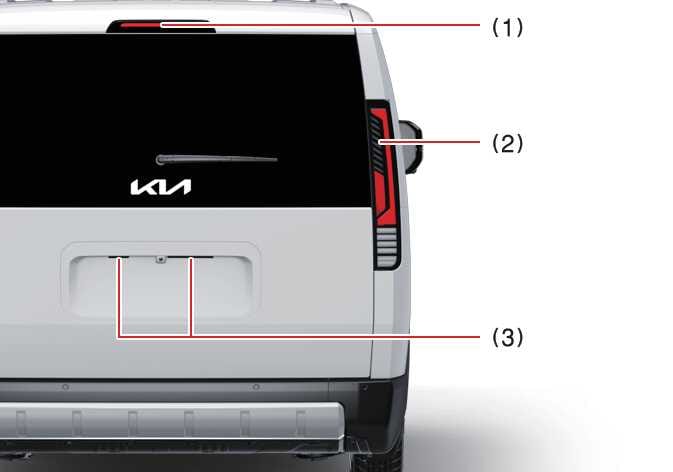

OSW075065

  1. High mounted stop lamp (LED type)

  2. Tail lamp/Stop lamp (LED type)

  3. License plate lamp (LED type)

Replacing rear fog lamp (LED type)

If rear fog lamp is not functioning, please have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

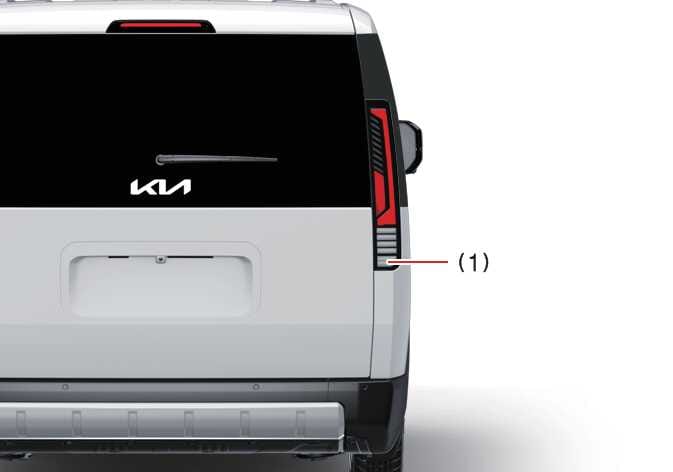

OSW075060L

  1. Rear fog lamp (LED type)

Replacing interior lights (LED type)

If map lamp, room lamp, vanity mirror lamp, luggage lamp, and glove box lamp are not functioning, please have your vehicle inspected by a professional workshop. Kia recommends to visit an authorised Kia dealer/service partner.

Figure 1. Map lamp
OSW075055

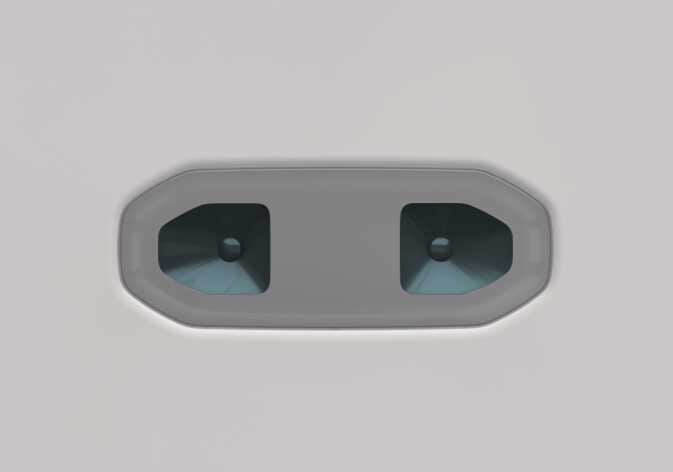

Figure 2. Room lamp/Luggage lamp
OSW075056
Figure 3. Glove box lamp
OSW035043R

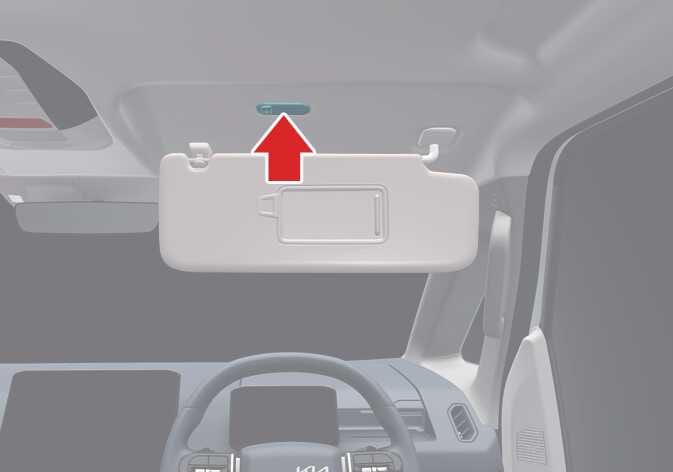

Figure 4. Vanity mirror lamp
OSW035042R
