Replacing back up lamp/rear turn signal lamp (Bulb type) (Cargo van)

  1. Apply the parking brake and turn off the vehicle.

  2. Turn off the lights.

  3. Open the tailgate.

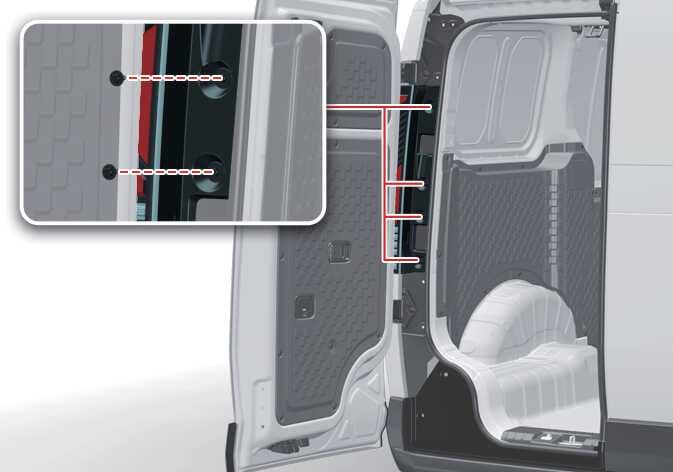

  4. Remove the retaining screw located inside the tailgate.

    OSW075016

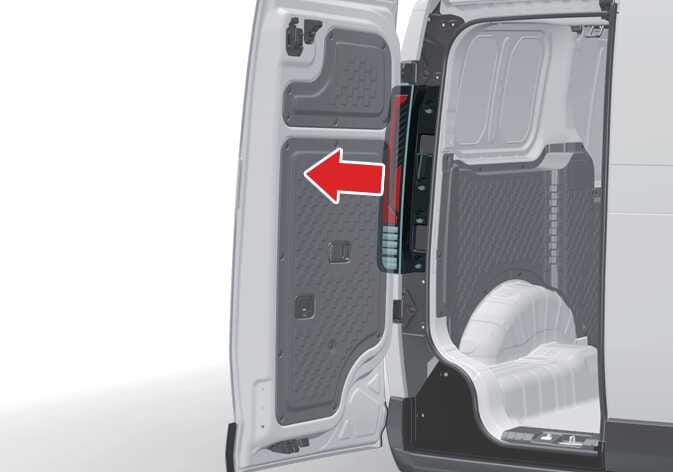

  5. Pull the lamp assembly rearward to detach it from the vehicle body.

  6. Disconnect the connector.

    OSW075017

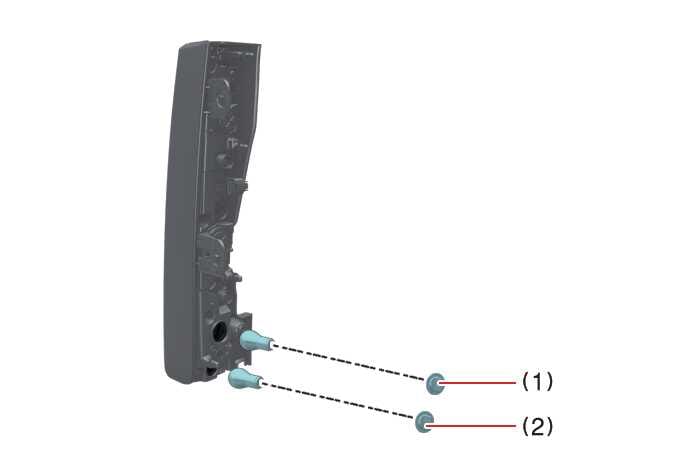

  7. Turn the socket of the rear turn signal lamp (1) or back up lamp (2) counterclockwise to remove it.

    OSW075047

  8. Replace with a new bulb and reinstall in the reverse order of removal.
