TOW mode

TOW mode

When towing a trailer, select TOW mode to adjust the shift pattern for heavy loads and ensure smoother driving.

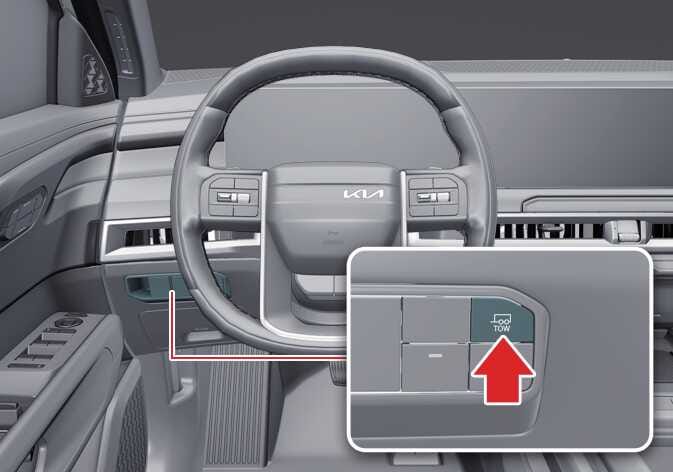

OLQ2A095018

Press TOW mode button on the instrument panel to activate the TOW mode function.

The vehicle will adjust the power output, transmission, braking, and ESC to assist towing. TOW mode indicator will be shown on the instrument cluster.

In P (Park), you can set the weight of the trailer you want to tow through the Trailer menu from the infotainment system screen.

TIP

When driving in TOW mode, it is not possible to switch between DRIVE MODE and TERRAIN MODE.
