Fuses

Left side: Normal

Right side: Blown

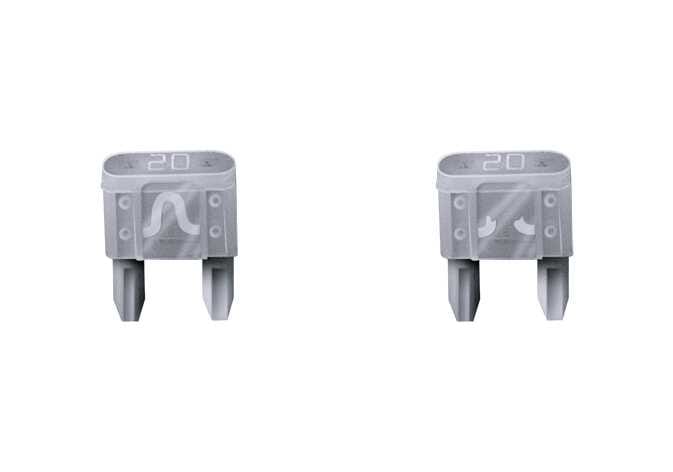

Figure 1. Blade type
KIAPB037_2
Figure 2. Cartridge type
KIAPB038_2

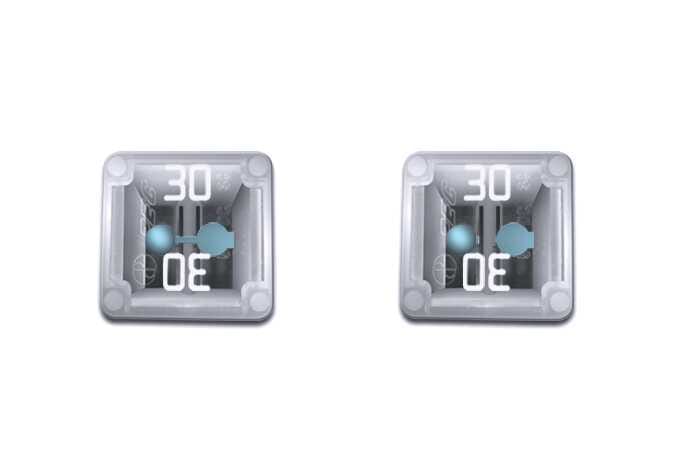

Figure 3. Multi fuse
KIAPB039_4
Figure 4. High voltage fuse
KIAPB040_4

The actual fuse/relay panel label may differ from equipped items.

Fuses protect a vehicle’s electrical system from electrical overload damage.

Your vehicle has 2 (or 3) fuse panels: one in the driver side panel bolster, and the others in the engine compartment near the battery.

If any of your vehicle’s lights, accessories, or controls do not work, check the appropriate circuit fuse. If a fuse is blown, the element inside the fuse melts.

If the electrical system does not work, check the driver side fuse panel first.

If a replacement fuse blows, this indicates an electrical problem. Avoid using the respective system and immediately consult an authorized Kia dealer.

Your vehicle uses 3 kinds of fuses: blade type for lower amperage rating, cartridge type, and multi fuse for higher amperage ratings.

WARNING

Fuse replacement

  • Never replace a fuse with a fuse of a different rating. A higher capacity fuse could cause damage and possibly fire.

  • Never install wire or aluminum foil in place of a proper fuse, even as a temporary repair. Doing so may cause extensive wiring damage and possibly fire.

  • Do not arbitrarily modify or add electric wiring to the vehicle.

WARNING

Electrical fire

Always ensure replacements fuses and relays are securely fastened when installed. Failure to do so can result in a vehicle fire.

Do not remove fuses, relays, and terminals fastened with bolts or nuts. The fuses, relays, and terminals may be fastened incompletely and could cause a possible fire. If fuses, relays, and terminals fastened with bolts or nuts are blown, consult an authorized Kia dealer.

NOTE

  • Never insert objects other than fuses or relays, such as a screwdriver or wiring, into fuse or relay terminals. Doing so may cause contact failure and system malfunction.

  • The inner junction block can burn if you directly connect the wire on the rear combination lamp or replace its bulb with one over the regulated capacity to install a trailer.

NOTE

  • Do not use a screwdriver or any other metal object to remove fuses. Doing so may cause a short circuit and damage the electrical system.

  • When replacing a blown fuse or relay, make sure the new fuse or relay fits tightly in the clips. Failure to tightly install a fuse or relay may cause damage to the wiring and electrical systems.

NOTE

Electrical wiring repairs

All electrical repairs should be performed by authorized Kia dealerships using approved Kia parts. Using other wiring components, especially when retrofitting a multimedia or theft alarm system, phone, or radio may cause vehicle damage and increase the risk of a vehicle fire.

NOTE

Rewiring prohibited

Do not rewire your vehicle in any way. Doing so may affect the performance of several safety features in your vehicle. Rewiring your vehicle may also void your warranty, which makes you responsible for any subsequent vehicle damage.

TIP

  • When you replace a fuse, make sure the vehicle and all other switches are in the OFF position, then remove the negative 12V battery terminal.

  • The actual fuse or relay panel label may differ from equipped items.
