Fuse/relay panel description
Inside the fuse/relay panel covers, you can find the fuse/relay label describing the fuse/relay name and capacity.
While the fuse panel descriptions in this manual are accurate at the time of printing, not all fuse panel descriptions may apply to your vehicle.

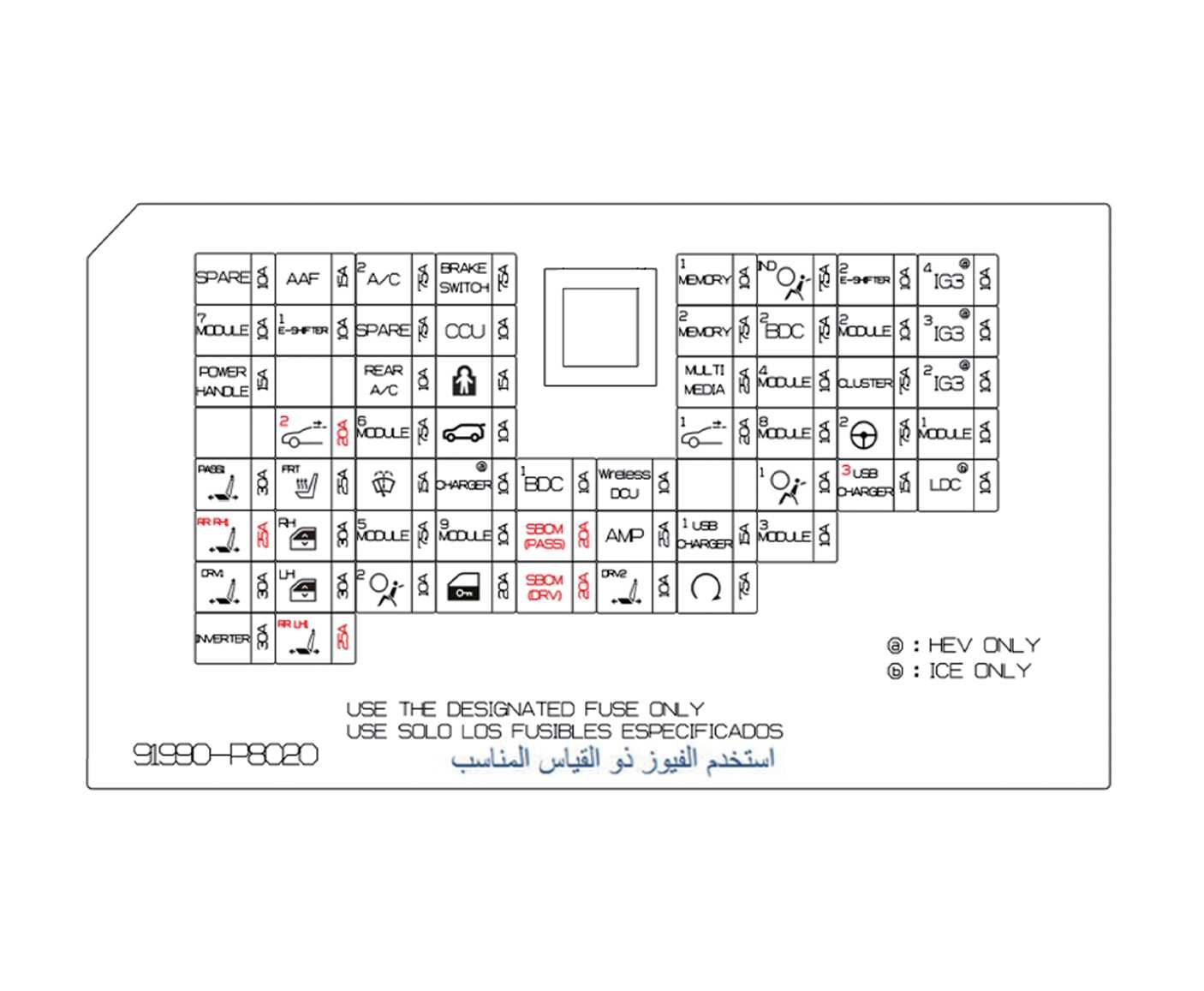

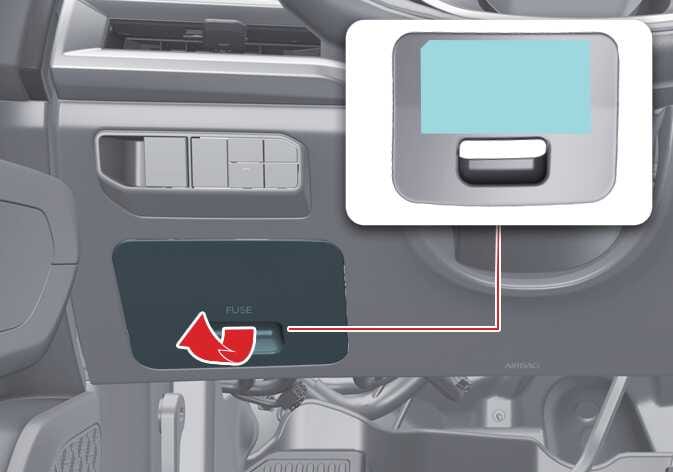

Driver side fuse panel
 OLQ2A125019 |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
SPARE |
10A |
SPARE |
|
AAF |
15A |
AAF (Active Air Flap) |
|
A/C2 |
7.5A |
ATCU (Air Temperature Control), ATCU Controller, INCAR SENSOR, PTC HEATER 1,2 Relay Coil, E-Compressor (HEV) |
|
BRAKE SW |
7.5A |
BDC (Body Domain Controller), Stop Lamp Switch |
|
MEMORY1 |
10A |
SAL (Smart Ambient Light), MKBD (Multimedia Keyboard), WPC (Wireless Power Charger), RR_ACON, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), Rear Corner Radar |
|
A/BAG IND |
7.5A |
PAB IND (Passenger Airbag Indicator) |
|
E-SHIFTER2 |
10A |
SBW Lever (Shift By Wire Lever) |
|
IG3_4 |
10A |
V2LC Unit (HEV) V2LC Outlet socket (HEV) |
|
MODULE7 |
10A |
Multifunction switch, ICC UNIT (In Cabin Camera Unit), SCM (Steering Column Control Module), OBD (On Board Diagnostic), Blower motor Relay Coil, Rain Sensor |
|
E-SHIFTER1 |
10A |
SBW Lever (Shift By Wire Lever) |
|
SPARE |
7.5A |
SPARE |
|
CCU |
10A |
CCU (Communication Central Unit) |
|
MEMORY2 |
7.5A |
ATCU (Air Temperature Control), ATCU Controller, HUD (Head Up Display), CLUSTER |
|
BDC2 |
7.5A |
BDC (Body Domain Controller) |
|
MODULE2 |
10A |
DCU (Data Connectivity Unit), CCU (Communication Central Unit), Stop Lamp Switch |
|
IG3_3 |
10A |
BMS (Battery Management System) (HEV) |
|
POWER HANDLE |
15A |
SCM (Steering Column Control Module) |
|
RESERVE |
7.5A |
Not Used |
|
REAR A/C |
10A |
RR_ACON |
|
CHILD LOCK |
15A |
Power Child Lock/Unlock |
|
MULTIMEDIA |
25A |
ccNC (connected car Navigation Cockpit), ISG LDC 200W (ISG Low voltage DC/DC Converter) |
|
MODULE4 |
10A |
Inside Mirror ISG LDC 200W (ISG Low voltage DC/DC Converter), ISG LDC 400W (ISG Low voltage DC/DC Converter), OBD (On Board Diagnostic), ccNC (connected car Navigation Cockpit), SAL (Smart Ambient Light), ICC UNIT (In Cabin Camera Unit), ATCU (Air Temperature Control), ATCU Controller, WPC (Wireless Power Charger), 2nd SEAT LH/RH Buckle Indicator External Amplifier (Merdian), 3rd SEAT switch LH/RH, RR_ACON, Drv SEAT, Power seat unit, Trailer Control Module |
|
CLUSTER |
7.5A |
CLUSTER HUD (Head Up Display) |
|
IG3_2 |
10A |
CCU (Communication Central Unit) |
|
RESERVE |
25A |
Not Used |
|
SUNROOF2 |
20A |
Sunroof motor (Rear) |
|
MODULE6 |
7.5A |
P_LBM (Parking Lithum Battery Module), AC Inverter Power Outlet, AC Inverter unit, Head Lamp LH/RH |
|
TAILGATE OPEN |
10A |
Tailgate Latch Actuator |
|
SUNROOF1 |
20A |
Sunroof motor (Front) |
|
MODULE8 |
10A |
Multifunction switch, IMS SW (Intergrated Memory Seat Switch), Power window switch, DRV Passenger Seat switch, 2nd Seat switch LH/RH |
|
MDPS2 |
7.5A |
R-MDPS (Rack-Motor Driven Power Steering) |
|
MODULE1 |
10A |
ccNC (connected car Navigation Cockpit), ISG LDC 200W (ISG Low voltage DC/DC Converter), ISG LDC 400W (ISG Low voltage DC/DC Converter), DCU (Data Connectivity Unit), MKBD (Multimedia Keyboard), BDC (Body Domain Controller), CCU (Communication Central Unit) |
|
P/SEAT PASS1 |
30A |
Passenger Power Seat and Lumbar Support |
|
S/HEATER FRT |
25A |
Driver and Passenger Seat Warmer/Ventilation |
|
WASHER |
15A |
Washer Motor |
|
CHARGER |
10A |
V2LC Unit (HEV) |
|
BDC1 |
10A |
BLE MASTER (Bluetooth Low Energy MASTER), BLE SLAVE (Bluetooth Low Energy SLAVE), UWB (Ultra Wide Band), BDC (Body Domain Controller) |
|
Wireless DCU |
10A |
DCU (Data Connectivity Unit) |
|
RESERVE |
7.5A |
Not Used |
|
AIR BAG1 |
10A |
ISCM (Intergrated Safety Control Module), ODS (Occupant Detection System) |
|
USB CHARGER3 |
15A |
UMM (USB Multi Module) |
|
LDC |
10A |
MKBD (Multimedia Keyboard), CLUSTER, RR_ACON Rear Corner Radar & Front Corner radar, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), WPC (Wireless Power Charger), MKBD (Multimedia Keyboard), HUD (Head Up Display) |
|
P/SEAT RR RH1 |
25A |
2nd LH Power Seat |
|
P/WINDOW RH |
30A |
Power Window Safety ECU, Passenger & Rear RH |
|
MODULE5 |
7.5A |
BDC (Body Domain Controller) |
|
MODULE9 |
10A |
Rear BLOWER Motor Relay Coil, VESS (Virtual Engine Sound System), 2nd & 3rd SEAT Folding switch, Power Tailgate, Drv & Passenger outside door handle touch sensor, Power seat unit ECU (Drv, Passenger, Rear LH, Rear RH), Power window switch DRV, Drv & Passenger outside mirror puddle lamp |
|
SBCM PASS |
20A |
Side Body-zone Control Module Passenger |
|
AMP |
25A |
External Amplifier (Merdian), ISG LDC 400W (ISG Low voltage DC/DC Converter) |
|
USB CHARGER1 |
15A |
UMM (USB Multi Module) |
|
MODULE3 |
10A |
Front View Camera SCM (Steering Column Control Module), ADAS Driving ECU (Advanced Driver Assistance System Driving ECU), Crash Pad Switch, Rear & Frong Corner Radar, ADAS Parking ECU (Advanced Driver Assistance System Parking ECU), AWD ECU (All Wheel Drive ECU), Console Switch, Front Radar, High voltage battery cooling fan Relay Coil |
|
P/SEAT DRV1 |
30A |
Drv Power Seat |
|
P/WINDOW LH |
30A |
Power Window Safety ECU, Drv & Rear LH |
|
AIR BAG2 |
10A |
ISCM (Intergrated Safety Control Module) |
|
DOOR LOCK |
20A |
Door Lock/Unlock Actuator, Fuel Lid Motor |
|
SBCM DRV |
20A |
Side Body-zone Control Module Drv |
|
P/SEAT DRV2 |
10A |
Drv Seat Lumbar Support |
|
START |
7.5A |
BDC (Body Domain Controller), VPC (Vehicle Platform Controller), Start signal (ECU/BDC) |
|
INVERTER |
30A |
AC Inverter unit |
|
P/SEAT RR LH1 |
|
2nd RH Power Seat |

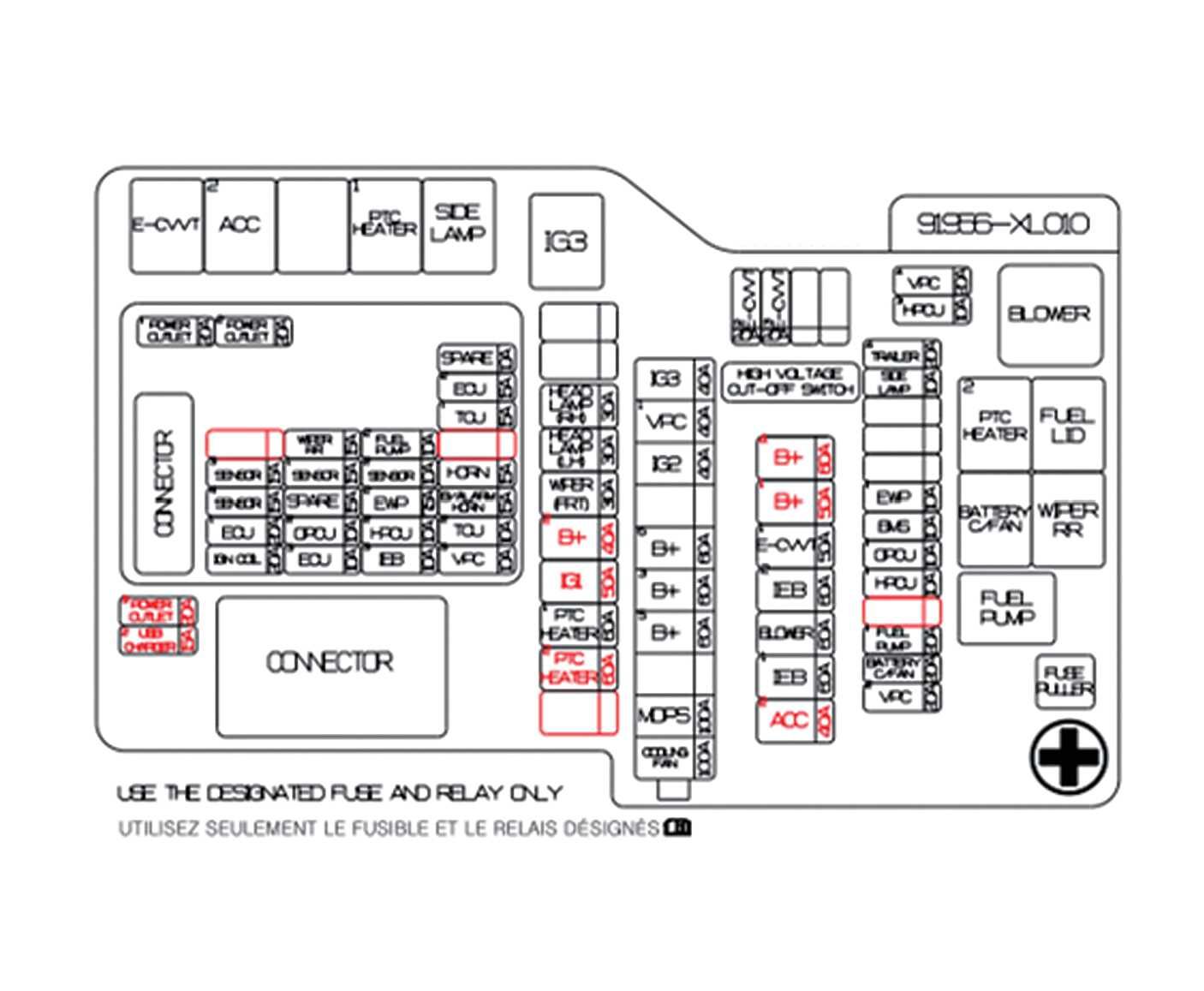

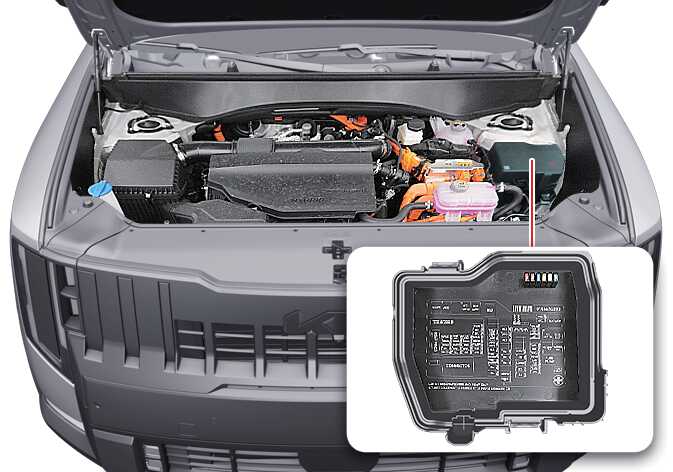

Engine compartment fuse panel
 OLQ2AH125015 |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
RESERVE |
- |
Not Used |
|
RESERVE |
- |
Not Used |
|
HEAD LAMP RH |
S/B LP 30A |
Head Lamp RH |
|
HEAD LAMP LH |
S/B LP 30A |
Head Lamp LH |
|
WIPER FRT |
S/B LP 30A |
Front Wiper |
|
B+2 |
S/B LP 40A |
PDC (Power-net Domain Controller), B+ - IPS (Turn Signal Lamp, Exterior Tail Lamp, Back-up Lamp, Front Fog Lamp) |
|
IG1 |
S/B LP 50A |
<IG1> ER_JB (PCB_BLOCK), IG1 FUSE LIST : EPB3(ICE), IEB3(HEV), ECU3, OPCU2(HEV), EWP2(HEV), HPCU2(HEV), TCU2, VPC3 PDC (Power-net Domain Controller) IG1 FUSE LIST : AIR BAG1, A/BAG IND, E-SHIFTER2, CLUSTER, BDC2, MDPS2, MODULE2, MODULE3, MODULE4, MODULE8 IPS : Haptic Steering Wheel <ACC> ER_JB ACC FUSE LIST : POWER OUTLET1, POWER OUTLET2 PDC (Power-net Domain Controller) ACC FUSE LIST : USB CHARGER3, MODULE1 |
|
PTC1 |
S/B LP 60A |
PTC Heater 1 |
|
PTC2 |
S/B LP 60A |
PTC Heater 2 |
|
RESERVE |
- |
Not Used |
|
B+4 |
S/B LP 60A |
PDC (Power-net Domain Controller) B+ - FUSE LIST : MULTIMEDIA1, MEMORY1, MEMORY2, CHILD LOCK, BDC1, BRAKE SW, CCU, SBCM DRV, SBCM PASS, DR LOCK, TAILGATE OPEN |
|
B+1 |
S/B LP 50A |
PDC (Power-net Domain Controller), B+ - IPS (High Mounted Stop Lamp, Rear Fog Lamp, Interior Tail Lamp, Interior Lamp, Steering Wheel Warmer) |
|
E-CVVT1 |
S/B LP 50A |
ER_JB E-CVVT B+ FUSE LIST : E-CVVT1, E-CVVT2 |
|
EPB2 (ICE) IEB2 (HEV) |
S/B LP 40A (ICE) S/B LP 60A (HEV) |
ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
|
BLOWER |
S/B LP 60A |
Blower Motor |
|
EPB (ICE) IEB (HEV) |
S/B LP 60A |
ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
|
ACC2 |
S/B LP 40A |
ER_JB ACC FUSE LIST : POWER OUTLET3, USB CHARER2 |
|
POWER OUTLET3 |
MICRO 20A |
Console Power Outlet |
|
USB CHARGER2 |
MICRO 15A |
USB Charger (Drv SEAT, Passenger SEAT, Luggage LH, Luggage RH) |
|
E-CVVT2 |
MICRO 20A |
E-CVVT (Electronic-Continuously Variable Valve Timming) |
|
E-CVVT3 |
MICRO 20A |
E-CVVT (Electronic-Continuously Variable Valve Timming) |
|
VACUUM PUMP2 (ICE) |
MICRO 10A |
ESC (ELECTRIC STABILITY CONTROL) (ICE) |
|
A/C2 (ICE) |
MICRO 10A |
ATCU (Air Temperature Control) (ICE) |
|
VPC4 (HEV) |
MICRO 20A |
VPC (Vehicle Platform Controller) (HEV) |
|
HPCU3 (HEV) |
MICRO 10A |
HPCU (Hybrid Power Control Unit) (HEV) |
|
TRAILER4 |
MICRO 20A |
E-Brake |
|
SIDE LAMP |
MICRO 10A |
Side Ground Lighting Lamp |
|
RESERVE |
- |
Not Used |
|
RESERVE |
- |
Not Used |
|
AMS (ICE) |
MICRO 10A |
12V Battery Sensor (ICE) |
|
EWP1 (HEV) |
MICRO 10A |
EWP (Electric Water Pump) (HEV) |
|
BMS (HEV) |
MICRO 10A |
BMS (Battery Management System) (HEV) |
|
OPCU1 (HEV) |
MICRO 10A |
OPU (Oil Pump Control Unit) (HEV) |
|
HPCU1 (HEV) |
MICRO 10A |
HPCU (Hybrid Power Control Unit) (HEV) |
|
RESERVE |
- |
Not Used |
|
FUEL PUMP |
MICRO 20A |
Fuel Pump Motor |
|
VACUUM PUMP1 (ICE) BATTERY C/FAN (HEV) |
MICRO 20A |
Electric Vacuum Pump (ICE), BMS (Battery Management System) (HEV) |
|
VPC2 (HEV) |
MICRO 20A |
VPC (Vehicle Platform Controller) (HEV) |
|
IG3 (HEV) |
MULTI 40A |
ER_JB IG3 FUSE LIST : HPCU3, VPC4 PDC (Power-net Domain Controller) IG3 FUSE LIST : IG3_2, IG3_3, IG3_4 |
|
VPC1 |
MULTI 40A |
VPC (Vehicle Platform Controller) (HEV) |
|
IG2 |
MULTI 40A |
PDC (Power-net Domain Controller) IG2 FUSE LIST : A/C2, REAR A/C, WASHER, MODULE5, MODULE6, SPARE LOAD : Start Solenoid (ICE) |
|
EOP1 (ICE) |
MULTI 40A |
EOP (Electric Oil Pump) (ICE) |
|
B+6 |
MULTI 60A |
ER_JB (PCB_BLOCK) B+ FUSE LIST : IGN COIL, ECU1, INJECTOR (ICE), SENSOR1, SNESOR2, SENSOR3, SENSOR4 (HEV), FUEL PUMP2, A/C1 (ICE), ECU2, TCU1, HORN, B/ALARM HORN |
|
B+3 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ FUSE LIST : SPARE, INVERTER, P/SEAT DRV1, P/SEAT PASS1, P/SEAT RR LH1, P/SEAT RR RH1, S/HEATER FRT, AAF, P/WINDOW LH, P/WINDOW RH, SUNROOF2, E-SHIFTER1, POWER HANDLE, MODULE7 |
|
B+5 |
MULTI 60A |
PDC (Power-net Domain Controller) B+ FUSE LIST : AMP. Wireless DCU, CHARGER, MODULE9, P/SEAT DRV2, AIR BAG2, SUNROOF1, USB CHARGER1 |
|
SPARE |
MULTI 60A |
SPARE |
|
MDPS |
MULTI 100A |
R-MDPS (Rack-Motor Driven Power Steering) |
|
COOLING FAN |
MULTI 100A |
COOLING FAN |
|
RR_JB |
MIDI 150A |
RR_JB (Rear Junction Block), B+ |
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
POWER OUTLET1 |
MICRO 20A |
Front Power Outlet |
|
POWER OUTLET2 |
MICRO 20A |
Luggage Power Outlet |
|
RESERVE |
MICRO 30A |
Not used |
|
SENSOR3 |
MICRO 15A |
CCV (Canister Control Valve) (ICE), OLS (Oil Level Sensor) |
|
SPARE (ICE) SENSOR4 (HEV) |
MICRO 15A |
APP (Active Purge Pump) (HEV) |
|
ECU1 |
MICRO 20A |
ECU (Engine Control Unit) |
|
IGN COIL |
MICRO 20A |
Ignition Coil 1~4 |
|
WIPER RR |
MICRO 15A |
Rear Wiper |
|
SENSOR1 |
MICRO 15A |
O2 Sensor |
|
INJECTOR1 (ICE) SPARE (HEV) |
MICRO 15A |
Injector 1~4 (ICE) |
|
SPARE (ICE) OPCU2 (HEV) |
MICRO 10A |
OPU (Oil Pump Control Unit) (HEV) |
|
ECU3 |
MICRO 10A |
ECU (Engine Control Unit) |
|
FUEL PUMP2 |
MICRO 10A |
Fuel Pump Relay Coil |
|
SENSOR2 |
MICRO 10A |
OCV (Oil Control Valve), VOPS (Variable oil pump), PCSV (Purge Control Solenoid Valve), ELCM (Evaporation Leak Check Module), FTIV (Fuel Tank Isolation Valve), Cooling Fan, RCV (Recirculation Control Valve) |
|
SPARE (ICE) EWP2 (HEV) |
MICRO 7.5A |
EWP (Electric Water Pump) (HEV) |
|
SPARE (ICE) HPCU2 (HEV) |
MICRO 10A |
HPCU (Hybrid Power Control Unit) (HEV) |
|
EPB3 (ICE) IEB3 (HEV) |
MICRO 10A |
ESC (ELECTRIC STABILITY CONTROL) (ICE), IEB (Integrated Electric Brake) (HEV) |
|
A/C1 (ICE) SPARE (HEV) |
MICRO 10A |
Compressor |
|
ECU2 |
MICRO 15A |
ECU (Engine Control Unit) |
|
TCU1 |
MICRO 15A |
TCU (Transmission Control Unit) |
|
RESERVE |
MICRO 10A |
Not used |
|
HORN |
MICRO 15A |
Horn LH, Horn RH |
|
B/ALARM HORN |
MICRO 15A |
Burglar Alarm Horn |
|
TCU2 |
MICRO 10A |
TCU (Transmission Control Unit) |
|
VPC3 |
MICRO 10A |
VPC (Vehicle Platform Controller) (HEV) |
The following table shows the relay type:
|
Relay Name |
TYPE |
|---|---|
|
E-CVVT |
H/C MICRO RELAY 4P |
|
ACC2 |
H/C MICRO RELAY 4P |
|
RESERVE |
- |
|
PTC1 |
H/C MICRO RELAY 4P |
|
SIDE LAMP |
H/C MICRO RELAY 4P |
|
START (ICE) IG3 (HEV) |
H/C MICRO RELAY 4P |
|
PTC2 |
H/C MICRO RELAY 4P |
|
FUEL LID (HEV) |
H/C MICRO RELAY 4P |
|
VACUUM PUMP (ICE) Battery Cooling Fan (HEV) |
H/C MICRO RELAY 4P |
|
WIPER RR |
H/C MICRO RELAY 5P |
|
FUEL PUMP |
H/C MICRO RELAY 4P |
|
BLOWER |
MINI RELAY 4P |
The following table shows the relay type:
|
Fuse Name |
Fuse Rating |
Circuit Protected |
|---|---|---|
|
RESERVE |
MICRO 15A |
Not used |
|
E-LSD |
MICRO 20A |
Electronic Limited Slip Differential |
|
P/SEAT RR LH2 |
MICRO 30A |
2nd row LH Power Seat and Actuator |
|
POWER TAIL GATE |
MICRO 40A |
PTGM (Power Tail Gate Module) |
|
S/HEATER RR RH |
MICRO 25A |
2nd row SEAT Heater |
|
TRAILER3 |
MICRO 25A |
CTM (Can Trailer Module) |
|
TRAILER1 |
MICRO 20A |
Trailer Caravan B+ |
|
P/SEAT RR RH2 |
MICRO 30A |
2nd row RH Power Seat and Actuator |
|
COMBI LAMP LH |
MICRO 10A |
Rear Combi Lamp LH STOP & Tail Lamp, B+ |
|
RESERVE |
MICRO 15A |
Not used |
|
4WD |
MICRO 20A |
AWD (All Wheel Drive), ECU |
|
RESERVE |
MICRO 15A |
Not used |
|
RESERVE |
MICRO 15A |
Not used |
|
RESERVE |
MICRO 15A |
Not used |
|
COMBI LAMP RH |
MICRO 10A |
Rear Combi Lamp RH STOP & Tail Lamp, B+ |
|
AMS2 (HEV) |
MICRO 10A |
12V Battery sensor |
|
TRAILER2 |
MICRO 20A |
CTM (Can Trailer Module) |
|
BLOWER RR |
MICRO 40A |
Rear Blower Motor |
|
REAR HEATED |
MICRO 40A |
Rear Glass Heated |
|
AUX BATT |
MICRO 50A |
PLBM (Parking Lithium Battery Module) |
|
3RD S/HEATER |
MICRO 30A |
3rd row SEAT Heater |

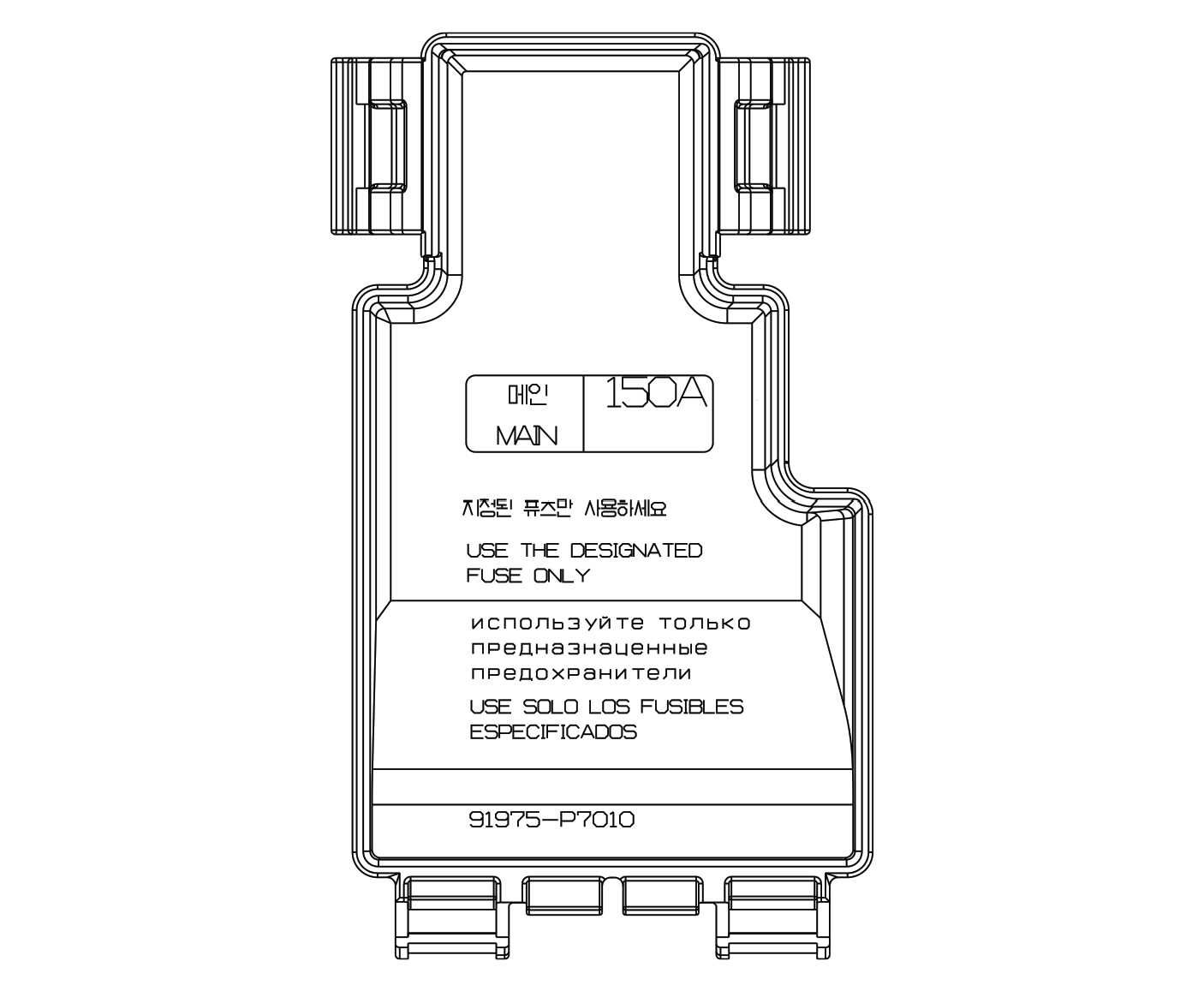

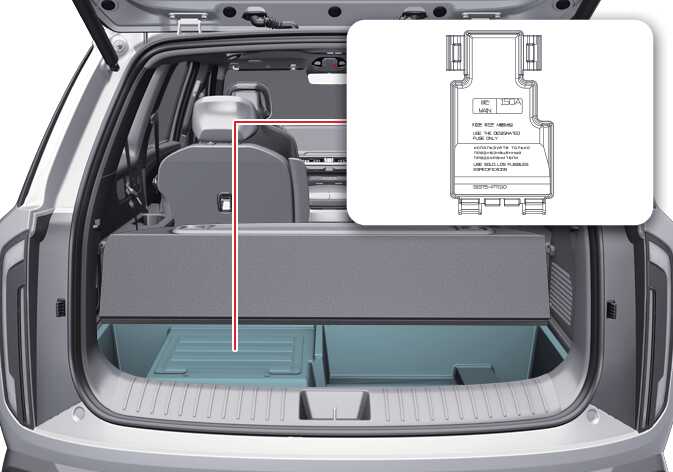

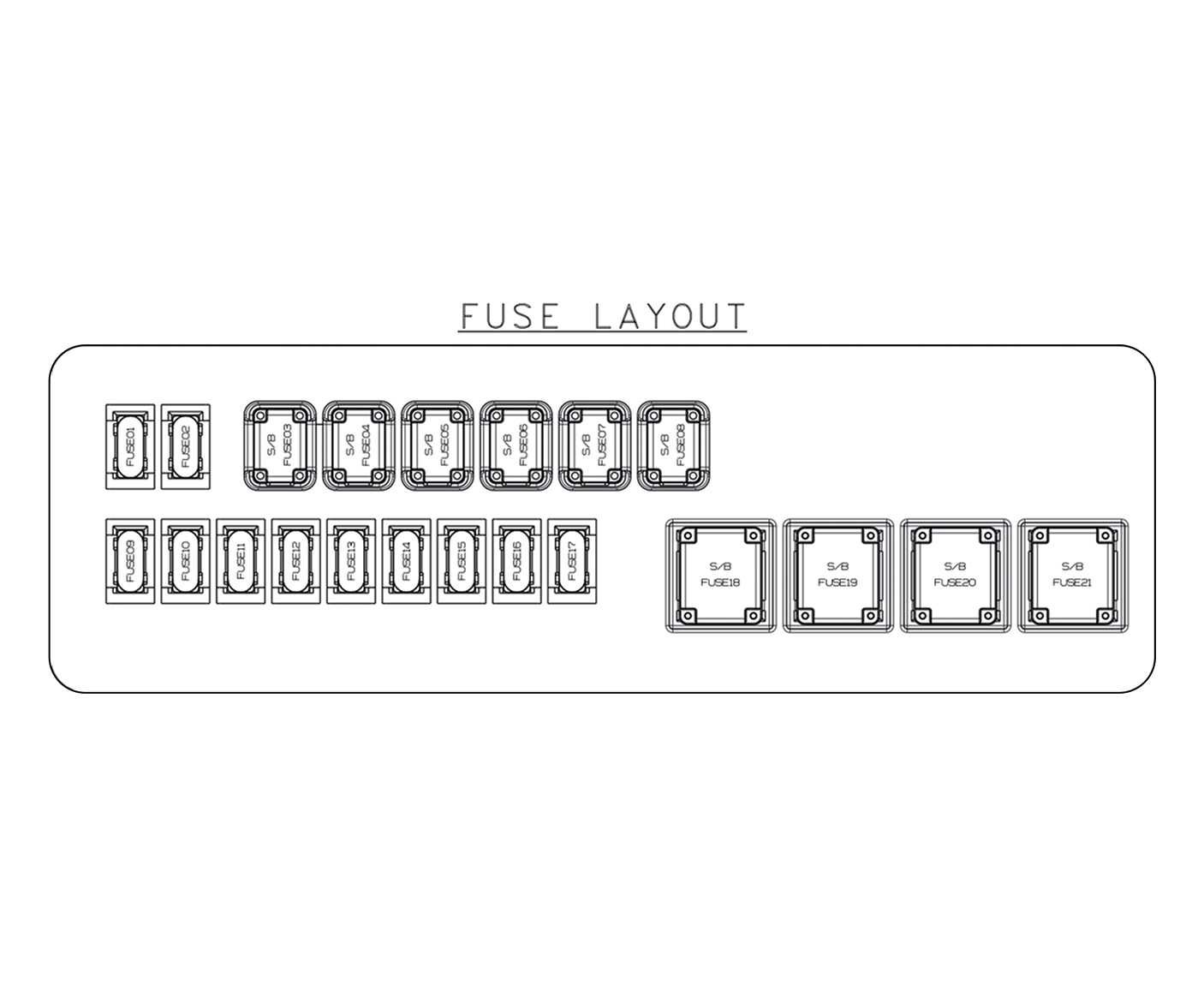

Engine compartment fuse panel (12V battery terminal cover)
 OLQ2AH125018 |
