Forward Collision-avoidance Assist (FCA) (Sensor Fusion)

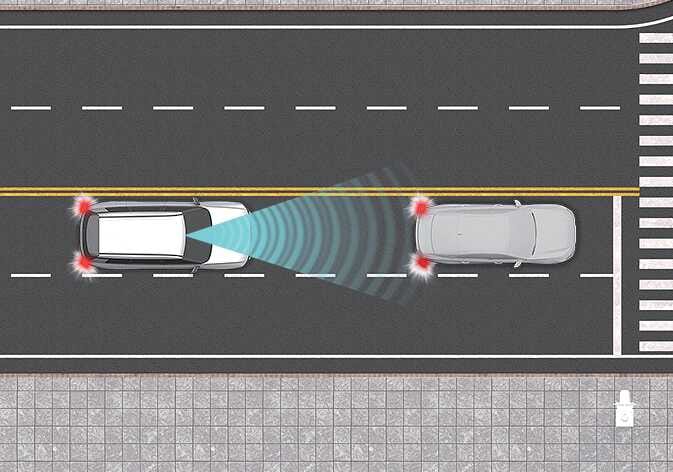

Basic function

OLQ2A105004

Forward Collision-avoidance Assist can detect a vehicle, a motorcyclist, pedestrian, or cyclist ahead on the road and may warn you of a possible collision with a warning message on the instrument cluster and a warning sound. Also, Forward Collision-avoidance Assist may assist with braking your vehicle to help reduce collision speed or avoid a collision.

Forward Collision-avoidance Assist can detect vehicles ahead of you and in adjacent lanes even at high speeds. If the driver makes a lane change at those speeds, your vehicle may apply emergency braking to mitigate or avoid a collision.: (if equipped)

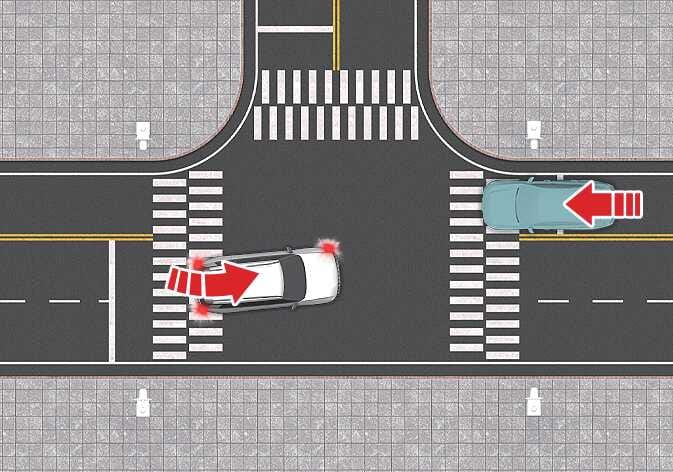

Junction Turning function

OLQ2AH105003

When you turn left at a crossroad with the turn signal ON, Junction Turning can apply emergency braking to help you avoid a collision with a vehicle, motorcyclist, or cyclist in an oncoming lane.

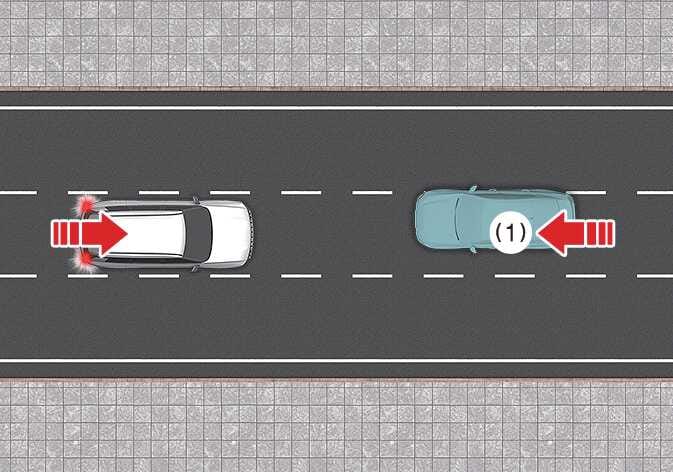

Direct Oncoming function

OLQ2A105006

  1. Oncoming vehicle

Direct Oncoming function can help reduce the speed of a collision when it detects a vehicle or motorcyclist approaching from the opposite direction.

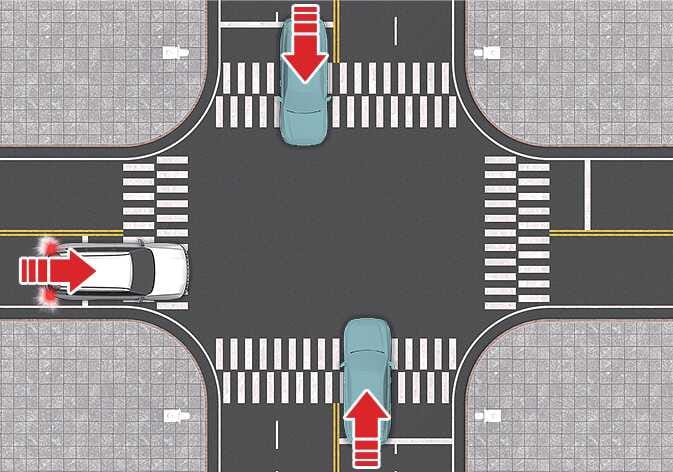

Junction Crossing function: (if equipped)

OLQ2A105007

Junction Crossing function can apply emergency braking to help mitigate or avoid a collision with oncoming vehicles on your left or right side when you cross an intersection.

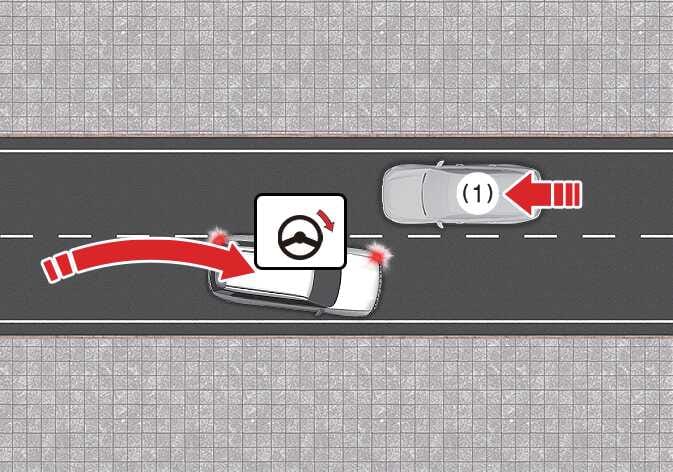

Lane-Change Oncoming function: (if equipped)

OLQ2A105008

  1. Oncoming vehicle

When changing lanes, Lane-Change Oncoming can assist with your steering to help mitigate or avoid a collision with an oncoming vehicle or motorcyclist.

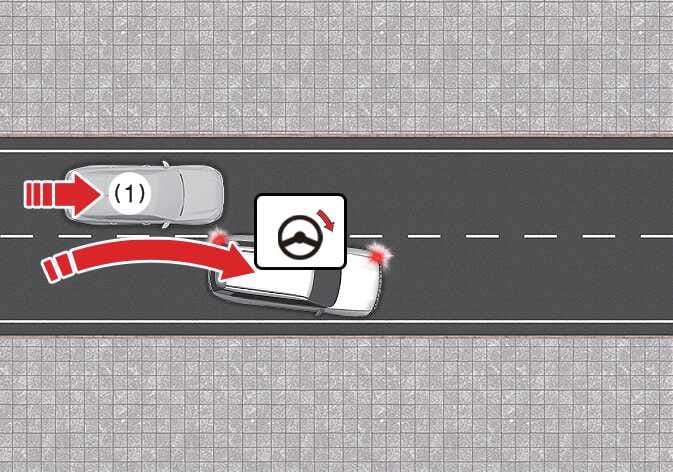

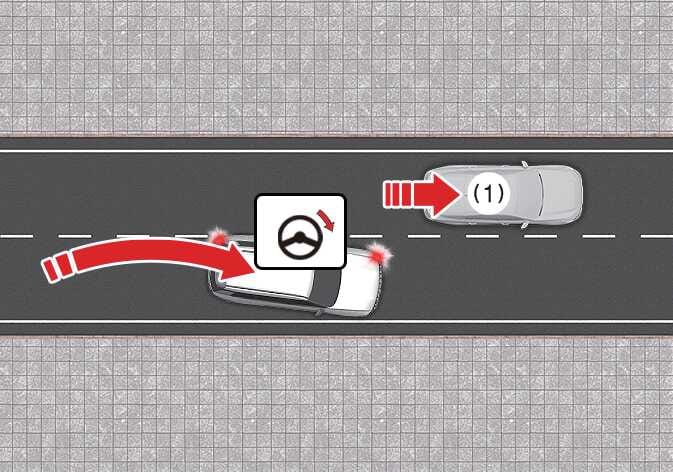

Lane-Change Side function: (if equipped)

OLQ2A105009
OLQ2A105010

  1. Approaching car from side

When changing lanes, Lane-Change Side can assist with your steering to help mitigate or avoid a collision with vehicles or motorcyclists in the next lane.

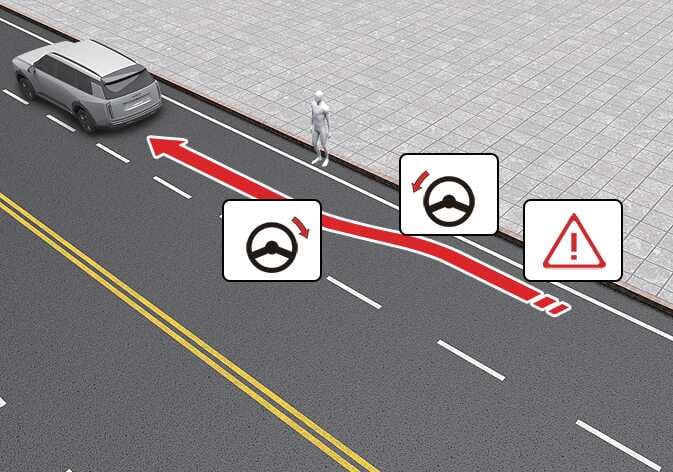

Evasive Steering Assist function: (if equipped)

OLQ2A105011

  • Driver Steering Assist

    If your vehicle detects a possible collision with a vehicle, pedestrian, or cyclist ahead, Evasive Steering Assist can assist you in steering to avoid the collision.

  • Evasive Steering Assist

    Evasive Steering Assist can help mitigate or avoid a collision with a pedestrian or cyclist in the same lane ahead of you. If your vehicle detects a risk of collision, Evasive Steering Assist can warn you and assist your steering if you move the steering wheel.

Detection sensor

Please refer to Detecting sensor(s) for the applicable sensors and their locations.

WARNING

  • Never damage or disassemble the detection sensor or sensor assembly.

  • If the detection sensors have been replaced or repaired, have your vehicle inspected by an authorized Kia dealer.

  • If the vehicle experiences an impact to or around the radar, Forward Collision-avoidance Assist may not operate properly, even if the instrument cluster does not display a warning message. Have your vehicle inspected by an authorized Kia dealer.

  • Never tint or install any accessories or stickers on the windshield.

  • Be extremely careful to keep the front view camera dry.

  • Never place any reflective objects (for example, white paper or a mirror) over the instrument cluster.

  • Do not place any objects near or install any accessories on the windshield. This can affect the performance of the climate control system’s defogging and defrosting function, which may prevent the Driver Assistance systems from operating.

  • Do not apply a license plate frame or objects (such as a bumper sticker, film, or a bumper guard), near the front radar cover.

  • Always keep the front radar cover clean and free of dirt and debris.

    Use only a soft cloth to wash the vehicle. Do not spray pressurized water directly on the sensor or sensor cover.

  • If you apply paint on or change the front, front corner and/or rear corner radar sensor cover, Forward Collision-avoidance Assist may not function properly.

    Use only Kia genuine parts or those of an equivalent standard with proven quality and performance to repair or replace the radar sensor covers.

  • The function may not work properly if the bumper was replaced, or the areas of the front corner radar or rear corner radar were damaged or paint was applied.

  • If you install a trailer or carrier, this may adversely affect the performance of Forward Collision-avoidance Assist and prevent it from operating properly.
